Description

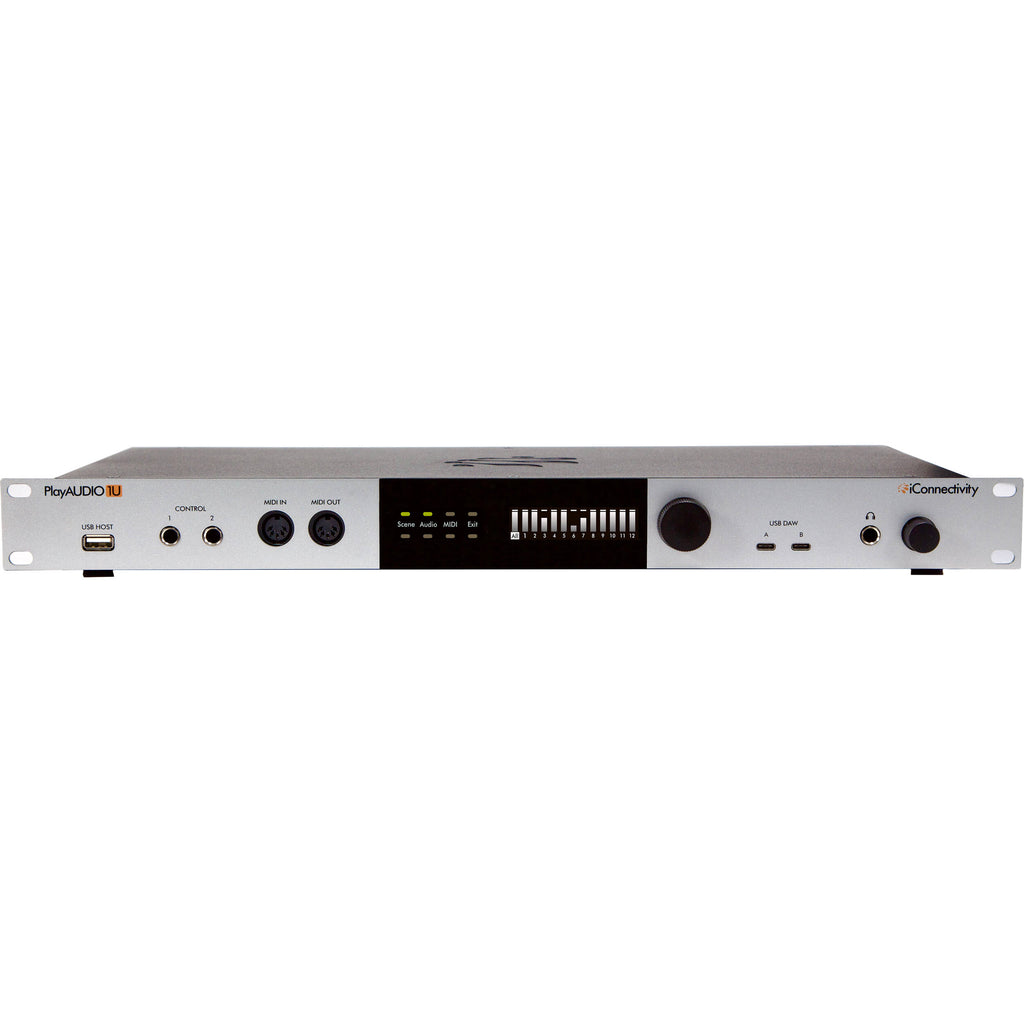

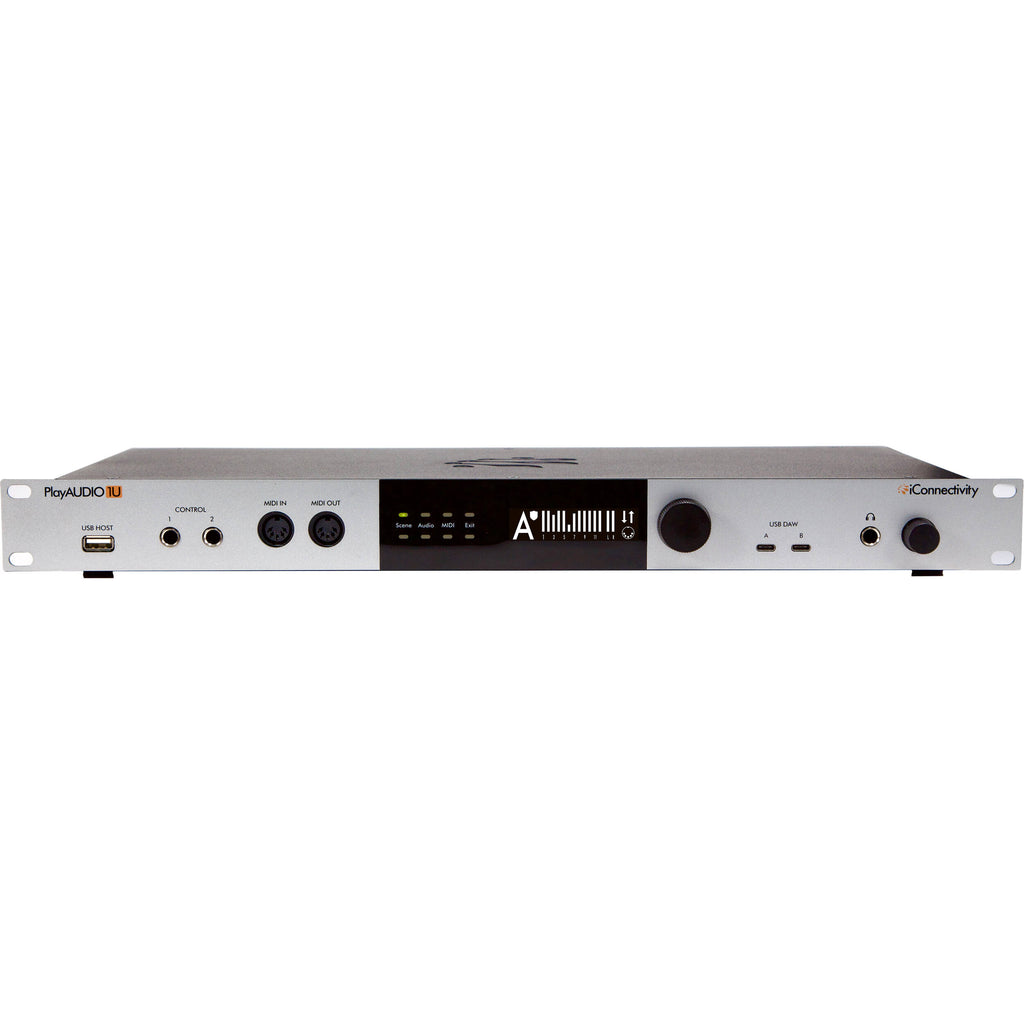

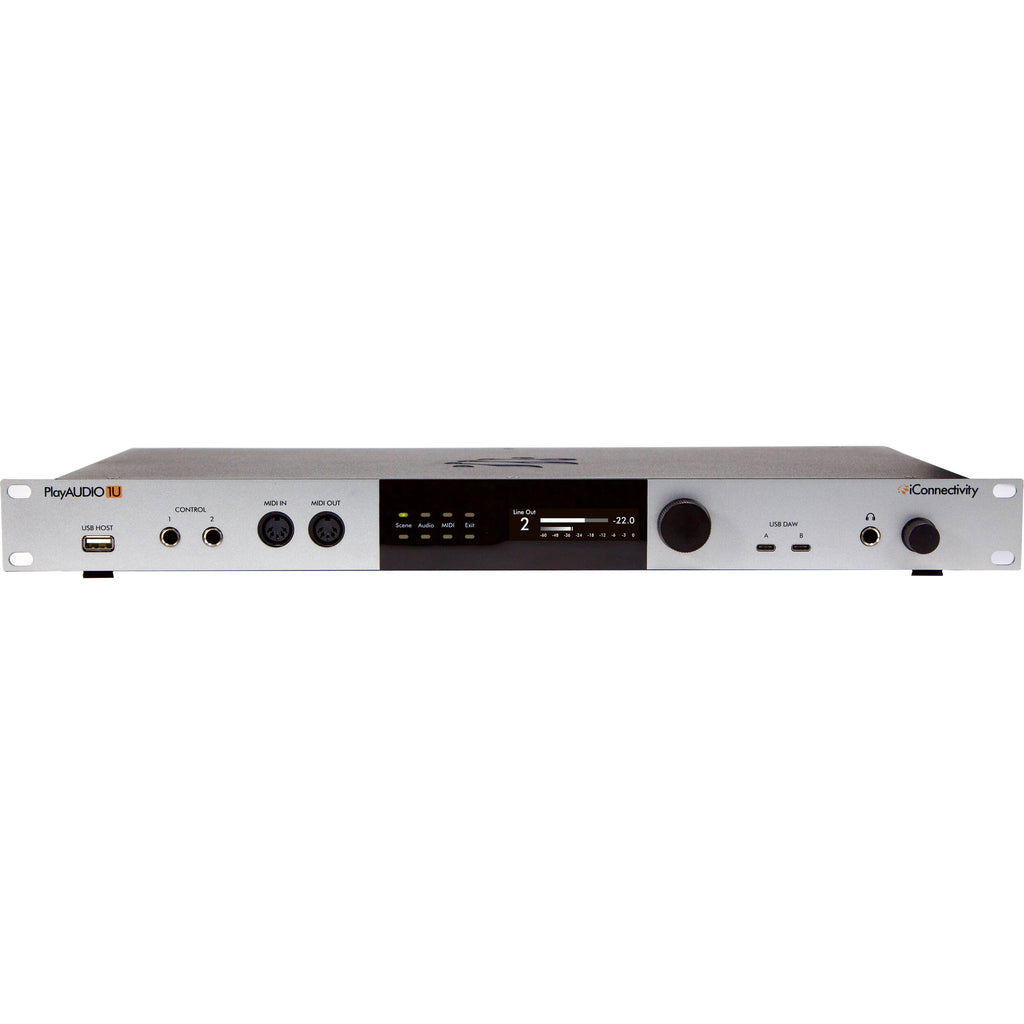

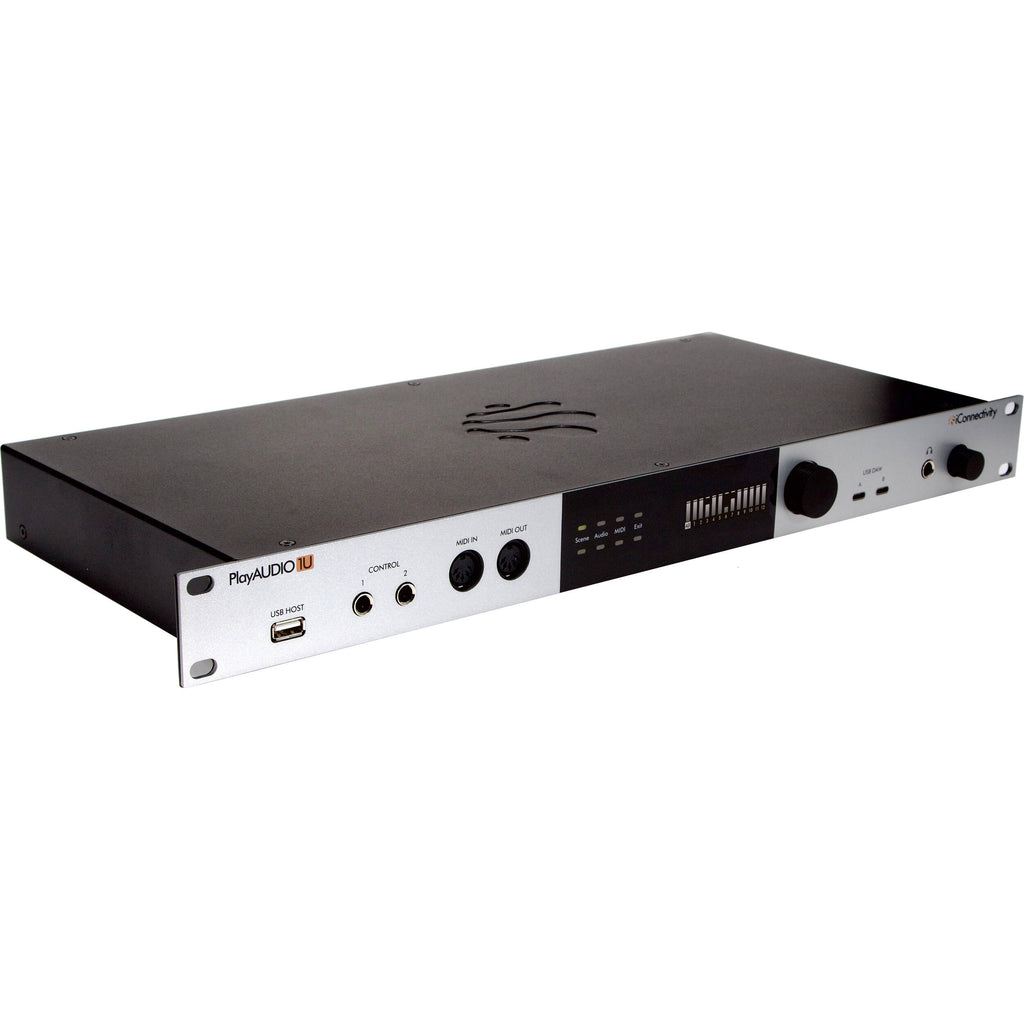

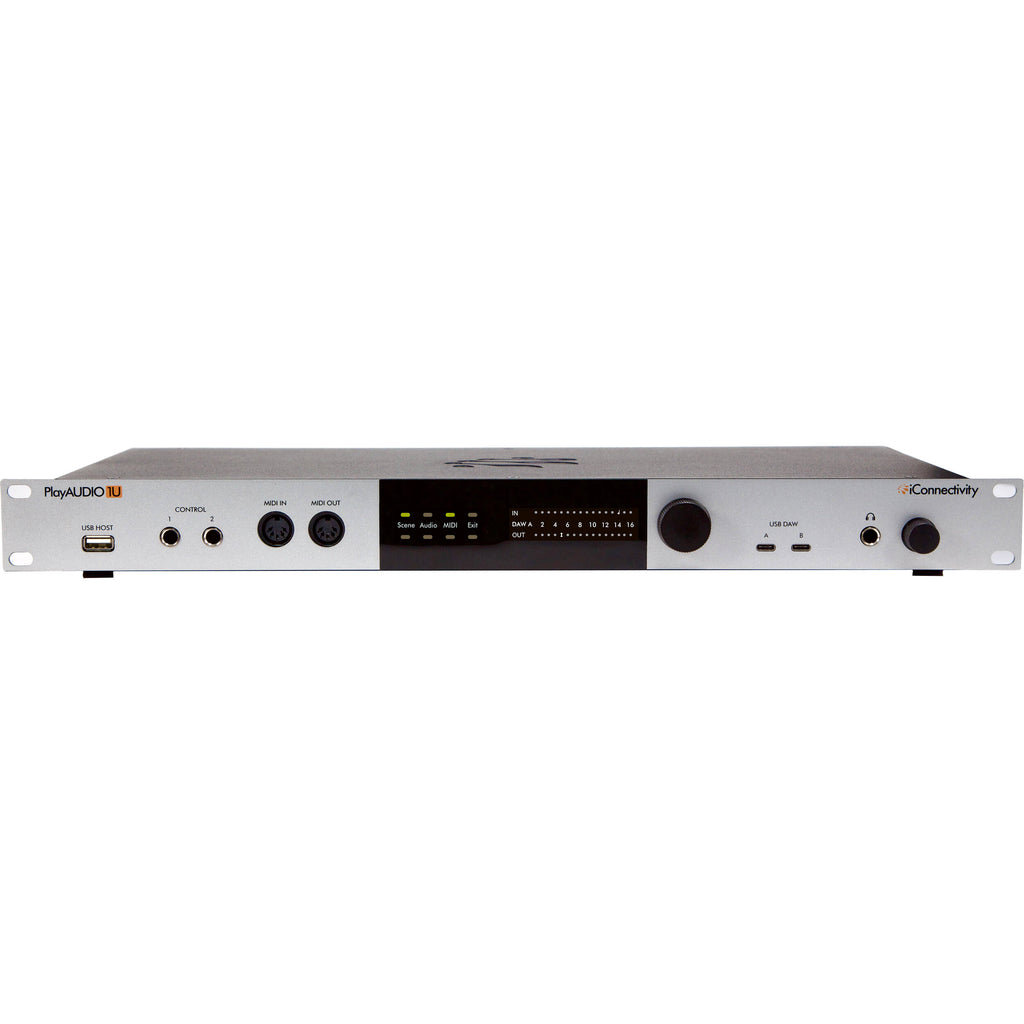

iConnectivity PlayAUDIO1U Overview
The iConnectivity PlayAUDIO1U is a USB-C audio/MIDI interface designed to provide seamless switching between two computer setups for musicians, bands, and audio engineers in concert venues and live stage applications. It supports resolutions up to 24-bit / 96 kHz and is class compliant for plug-and-play operation.
With two USB-C ports for simultaneous connection of two computers, the interface offers a powerful redundancy/failover protection system. Should your main computer fail, PlayAUDIO1U seamlessly switches to the backup computer�so fast that you and your audience won't even notice. Switching can also be done manually via the OLED touchscreen or a footswitch (available separately) connected to one of the Control In ports.
The PlayAUDIO1U features twelve balanced XLR-M output connectors and one stereo 1/4" TRS headphone jack. A front-panel, USB-A port allows for easy connection of MIDI keyboard controllers and/or sound modules. There is also a 5-pin DIN MIDI interface on the front panel and an RJ45 port on the back panel for MIDI-over-Ethernet functionality. Both MIDI and audio routing is preserved when switching between computers. PlayAUDIO1U ships with the Auracle software for quick configuration of the interface.
- 2 USB-C ports for connecting two computers
- High-resolution audio with up to 24-bit / 96 kHz D/A conversion
- Automatic and manual computer-switching modes for lightning-fast switching between connected computers
- 12 panel-reinforced balanced XLR-M outputs
- Comprehensive audio mixing and routing between connected computers and analog XLR outputs
- 1/4" TRS stereo headphone output with dedicated control for convenient headphone monitoring
- 2 1/4" TRS jacks allow for connecting two-button, control footswitches with selectable input/outputs that can be mapped to MIDI functions, control over numerous functions on the interface, and/or sending control messages to compatible devices
- USB-A on front panel port supports up to 8 MIDI controllers and/or modules
- 5-pin DIN MIDI input and output ports on front panel (1-in / 1-out)
- RJ45 port for MIDI over Ethernet provides rugged, long-distance MIDI connections for up to 22 MIDI devices
- Interactive OLED touchscreen display and 2 rotary encoders provide full manual control of level/gain and configuration and status information
- Integrated 48V phantom-power protection on XLR outputs prevents accidental damage when plugging the interface directly into consoles or stage boxes
- Audio Protection prevents unwanted noise from corrupt audio sources/files from making it into the audience
- MIDI learn from external MIDI devices to control key functions on the interface
- Auracle 2.0 software enables you to tailor the PlayAUDIO1U's settings to your exact needs
- Built-in 100-240 VAC universal power supply with industry-standard IEC power connection
- 1 RU ready-to-tour, rackmountable chassis
- Big Fish Audio is a developer and distributor of premium virtual instruments, samples, and loop content. iConnectivity includes a special sampler of Big Fish Audio samples and loops that's perfect to jumpstart or augment your production when you register your iConnectivity audio interface.
Ableton:
- Ableton Live Lite is a fantastic music creation software and also live performance tool. Ableton Live Lite is available upon registration of your PlayAUDIO1U.
In the Box
- iConnectivity PlayAUDIO1U Dual USB-C Playback Audio/MIDI Interface
- 2 x USB-C to USB-C Cable (Black and White)
- USB-C Female to USB-A Male Adapter
- Set of 4 Rubber Feet
- IEC Power Cable
- Limited 1-Year Manufacturer Warranty
iConnectivity PlayAUDIO1U Specs
| Channels of I/O |
Analog:
0 Input / 12 Outputs |
| Maximum Sampling Rate |
96 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
12x XLR 3-Pin Balanced Line Output
1x 1/4" TRS Headphone Output |
| Digital Audio I/O |
No
|
| Host Connection |
2x USB-C (Class-Compliant)
|
| OS Compatibility |
macOS 10.11 or Later
Windows 10 to 11 9.3.5 or Later 8 or Later |
| Power Requirements |
AC Input, USB Bus Power
|
| Channels of I/O |
Analog:
0 Input / 12 Outputs |
| Built-In DSP |
No
|
| Maximum Sampling Rate |
96 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
| Built-In Microphone |
No
|
| Expansion Slots |
No
|
| Pad |
No
|
| Analog Audio I/O |
12x XLR 3-Pin Balanced Line Output
1x 1/4" TRS Headphone Output |
| Phantom Power |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
2x USB-C (Class-Compliant)
|
| Host Connection Protocol |
Not Specified by Manufacturer
|
| USB (Non-Host) |
1x USB-A (MIDI I/O)
|
| Sync I/O |
No
|
| Network I/O |
1x RJ45 Ethernet (MIDI I/O)
|
| MIDI I/O |
1x DIN 5-Pin Input
1x DIN 5-Pin Output |
| Other I/O |
2x 1/4" TRS Control In/Out (Front Panel)
|
| Wireless |
No
|
| Maximum Output Level |
16 dBu
|
| Headphone Output Power |
100 mW per Channel into 32 Ohms
|
| Dynamic Range |
Digital D/A Converters:
115 dB |
| SNR |
XLR Line Outputs:
115 dB (at 1 kHz, 22 Hz to 22 kHz, A-Weighted)) 1/4" Headphone Outputs: 110 dB (at 1 kHz, 22 Hz to 22 kHz, A-Weighted)) |
| THD+N |
XLR Line Outputs:
-112 dB (at 1 kHz, 22 Hz to 22 kHz, A-weighted)) 1/4" Headphone Outputs: -100 dB (at 1 kHz, 22 Hz to 22 kHz, A-weighted)) |
| Sample Rates |
44.1 / 48 / 88.2 / 96 kHz
|
| Bit Depths |
24-Bit
|
| Media/Memory Card Slot |
No
|
| OS Compatibility |
macOS 10.11 or Later
Windows 10 to 11 9.3.5 or Later 8 or Later |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Auracle Functionality: Remote Control |
| Power Requirements |
AC Input, USB Bus Power
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz (1 A)
|
| Power Consumption |
24 W
|
| Rackmount Size |
1 RU
|
| Dimensions |
19 x 7.81 x 1.48" / 48.3 x 19.84 x 3.76 cm
|
| Weight |
8.7 lb / 3.9 kg
|
| Package Weight |
8.835 lb
|
| Box Dimensions (LxWxH) |
25.3 x 9.9 x 4.6"
|
