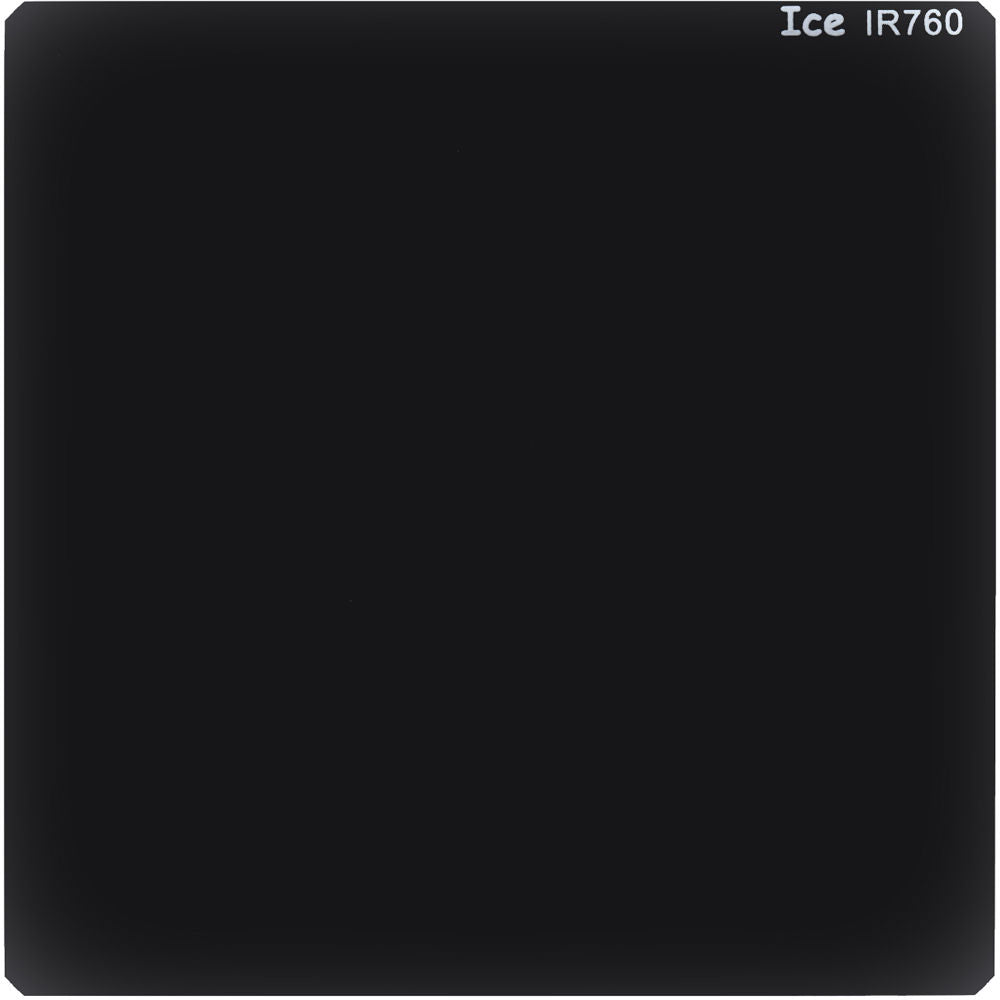

Ice ICE-760-100 Overview
The Ice 100 x 100mm HB760 Infrared Filter is compatible with filter holders that can accommodate 100mm-wide, 2mm-thick filters. It is designed to help capture images of how a subject reflects or transmits infrared light.
Infrared light waves occupy the space in the electromagnetic spectrum behind visible light due to their longer wavelengths. Many surfaces and materials react to or emit infrared light waves differently than visible light waves, which provides the potential for photographs of subjects or subject properties that are otherwise invisible to the human eye. Such images require an infrared-sensitive medium such as infrared film or a digital photographic sensor, which may be more effective when used without the infrared-blocking filters that are frequently built over them.
Conventional light sources such as the sun, photographic strobes, or incandescent lighting may be used to provide infrared illumination. However, because infrared films or digital photographic sensors can be more sensitive to the relatively higher energy and shorter-wavelength visible light those sources also emit, the effects of infrared light can be otherwise obscured. This Ice 100 x 100mm HB760 Infrared Filter makes it possible to capture images of how subjects are illuminated by infrared light by blocking ultraviolet, visible, and near-infrared light waves 760nm or less from the lens it is mounted onto.
This filter is constructed from optical glass for clarity as well as color fidelity.
- Compatible with filter holders that can accommodate rectangular filters that are 100mm wide and 2mm thick
- Designed for use with infrared film or digital camera sensors; acts by filtering out near-infrared, visible, and ultraviolet light
- Allows infrared light waves at 760nm or above to pass through
- Effective for infrared films or other media sensitive to infrared wavelengths 760nm or above
- Noncoated and constructed from optical glass for clarity
- Filter factor of approximately 1000x reduces exposure by about 10 stops
- Plastic filter case for storage and transport
![]()
UPC: 826635842682
Ice ICE-760-100 Specs
| Transmission Range | Above 760 nm |
| Density | 3.0 (10-Stop) |
| Rectangular Size | 3.94 x 3.94" / 100.0 x 100.0 mm |
| Filter Thickness | 0.08" / 2 mm |
| Filter Material | Glass |
Packaging Info
| Package Weight | 0.265 lb |
| Box Dimensions (LxWxH) | 4.55 x 4.5 x 0.7" |
