iBasso DX340 Portable Hi-Res Digital Audio Player (Titanium)

Roll over image to zoom in

iBasso DX340 Portable Hi-Res Digital Audio Player (Titanium)


	₹ 356880.0 includes GST and import duties.
	B2B customers can avail ₹ 54424.2 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	iBasso
SKU:	7440863068245
MPN:	IBS-DX340-TI

Share this product

iBasso DX340 Overview

Designed for musical purists and tinkering audiophiles alike, the DX340 Portable Hi-Res Digital Audio Player from iBasso is a versatile high-end mobile digital audio player (or DAP) that allows for customization while producing pristine audio clarity. For audiophile-level detail, DX340 is equipped with 128 8E PWM DACs, which are 4 sets of 16 discrete cascaded 8E PWM-DACs per channel (L+, L-, R+, R-). This achieves accurate decoding and a THD+N level of -119 dB. These DACs are supported by an FPGA-Master 3.0 audio system that works with a Snapdragon 665 SoC for PCM 32-bit / 768 kHz and Native DSD512 playback. The audio player can be customized with swappable AMP cards and powered by a sophisticated dual-battery system. All of this and more in a premium titanium chassis with 6" AMOLED display.

FPGA-Master 3.0 Audio System

At the heart of the DX340 is iBasso's FPGA-Master 3.0 audio system, which works directly with the Snapdragon 665 SoC and its 8GB of RAM for incredibly accurate timing and seamless signal processing. The system directly requests audio from the SoC to maintain signal integrity and synchronize and generate all audio clocks using dual Accusilicon femtosecond oscillators. This allows for a synchronized single clock source. The system also incorporates a harmonic algorithm that makes odd and even harmonic adjustment possible. In the end, all components of the system work to come together for a flawless listening experience.

Customizable Sound

The bundled AMP15 card can be easily swapped out with other optional AMP1x series AMP cards, letting you customize the DX340 to your personal preferences. One example is the AMP16, which provides the warmth of tube-based amplifiers. The default AMP15 that's included has eight BUF634 amplifiers to support an optional 12 VDC power supply. When used in this way, amp power goes from +/- 8 to 12V, and unlocks Super Gain Mode. Under Super Gain Mode, output power can go up to 2150mW + 2150mW at 32 ohms, making the DX340 compatible with demanding headphones and IEMs.

Dual Battery Design

Offering a sophisticated power management system, the DX340 features a dual battery design. The system is made to power the digital and analog components separately, each with an independent charging system. This is meant to mitigate signal interference and maximize the purity of your audio sources. To ease battery management, a single indicator is provided to cover both charging and power monitoring statuses. As an added feature to preserve the life of this system, if you pair the DX340 with adequate USB-based power, the internal batteries will be bypassed to only run on external power. Together, both batteries supply the DX340 with up to 11 hours of playback.

Broad Connectivity

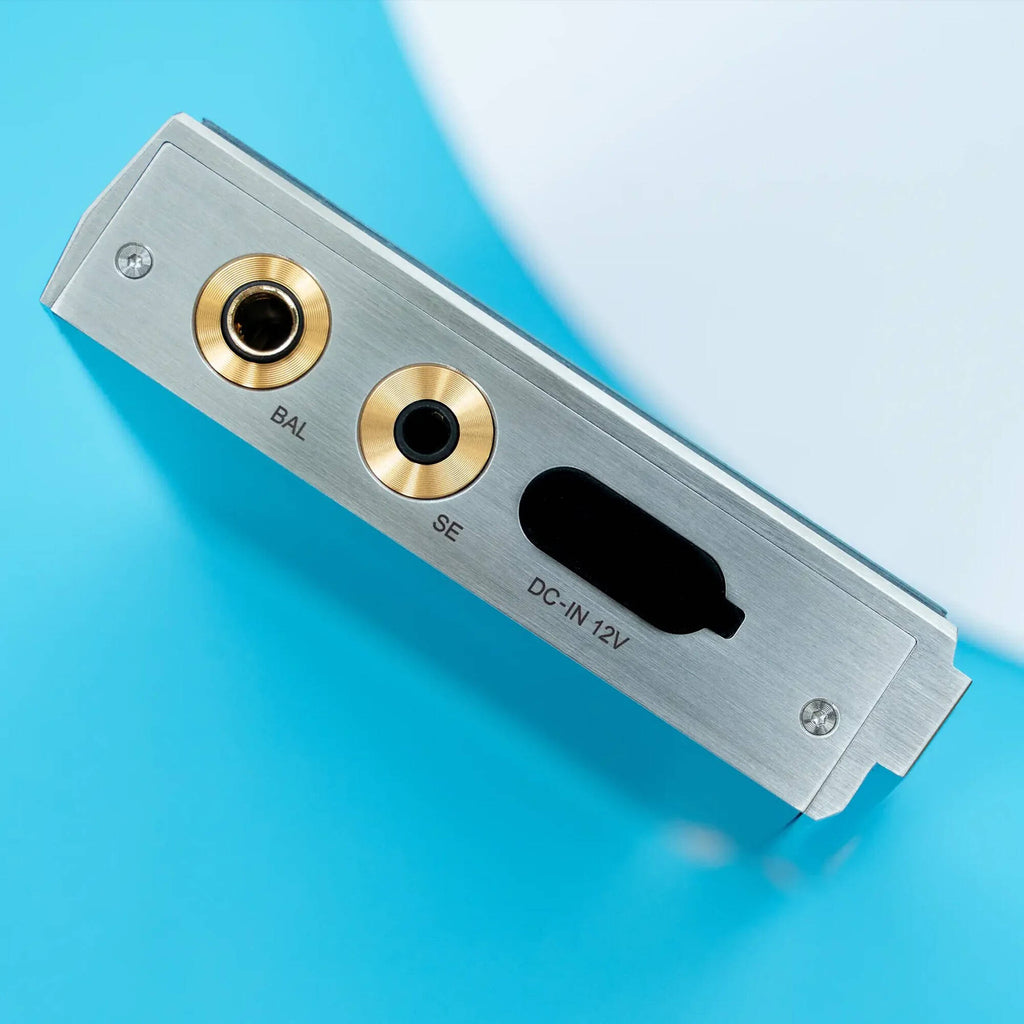

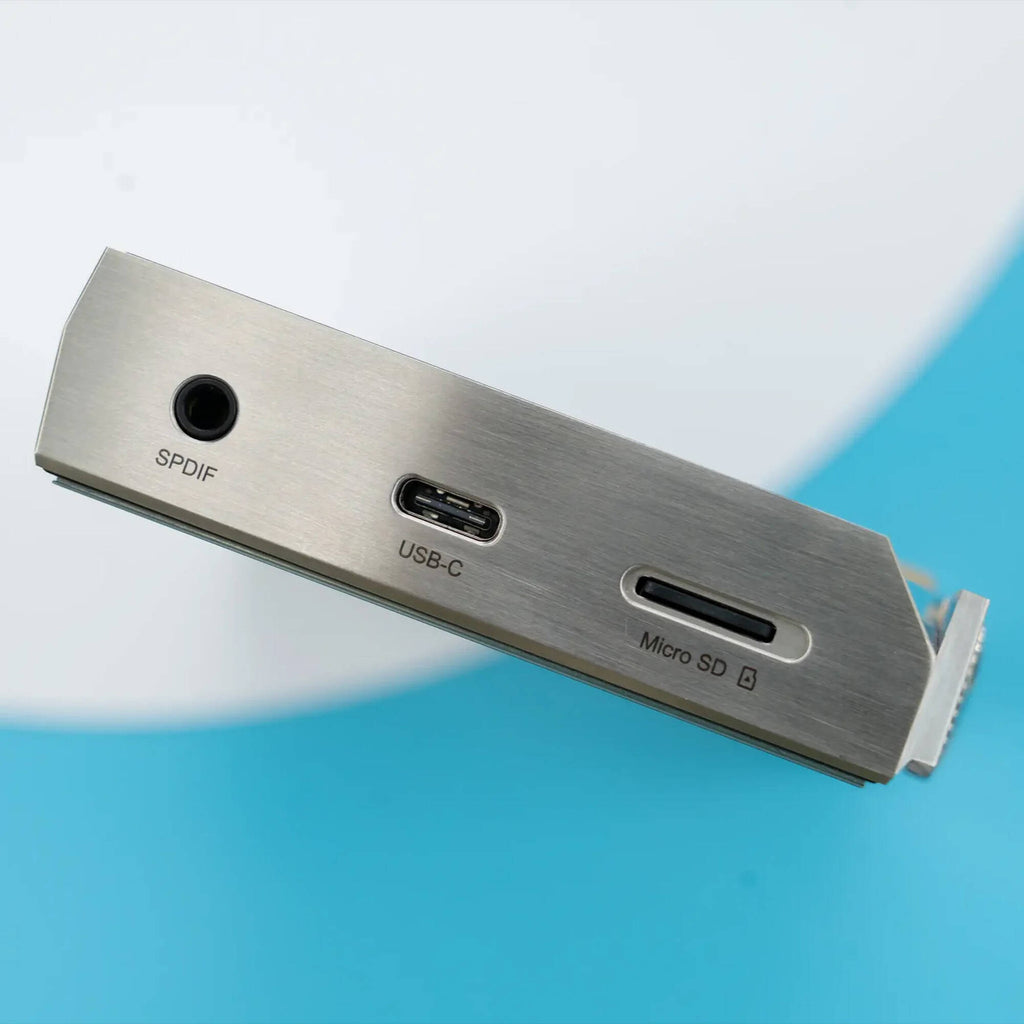

You have multiple options when it comes to enjoying your music on the go with the DX340. You can choose wired solutions using the DAP's single-ended 3.5mm port, balanced 4.4mm port, or 3.5mm coaxial (USB OTG) output. When used with a PC as a USB DAC, you can enjoy ultralow latency in movies and games with support for PCM 32-bit/768 kHz and Native DSD512 audio. The DX340 also offers wireless streaming options using Bluetooth 5.0 or dual-band 2.4/5 GHz Wi-Fi 5 (802.11ac).

Additional Features

Dual AK4499EX DAC
256GB of UFS 2.1 high-speed internal storage
MicroSD card slot supports cards up to 2TB in size
Protective genuine leather case included

Items Included

iBasso DX340 Portable Hi-Res Digital Audio Player (Titanium)
AMP15 Amplifier Card
12V External Power Adapter
USB-C Cable
Coaxial Cable
Burn-In Cable
Genuine Leather Case
Screen Protector
Limited 1-Year Manufacturer Warranty

Additional Resources

No additional resources available

iBasso DX340 Specs

Key Specs

Supported Formats	AAC / AIFF / ALAC / APE / DSD / DXD / FLAC / MP3 / OGG / WAV / WMA
Amplifier	128x 8E PWM 2x AK4499EX
Volume Control	Wheel
Internal Storage	128 GB

Media Support

Supported Formats

AAC / AIFF / ALAC / APE / DSD / DXD / FLAC / MP3 / OGG / WAV / WMA

Audio

Amplifier	128x 8E PWM 2x AK4499EX
Volume Control	Wheel

Connectivity

Media/Memory Card Slot	Single Slot: microSD/microSDHC/microSDXC
Internal Storage	128 GB

Power

Power I/O

1x USB-C Input

Packaging Info

Package Weight	2.58 lb
Box Dimensions (LxWxH)	8.6 x 5.3 x 4"
