| ₹ 55690.0 includes GST and import duties. | |
| B2B customers can avail ₹ 8492.73 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

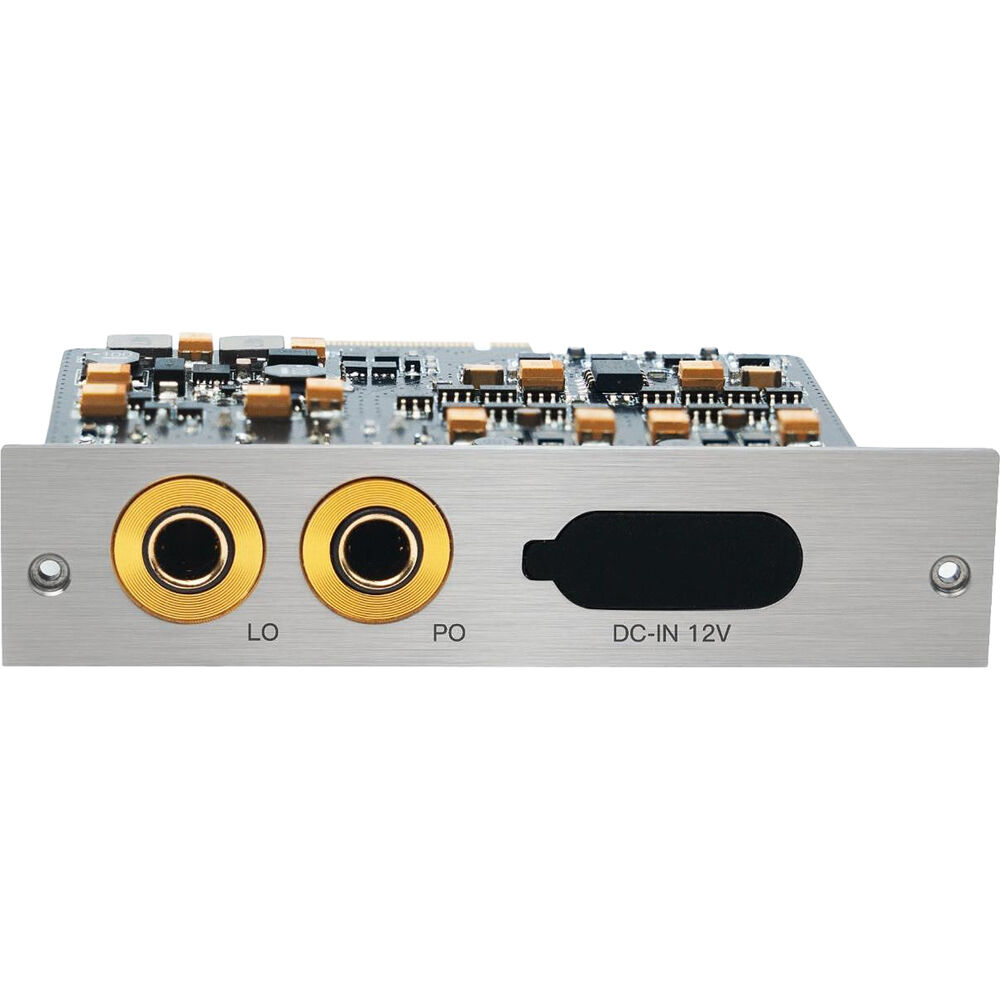

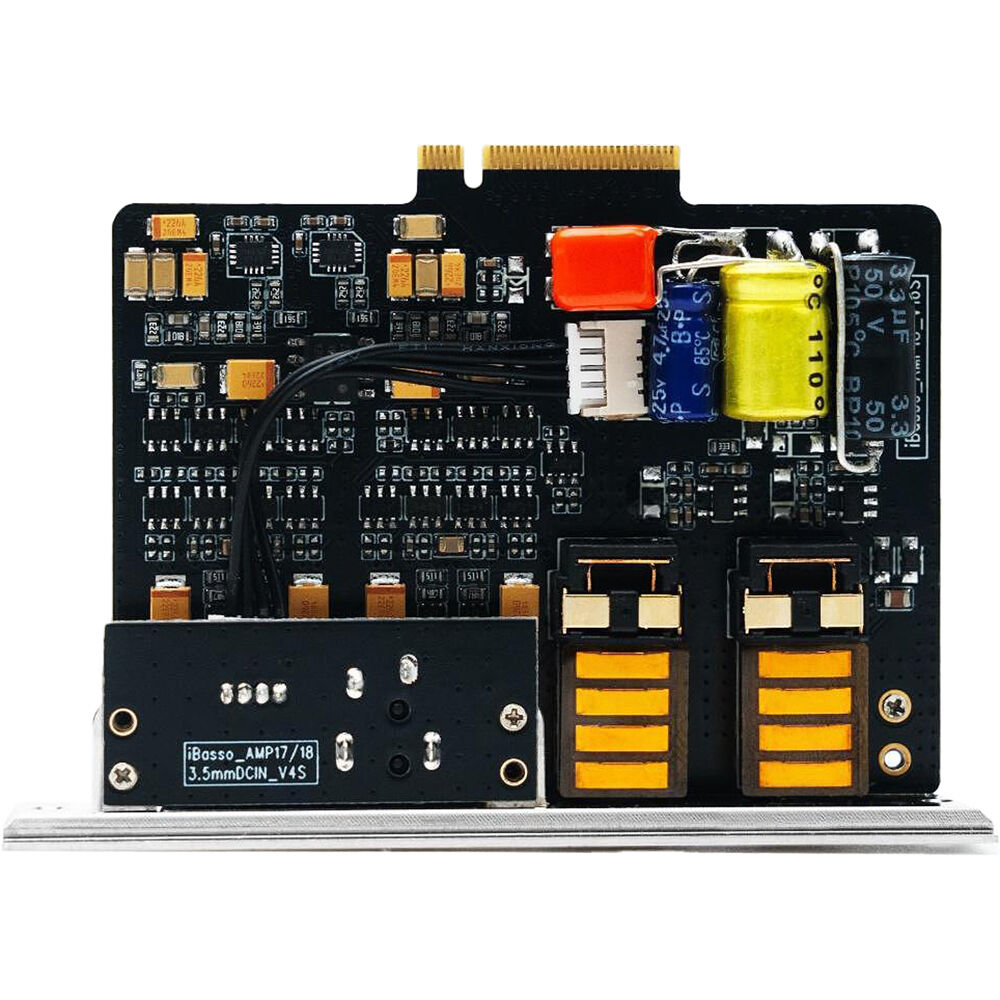

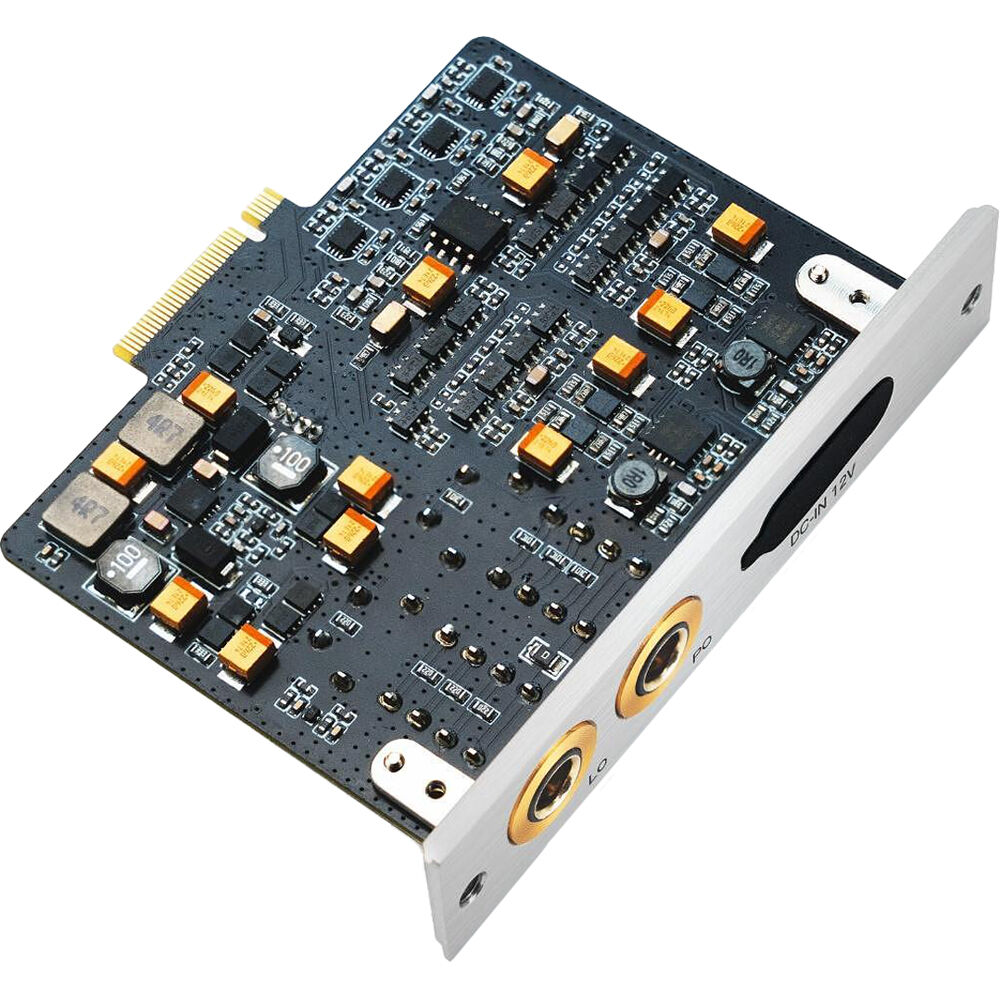

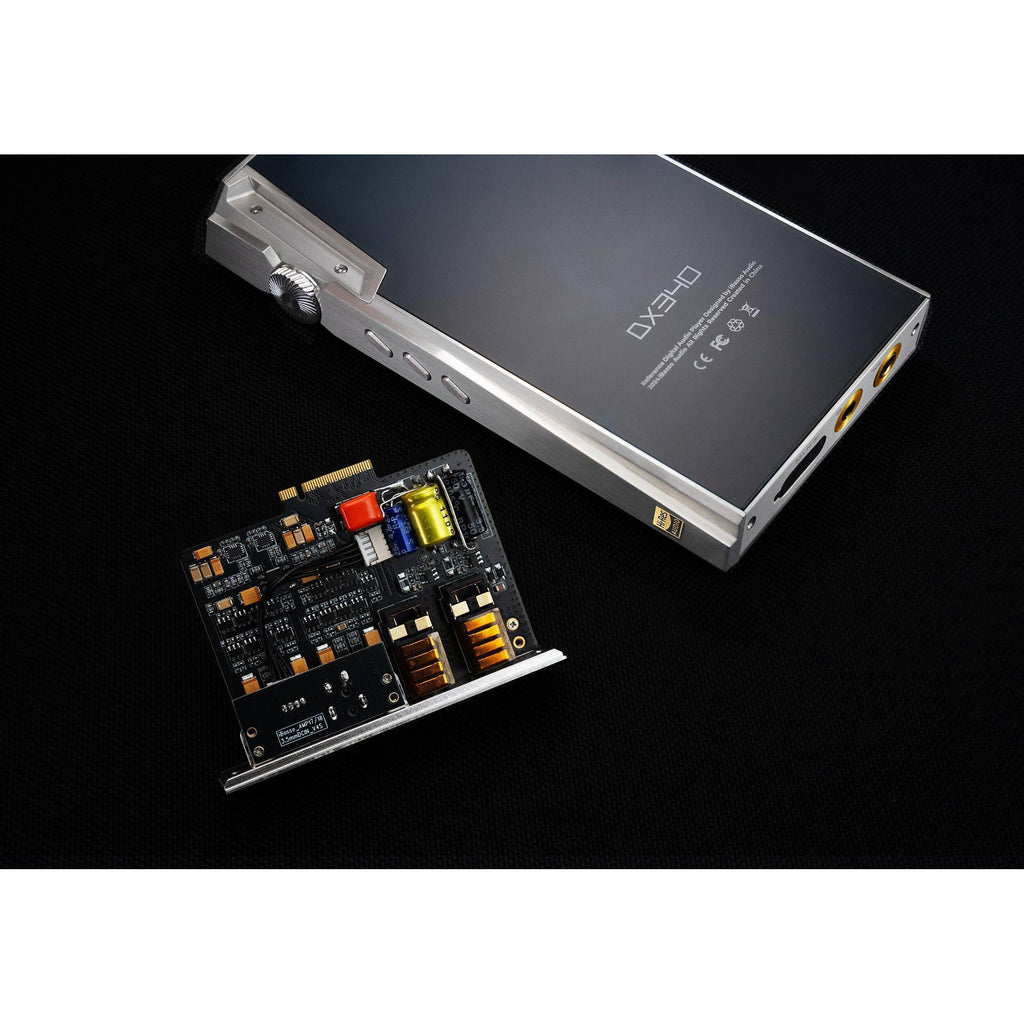

iBasso AMP18 Overview
For warm, balanced, and detailed natural sound with support for nearly all headphones and IEMs, consider using the AMP18 Balanced Amp Card for DX300 Series from iBasso to replace the existing amp card in your DX300, DX320, or DX340 DAP. The AMP18 enhances the natural analog experience when listening to digital music, significantly reducing asymmetrical distortion while completely reproducing the audio waveform and avoiding signal clipping and distortion. To accomplish this, the AMP18 is outfitted with a two-stage amplification architecture, 40 dual transistors, and a cascaded feedback circuit. Your music outputs from balanced 4.4mm line/phone outputs that deliver 1740mW at 32 ohms.
- iBasso AMP18 Balanced Amp Card for DX300 Series
- Limited 1-Year Manufacturer Warranty
No additional resources available
iBasso AMP18 Specs
| Compatibility |
iBasso DX300 / DX320 / DX340
|
| Headphone Output |
THD+N: -114 dB (No Load), -105 dB (300 Ohms Load), -93 dB (32 Ohms Load)
Dynamic Range: 123 dB Signal-to-Noise Ratio: 122 dB Max Output Power (12 VDC Power Supply): 1740 mW + 1740 mW @ 32 Ohms Max Output Power (Battery Power): 1170 mW + 1170 mW @ 32 Ohms Crosstalk: 122 dB Frequency Response: 10 Hz to 40 kHz +/- 0.9 dB Output Impedance: 1.2 Ohms |
| Line Outputs |
THD+N: -110 dB (No Load)
Dynamic Range: 123 dB Signal-to-Noise Ratio: 123 dB Crosstalk: 114 dB |
| Audio I/O |
1x 4.4 mm Headphone Output
1x 4.4 mm Line Output |
| Power Source |
Proprietary Interface
|
| DC Input Power |
12 VDC
|
| Package Weight |
0.32 lb
|
| Box Dimensions (LxWxH) |
6 x 4.1 x 1.3"
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 54576.2 |
| 3-5 | ₹ 54019.3 |
| 5-10 | ₹ 52905.5 |
| 10+ | ₹ 51791.7 |
Bulk discount will be automatically applied during checkout based on quantity.
