Description

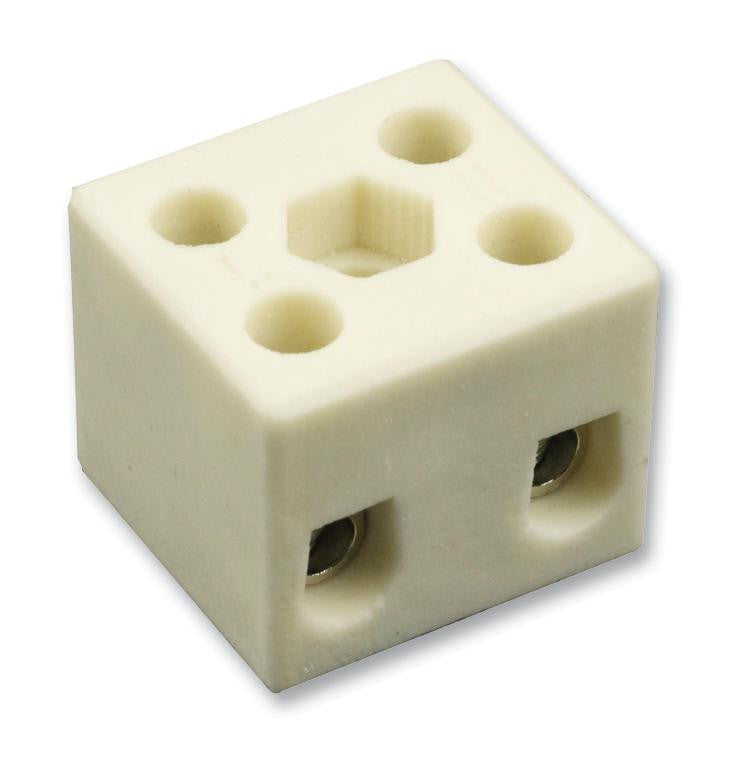

The DESTB-0252 is a 2-way steatite high-temperature Power Distribution Terminal Block, made of steatite ceramic. It is designed with a 11mm pitch. It features 24A/450V rating and accepts 22 to 12AWG wire range.
- Chemical resistance
- Heat resistance
- Corrosion-resistant
- -40 to 200�C Working temperature range
Applications
Power Management
Product details
| Rated Current | 24A |
| Rated Voltage | 450V |
| Load Side Connections Per Pole | 1 |
| Product Range | - |
| Line Side Wire Size Max | - |
| Load Side Connection Method | Screw |
| Load Side Wire Size Max | - |
| Line Side Connection Method | Screw |
| No. of Poles | 2 Pole |
| Line Side Connections Per Pole | 1 |
Other details
| Brand | HYLEC |
| Part Number | DESTB-0252 |
| Quantity | Pack of 5 |
| Technical Data Sheet EN |  |
| Drawing EN | |
