Description
Horita MTD-100 Overview
- 1Description
- 2Information
- 3Displays
- 4Time Zone
- 5LTC

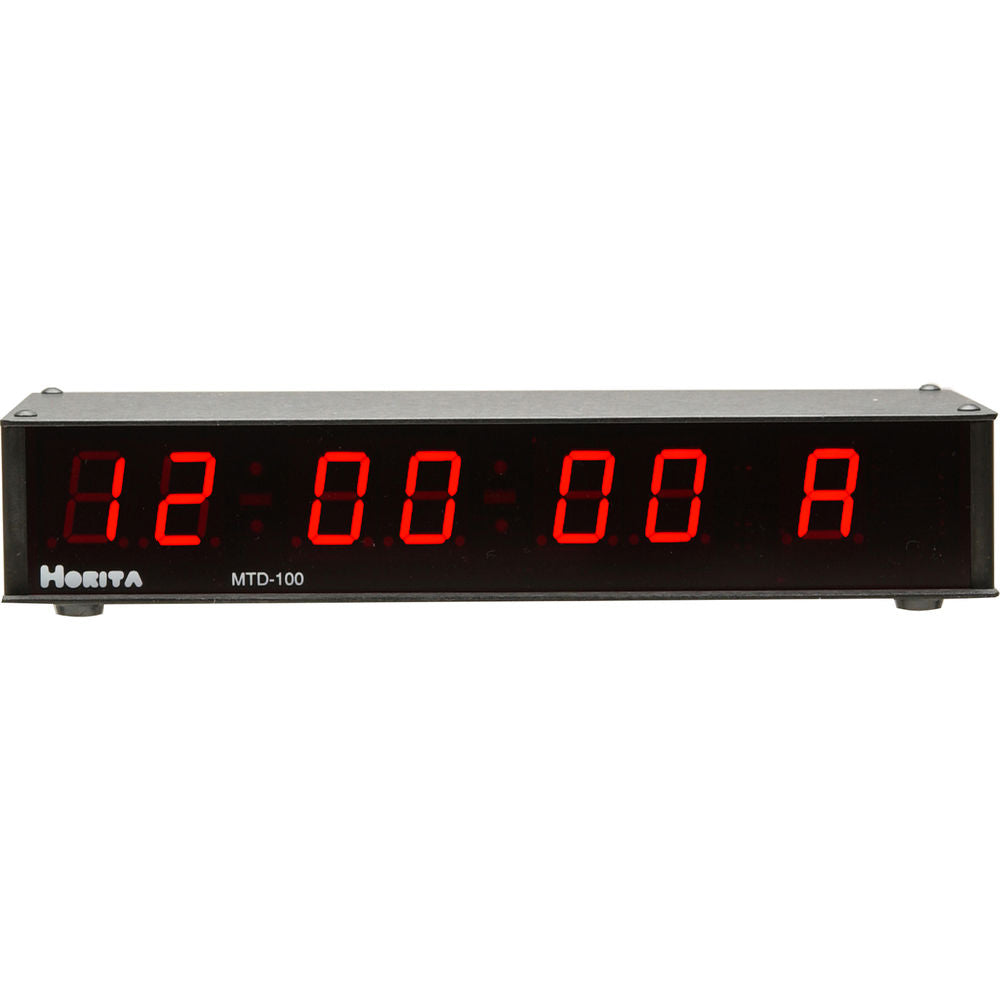

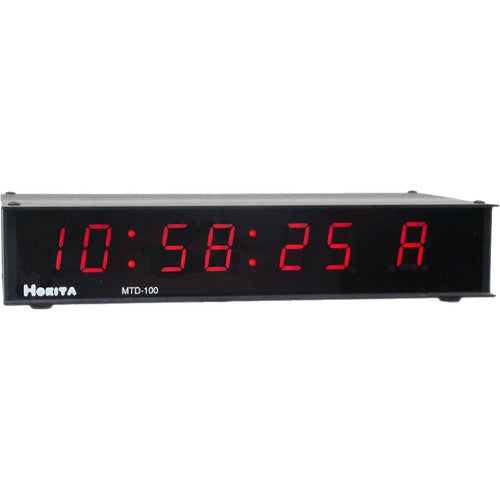

The MDT-100 is a display device that provides date or time readouts on an LCD panel. It uses an LTC input to derive data for display. This unit can be set to alternate between time and date and display military time (24 hour clock).
Information
The time and date information is derived from the user bit data of the LTC SMPTE time code.
Displays
This device displays day of the week/month/day (WED JAN 04) or month/day/year (JAN 04 03); it has the ability to display a 24 hour clock and alternate between time and date at selected intervals.
Time Zone
Time zone switch allows this unit to display information relating to the selected geographical location.
LTC
The MDD-100 uses the LTC input to derive it's information and outputs a reshaped LTC for passing on to other units.
In the Box
- Horita MTD-100 Alphanumeric Time / Date Display, LTC Input
- AC Power Adapter
- 1 Year Warranty
Table of Contents
- Description
- Information
- Displays
- Time Zone
- LTC
Horita MTD-100 Specs
| Input | Longitudinal Time Code, on an RCA Connector |
| Output | Longitudinal Time Code, @ 2 Vpp, on an RCA connector |
| Television System | NTSC @ 3.58 MHz |

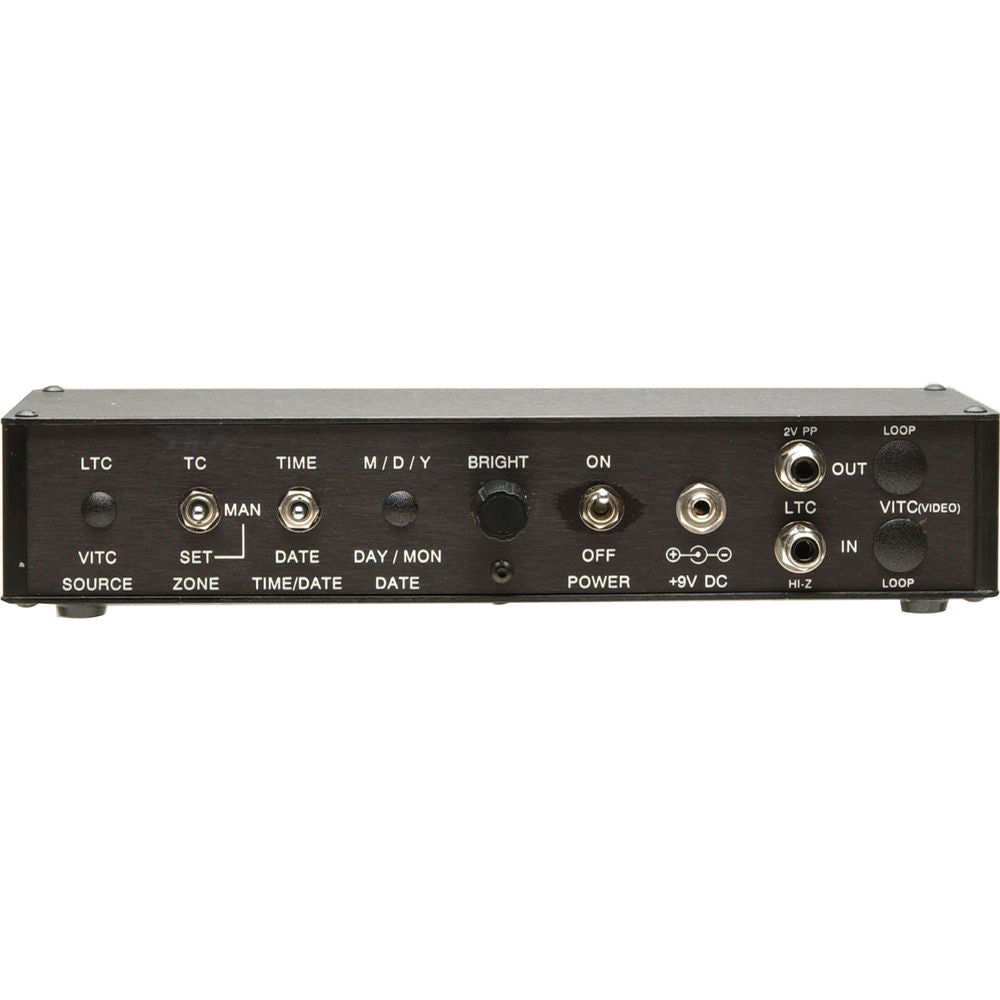

| Control | Rear Panel: TC/Manual/Zone Set Time or Date Brightness Level Power On/Off |
| Power Source | 9 VDC on an AC Power Supply |
| Dimensions (WxDxH) | 8.75 x 3.25 x 1.5" 22.2 x 8.25 x 3.81cm |
| Weight | 13 ounces 363 grams |
Packaging Info
| Package Weight | 2.2 lb |
| Box Dimensions (LxWxH) | 13.1 x 9.7 x 3.2" |
