| ₹ 800.6 includes GST and import duties. | |
| B2B customers can avail ₹ 122.09 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

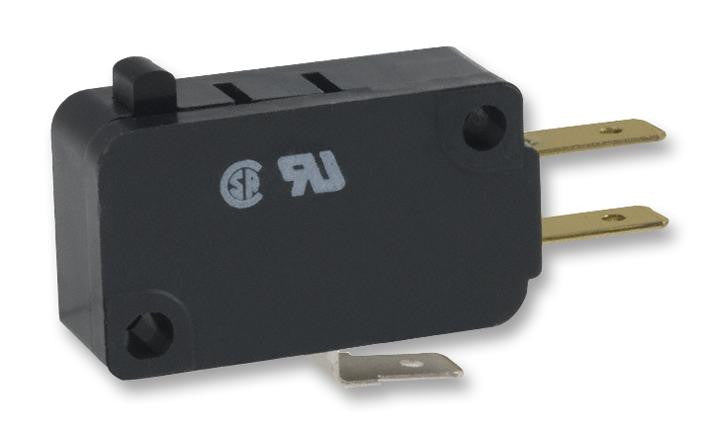

The V7-5F17D8 is a single-pole double-throw (SPDT) miniature Basic Switch with pin plunger actuator and quick connect terminations. The MICRO SWITCH� V7 series premium basic switch comes with PCT polyester thermoplastic housing and silver-plated contact. It is used for simple or precision ON/OFF, end of limit, presence/absence, pressure, temperature and manual operator interface application needs.
- Best suited for higher cost-of-failure applications
- Designed for 100K operations at a full load or 10M for mechanical life
- -40 to 82°C Operating temperature range
Applications
Consumer Electronics, Clock & Timing, Commercial, Computers & Computer Peripherals, Test & Measurement, Medical, Communications & Networking, HVAC, Industrial
Product details
| Microswitch Actuator | Pin Plunger |
| Contact Voltage DC Nom | - |
| Operating Force Max | 0.15N |
| Contact Voltage AC Nom | 277VAC |
| Microswitch Type | Miniature |
| Switch Terminals | Quick Connect, Solder |
| Contact Configuration | SPDT |
| Product Range | V7 Series |
| Contact Current Max | 3A |
Other details
| Brand | HONEYWELL |
| Part Number | V7-5F17D8 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 784.59 |
| 3-5 | ₹ 776.58 |
| 5-10 | ₹ 760.57 |
| 10+ | ₹ 744.56 |
Bulk discount will be automatically applied during checkout based on quantity.
