Description

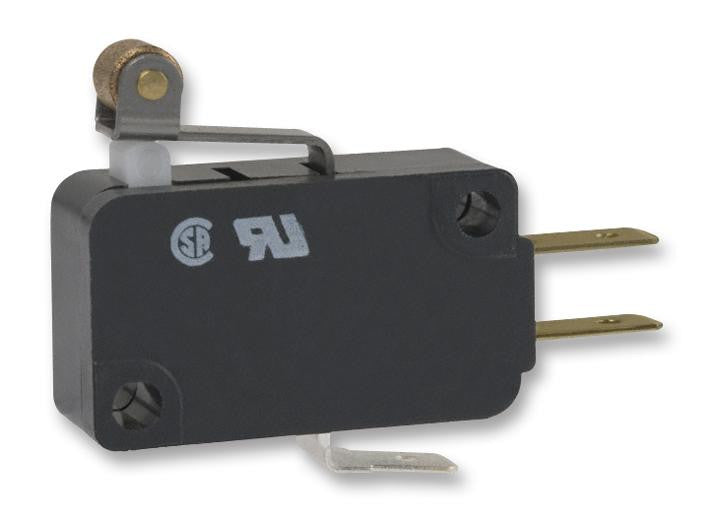

The V7-1C13D8-201 is a single-pole double-throw (SPDT) premium Miniature Basic Switch with a roller lever actuator and quick-connect terminations. The MICRO SWITCH� V7 series premium basic switch is used for simple or precision ON/OFF, end of limit, presence/absence and manual operator interface application needs. The V7 switch can reliably control logic level electrical loads from less than 0.1A to power duty switching up to 25A.
- Actuation on time
- Reliable performance in harsh conditions
- Long life cycle rating
- Design flexibility
Applications
Industrial, Consumer Electronics, Test & Measurement, Medical, Communications & Networking, HVAC
Product details
| Microswitch Actuator | Roller Lever |
| Contact Voltage DC Nom | 250VDC |
| Operating Force Max | 1.72N |
| Contact Voltage AC Nom | 277VAC |
| Microswitch Type | Miniature |
| Switch Terminals | Quick Connect |
| Contact Configuration | SPDT |
| Product Range | V7 Series |
| Contact Current Max | 15A |
Other details
| Brand | HONEYWELL |
| Part Number | V7-1C13D8-201 |
| Quantity | Each |
| Technical Data Sheet EN |  |
