Description

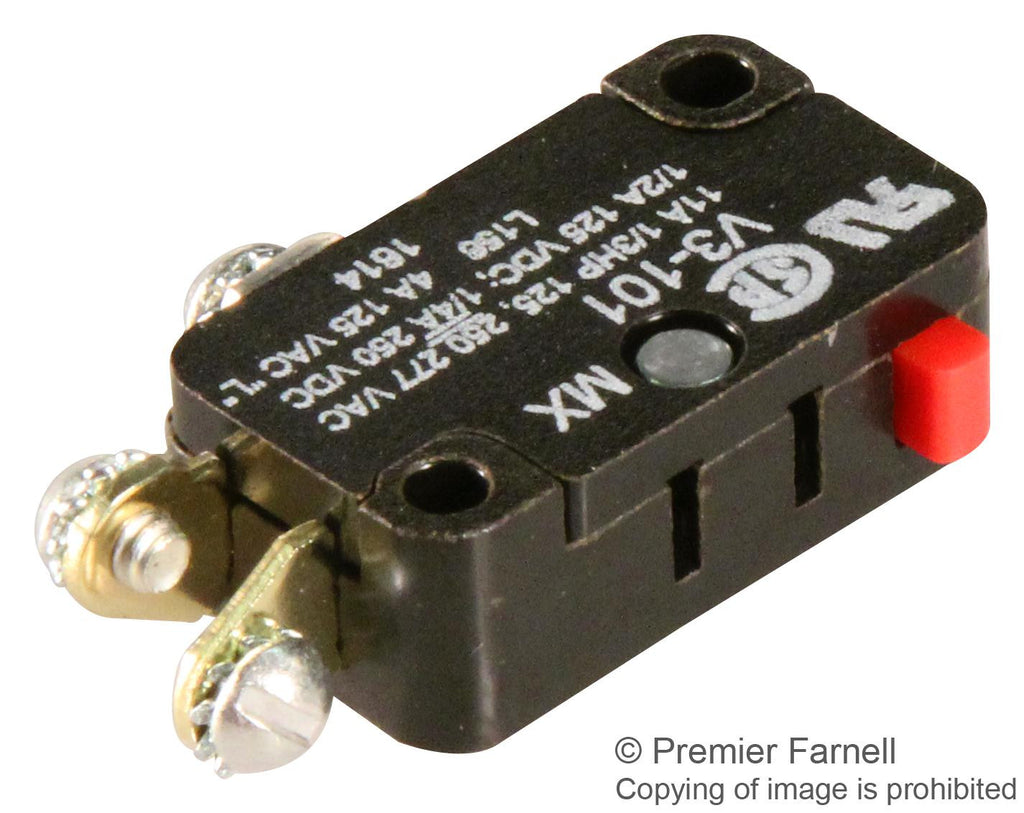

The V3-101 is a single-pole double-throw (SPDT) cut-a-way Miniature Basic Switch with a plunger actuator and screw terminations. This V3 series switch features high electrical capacity and long life. The size and shape of the switch meets design requirements in all types of applications. This switch is made up of sturdy aluminium rivet holds cover to case, water-resistant phenolic case and plunger, long life beryllium-copper spring.
- Sensitive differential as low as 0.006" maximum
- High temperature construction for use up to 316°C
Applications
Industrial
Product details
| Microswitch Actuator | Plunger |
| Contact Voltage DC Nom | 250VDC |
| Operating Force Max | 8ozf |
| Contact Voltage AC Nom | 277VAC |
| Microswitch Type | Miniature |
| Switch Terminals | Screw |
| Contact Configuration | SPDT |
| Product Range | V3 Series |
| Contact Current Max | 11A |
Other details
| Brand | HONEYWELL |
| Part Number | V3-101 |
| Quantity | Each |
| Drawing EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3053.13 |
| 3-5 | ₹ 3021.98 |
| 5-10 | ₹ 2959.67 |
| 10+ | ₹ 2897.36 |
Bulk discount will be automatically applied during checkout based on quantity.
