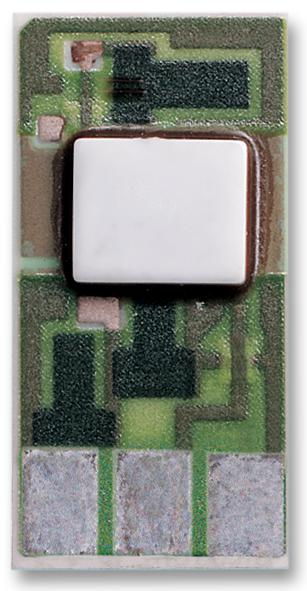

SS94A series solid state analogue position sensor. The SS9 utilizes a hall effect integrated circuit chip which provides increased temperature stability and performance. Laser trimmed thick film resistors on the ceramic substrate and thin film resistors on the integrated circuit reduce null and gain shifts over temperature which results in consistent sensitivity from one device to the next. Laser trimmed thin film and thick film resistors minimize sensitivity variations and compensate for temperature variations.
- Three pin in-line printed circuit board terminals
- Standard 0.100" mounting centres
- 6.6VDC to 12.6VDC supply voltage range, 13mA typical supply current (30mA maximum)
- Typical response time of 3µsec
- High sensitivity
Product details
| Output Current:
2mA
|
| Product Range:
SS94A Series
|
Other details
| Brand |
HONEYWELL |
| Part Number |
SS94A1F |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
