Description

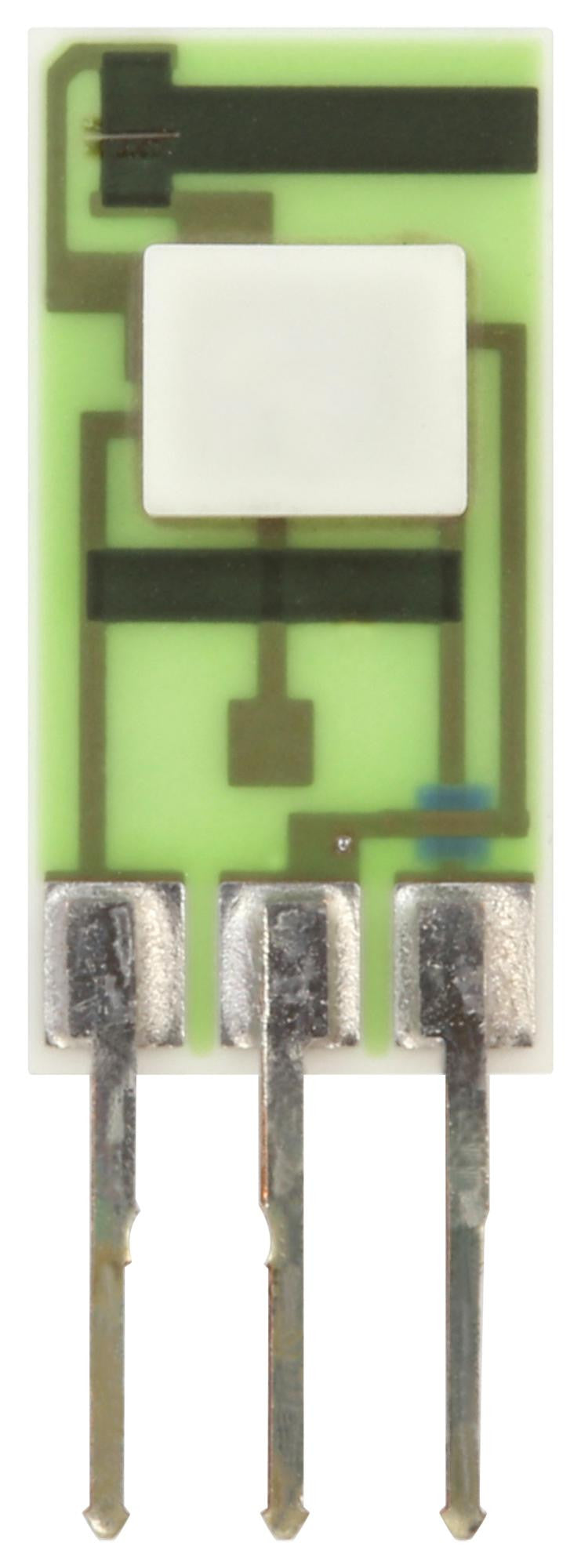

The SS94A1 is a hall-effect Sensor IC, provides increased temperature stability and performance. Laser trimmed thick film resistors on the ceramic substrate and thin film resistors on the integrated circuit reduce null and gain shifts over temperature which results in consistent sensitivity from one device to the next. The output is clamped at the high end. Clamping voltage may be as low as 9VDC. The output will not exceed the clamping voltage regardless of field strength or power supply.
- Single current sinking or current sourcing linear output
- Improved temperature stability
- Standard mounting centres
- Laser trimmed thin film and thick film resistor minimize sensitivity and compensate
Applications
Clock & Timing, Sensing & Instrumentation, Robotics, Test & Measurement, Security
Product details
| Operating Temperature Min | -40°C |
| Output Current | 1mA |
| Sensor Case Style | SIP |
| Operating Temperature Max | 125°C |
| No. of Pins | 3Pins |
| Product Range | SS94A Series |
| Automotive Qualification Standard | - |
| Hall Effect Type | Linear |
| Supply Voltage Min | 6.6V |
| Packaging | Each |
| Supply Voltage Max | 12.6V |
| MSL | - |
Other details
| Brand | HONEYWELL |
| Part Number | SS94A1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
