| ₹ 2163.5 includes GST and import duties. | |
| B2B customers can avail ₹ 329.93 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

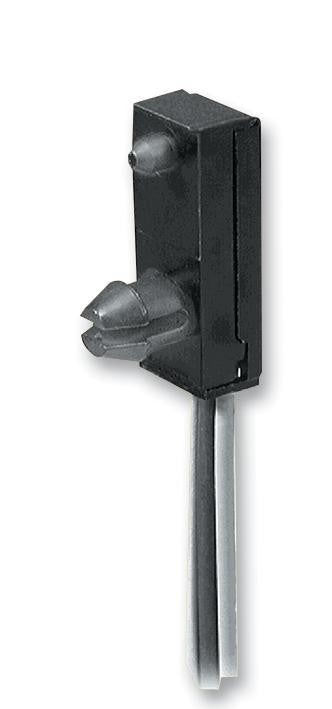

The SR13C-A1 is a hall-effect digital Position Sensor with 152.4mm (6-inch) stranded lead wires termination, snap-in housing, sinking output and unipolar magnetic. The package enhancements permit quick and easy sensor installation, increasing the usability of the SS400 series. This device can be installed without additional mounting hardware. The snap-in and flat mount sensor packages can house any of the present SS400 series sensors or any similarly sized sensing elements.
- Quad-hall design eliminates stress effects
- Temperature compensated magnetic
- High output capability
- Unipolar magnetic actuation type
- -40 to 150�C operating temperature
- 13mA (maximum at 25�C) supply current
- 5�A leakage current
Applications
Logistics, Industrial
Warnings
Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
Product details
| Output Voltage Min | 400mV |
| Switching Speed | 1.5�s |
| Sensor Housing | Rectangular |
| Sensor Terminals | Wire Leads |
| Supply Voltage DC Max | 30V |
| Output Configuration | Sink |
| Product Range | SR13 Series |
| Supply Voltage DC Min | 3.8V |
Other details
| Brand | HONEYWELL |
| Part Number | SR13C-A1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2120.23 |
| 3-5 | ₹ 2098.6 |
| 5-10 | ₹ 2055.33 |
| 10+ | ₹ 2012.06 |
Bulk discount will be automatically applied during checkout based on quantity.
