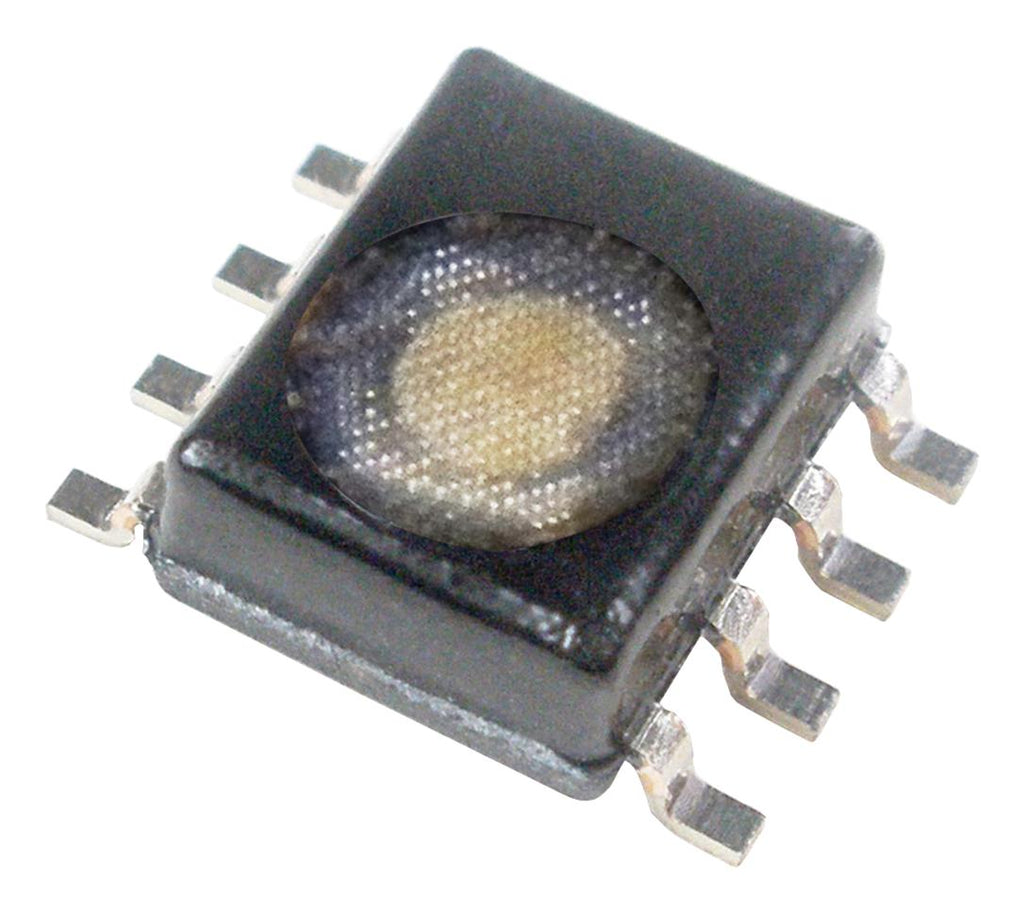

HIH6131-000-001 Humidity and Temperature Sensor , ± 4%, 0% to 100% RH, -25 to 85°C, SPI, Digital, SOIC-8, 2.3 to 5.5V product from HONEYWELL with the model number HIH6131-000-001
Product details
| Humidity Range |
0% to 100% Relative Humidity |
| Humidity Accuracy |
± 4% RH |
| Temperature Accuracy |
± 0.5°C |
| RH Response Time |
6s |
| Temperature Response Time |
30s |
| Sensor Interface Type |
SPI |
| Sensor Output Type |
Digital |
| Sensor Case Style |
SOIC |
| No. of Pins |
8Pins |
| Operating Temperature Min |
-25°C |
| Operating Temperature Max |
85°C |
| Supply Voltage Min |
2.3V |
| Supply Voltage Max |
5.5V |
| Product Range |
- |
Other details
| Brand |
HONEYWELL |
| Part Number |
HIH6131-000-001 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
