Honeywell HIH6030-021-001 HIH6030-021-001 Temperature and Humidity Sensor HumidIcon� Series Digital 0% to 100% RH 4.5 % SMD

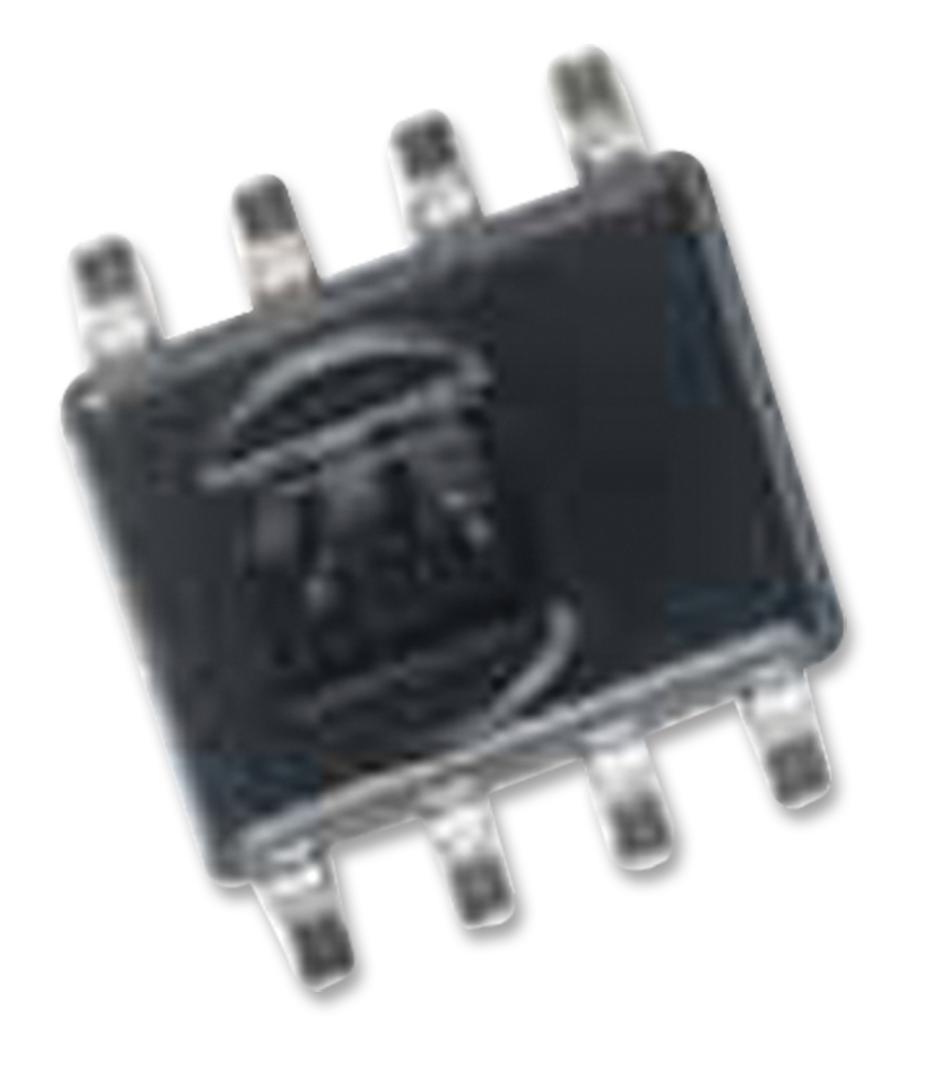

The HIH6030-021-001 from Honeywell is a humidIcon digital humidity/temperature sensor in SOIC-8 package. This sensor provides an accuracy level of ±4.5%RH for humidity performance and ±1.0°C for temperature performance. Typical applications include HVAC/R, air compressors, weather stations, telecom cabinets, respiratory therapy and industrial incubators /micro environments.

• Supply voltage range from 2.3VDC to 5.5VDC
• Available without filter, non condensing
• Industry leading long-term stability upto ±1.2%RH and ±0.05°C/yr
• Industry leading reliability
• High resolution
• True temperature compensated digital I2C output
• Low power consumption
• Operating temperature range from -40°C to 100°C
• Operating humidity range from 0%RH to 100%RH
• Supply current of 1mA

Applications

HVAC, Sensing & Instrumentation, Consumer Electronics, Automation & Process Control, Industrial, Medical

Other details

Brand	HONEYWELL
Part Number	HIH6030-021-001
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
