Honeywell HIH-5030-001 HIH-5030-001 Humidity Sensor 3 % 3.3 V 0% to 100% Relative Pins 5 s

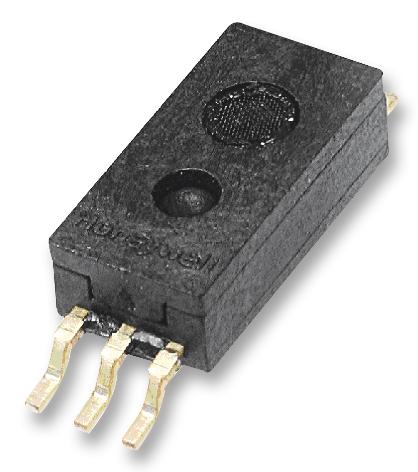

The HIH-5030-001 is a surface mount low voltage humidity sensor IC. This device operates down to 2.7VDC and ideal in battery powered systems where supply is nominal 3VDC. The HIH-5030-001 is designed specifically for high volume OEM (Original Equipment Manufacturer) users. Direct input to controller or other device is made possible by this sensor's near linear voltage output. It is ideally suited for many low drain, battery operated systems with typical current draw of only 200µA. Tight sensor interchangeability eliminates calibration costs. The HIH-5030-001 delivers instrumentation quality RH (Relative Humidity) sensing performance in a competitively priced, solderable SMD package. This RH sensor uses a laser trimmed, thermoset polymer capacitive sensing element with on-chip integrated signal conditioning.

• Moulded thermoset plastic housing
• Chemically resistant
• Low power design and enhanced accuracy
• Fast response time
• Stable, low drift performance
• Supply voltage range from 2.7VDC to 5.5VDC
• Operating humidity range from 0%RH to 100%RH
• Accuracy of ±3%RH (best fit straight line)
• Response time of 5s (1/e in slow moving air)
• Operating temperature range from -40°C to 85°C

Applications

Sensing & Instrumentation, Medical, Industrial

Other details

Brand	HONEYWELL
Part Number	HIH-5030-001
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Application Note EN
Operating Instructions EN
