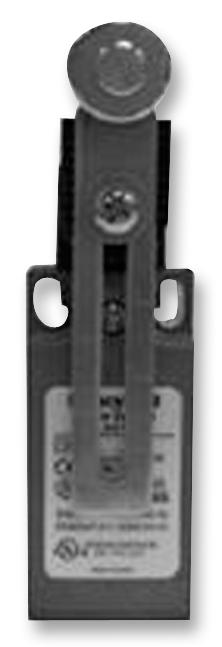

The GLLA01A2B is a single-pole double-throw (SPDT) miniature DIN Global Limit Switch with a side rotary fixed lever actuator. The MICRO SWITCHÖ GLL series limit switch is a part of the OEM set of miniature limit switches. The double insulated compact housing conforms to EN500047 and makes GLL series switches often ideal for mounting where space is at a premium. Designed to the IEC electrical standard, GLL is suitable for world-wide use and also meets globally accepted mounting standards.
- EN50047 mounting
- Galvanically isolated contacts
- Double-insulated plastic housing
- Contact block integral to switch housing
- Hinge cover for easy wiring access
Applications
Industrial, Logistics
Product details
| Limit Switch Actuator |
Side Rotary |
| Contact Configuration |
SPDT |
| Contact Current AC Max |
10A |
| Contact Voltage AC Max |
300V |
| Operating Force Max |
12N |
| Product Range |
GLL Series |
| Contact Current DC Max |
10A |
| Contact Voltage DC Max |
250V |
Other details
| Brand |
HONEYWELL |
| Part Number |
GLLA01A2B |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
