Description
Honeywell 5078-11-01 Overview

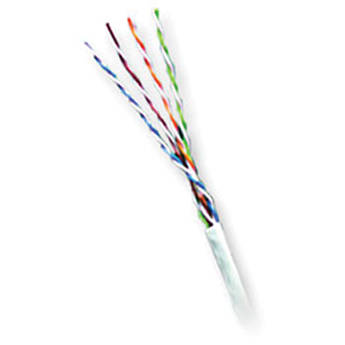

The 1000', white Genesis Series 4-Pair Category 5e UTP Cable from Honeywell is a 4-pair Category 5e Unshielded Twisted Pair (UTP) cable. It has a 24 AWG solid bare copper conductor, insulated with polyethylene or polypropylene. This cable has sunlight-resistant RoHS compliant PVC jacket, a ripcord, and 1000 - 0 (descending) footage marking. The cable is UL (or ETL) verified to TIA/EIA-568 category 5e, sweep tested to 350 MHz, and is general communication UL 1666 riser rated UL (or ETL) listed.
UPC: 619172045032
In the Box
- Honeywell Genesis Series 4-Pair Category 5e UTP Cable (1000', White)
- Limited 3-Year Manufacturer Warranty
Honeywell 5078-11-01 Specs
| Cable Length | 1000.0' (304.8 m) |
| Pairs | 4 |
| AWG | 24 |
| Stranding | Solid |
| Conductor Material | Bare copper |
| Jacket | PVC (sunlight-resistant RoHS compliant) |
| Testing | Sweep tested to 350 MHz |
| Conductor Color Code and Pair | Blue and White/Blue: 1 Orange and White/Orange: 2 Green and White/Green: 3 Brown and White/Brown: 4 |
| Electrical Characteristics | DC Resistance: Nominal Value: 7.6 ?/323.0' (100.0 m) Maximum Value: 9.38 ?/323.0' (100.0 m) Resistance Unbalance: Nominal Value: 1.5% Maximum Value: 5.0% Capacitance: Nominal Value: 4.9 nF/323.0' (100.0 m) Maximum Value: 5.6 nF/323.0' (100.0 m) Capacitance Unbalance: Nominal Value: 50.0 pF/323.0' (100.0 m) Maximum Value: 330.0 pF/323.0' (100.0 m) Velocity of Propagation: Nominal Value: 69.0% Maximum Value: NA Propagation Delay: Nominal Value: 515.0 ns/323.0' (100.0 m) Maximum Value: 570.0 ns/323.0' (100.0 m) Delay Skew: Nominal Value: 15.0 ns/323.0' (100.0 m) Maximum Value: 45.0 ns/323.0' (100.0 m) |
| Insulation Type | HDPE or PP |
| Jacket Diameter | 0.2" (5.0 mm) |
| Voltage Rating | 300 V |
| Temperature Rating | -4 to +167°F (-20 to +75°C) |
| UL Listing | CMR |
| Compliance | RoHS |
Packaging Info
| Package Weight | 20.6 lb |
| Box Dimensions (LxWxH) | 14.4 x 13.1 x 10.3" |
