Description
Honeywell 3115-55-12 Overview

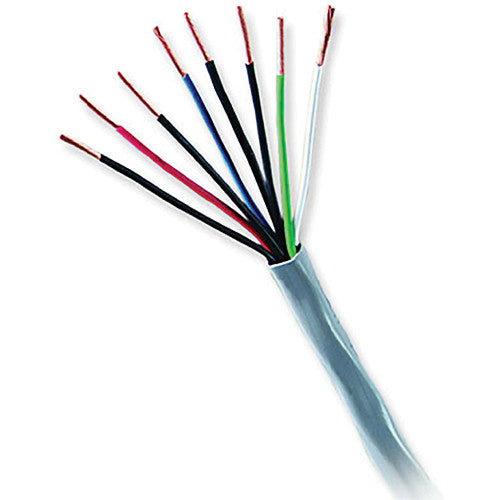

The 500' long clear Genesis Series 18 AWG Unshielded Untwisted Multi-Conductor Cable with 4 Unpaired Conductors from Honeywell comes in pull-box packaging. This cable offers a gauge size of 22 AWG. It is unshielded and features a general-purpose jacketing material. Applications for this cable include control cables (Lutron systems and Crestron systems), alarms, intercoms, speakers, and other low-voltage circuits that are power limited.
Countdown or sequential footage markings
Room and zone markings
CMP, CL2P, C(UL), FT6 listed
UL Standards 13, & 444; NEC Articles 725
Flame Rating: UL 910, CSA FT6, NFPA 262
UPC: 619172013864
In the Box
- Honeywell Genesis Series 18 AWG Unshielded Untwisted Multi-Conductor Cable with 4 Unpaired Conductors (Clear, 500' Pull-Box)
- Limited 3-Year Warranty on Parts & Labor
Honeywell 3115-55-12 Specs
| Gauge | 18 AWG |
| Conductors | 4 x 19/0.0092" stranded bare copper |
| Insulation | Plenum PVC Nominal Thickness: 0.007" (0.178 mm) Diameter: 0.06" (1.52 mm) Colors: Black, white, red, and green |
| Jacket | Plenum, low-smoke PVC Nominal Thickness: 0.015" (0.381 mm) |
| Lay Length | Nominal: 2.75" (69.85 mm) |
| DC Resistance | 6.5 ?/m at 20°C) |
| Nominal Impedance | 72 ? |
| Pulling Tension |
Maximum: 19.0 lb (8.6 kg) Recommended: 14.25 lb (6.46 kg) |
| Temperature Rating | -4 to 140°F (-20 to 60°C) |
| Operating Voltage | Maximum: 300 V |
| Length | 500.0' (152.4 m) |
| Weight | 33.0 lb per MFT (15.0 kg per MFT) |
Packaging Info
| Package Weight | 16.4 lb |
| Box Dimensions (LxWxH) | 11.496 x 10.787 x 7.874" |
