Description

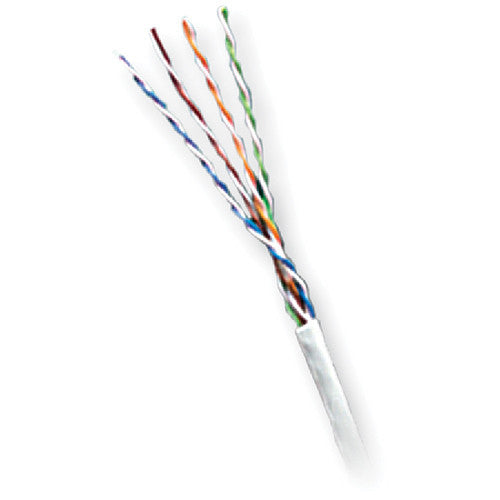

The white Honeywell Genesis Category 5e Unshielded Twisted Pair Plenum Communication Cable is a 1000' long cable that comes in a pull box and is rated by UL and has #24 AWG solid bare copper conductors. It features 100% FEP insulation, a LSPVC jacket with a ripcord under its jacket and sequential footage markings. It is ETL Verified to TIA/EIA 568-C Category 5e.
- 4-Pair CAT5e Unshielded Twisted Pair (UTP) cable
- Plenum Communication (CMP) rated by UL
- #24 AWG solid bare copper conductor
- 100% FEP insulation
- LSPVC jacket with a ripcord under the jacket
- Sequential footage markings
- ETL verified to TIA/EIA 568-C Category 5e
UPC: 619172054911
In the Box
Honeywell Genesis Category 5e Unshielded Twisted Pair Plenum Communication Cable (Pull Box, 1000', White)
- Limited 30-Year Warranty
| Type | 24/4PR CAT5e CMP |
| Voltage Rating | 300V |
| Current | 1.4A |
| DC Resistance | Nominal: 7.6 ohms/100m Maximum: 9.38 ohms/100m |
| Resistance | Unbalance: Nominal: 1.5% Maximum: 5% |
| Capacitance | Nominal: 4.9 nF/100m Maximum: 5.6 nF/100m Unbalance: Nominal: 50 pF/100m Maximum: 330 pF/100m |
| Velocity of Propagation | Nominal: 71% |
| Propagation Delay | Nominal: 505 ns/100m Maximum: 570 ns/100m |
| Delay Skew (ns/100 m) | Nominal: 15 ns/100m Maximum: 45 ns/100m |
| Cable Diameter | 0.2" (0.5 cm) |
| Insulation | 100% FEP |
| Jacket | 24 Solid Bare Copper |
| Minimum Bend Radius | 0.8" (2.03 cm) |
| Pull Strength | 25 lbs (11.33 kg) |
| Cable Length | 1000' (304.8 m) |
| Weight | 23 lbs (10.43 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 21.15 lb |
| Box Dimensions (LxWxH) | 14.3 x 13.6 x 10.5" |
