| ₹ 65105.0 includes GST and import duties. | |
| B2B customers can avail ₹ 9928.51 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

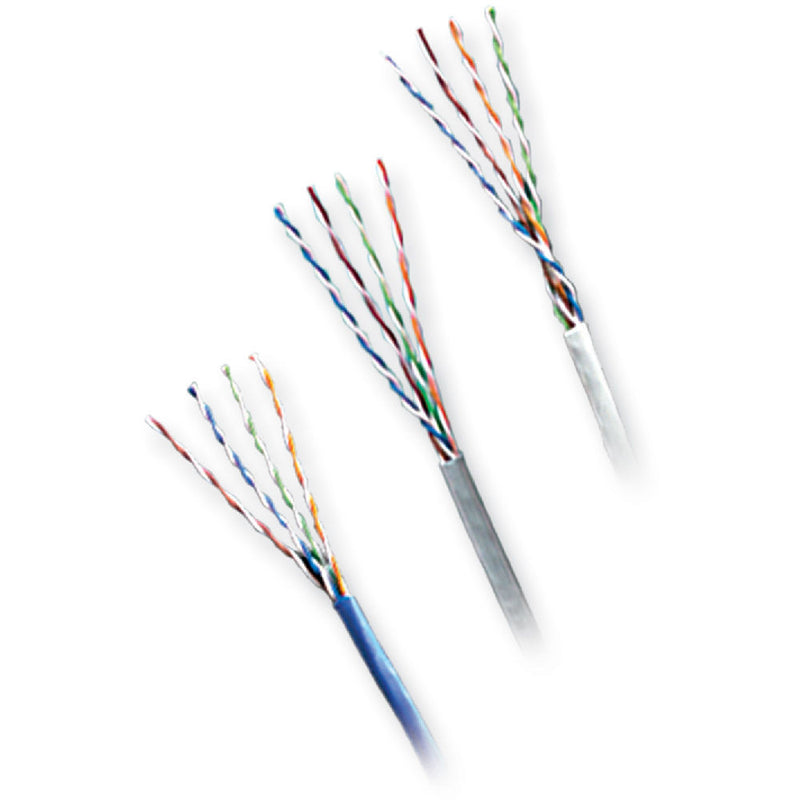

The white Genesis Category 5e Unshielded Twisted Pair Networking Cable comes in a reel in-a box of 1000.0� (304.8m). It is a CAT5e UTP (unshielded twisted pair) cable. This cable is the main component of a communications system and a key determinant to its performance. It strictly adheres to the TIA/EIA category requirements.
- 4-Pair CAT5e UTP (unshielded twisted pair) cable
- CMP (Plenum communication) rated by UL
- AWG 24 solid bare copper conductor
- 100% FEP insulation
- LSPVC jacket with a ripcord under the jacket
- Sunlight resistant
- Sequential footage markings
- ETL verified to TIA/EIA 568-C Category 5e
UPC: 619172043809
In the Box
Honeywell Genesis Category 5e Unshielded Twisted Pair Networking Cable (1000' Reel in-a Box, White)
- Limited 1-Year Warranty
| Electrical Specifications | |
|---|---|
| Voltage Rating | 300 V |
| Current | Current Rating: 1.4 A |
| DC Resistance | Nominal Value: 7.6 ? / 100 m Maximum: 9.38 ? / 100m |
| Resistance | Resistance Unbalance: Nominal : 1.5% Maximum Value: 5% |
| Capacitance | Nominal: 4.9 nF/100m Maximum : 5.6 nF / 100m Capacitance Unbalance: Nominal Value: 50 pF / 100m Maximum Value: 330 pF/100m |
| Velocity of Propagation | Nominal: 71% |
| Propagation Delay | Nominal : 505 ns/100 m Maximum: 570 ns / 100 m |
| Delay Skew (ns/100 m) | Nominal: 15 ns / 100m Maximum : 45 ns / 100m |
| Physical Specifications | |
|---|---|
| Style | 24/4pr CAT5e CMP |
| Conductor | 24 solid bare copper |
| Insulation | 100% FEP insulation |
| Jacket | LSPVC jacket with ripcord Diameter: 0.200" (0.508 cm) |
| Minimum Bend Radius | 0.8" (7.6 cm) |
| Pull Strength | 25.0 lb (11.3 kg) |
| Cable Length | 1000.0' (304.8 m) |
| Weight | 22.0 lb (10.0 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 22.8 lb |
| Box Dimensions (LxWxH) | 12.3 x 12.3 x 10.5" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 63802.9 |
| 3-5 | ₹ 63151.85 |
| 5-10 | ₹ 61849.75 |
| 10+ | ₹ 60547.65 |
Bulk discount will be automatically applied during checkout based on quantity.
