Description
- 23 AWG
- Solid Stranding
- Bare Copper Conductor Material
- PVC Jacket Type
- Sequential Footage Markings
- Sweep Tested to 350 MHz
- 300V Voltage Rating
- Ripcord
- CMP UL Listing
- RoHS Compliance

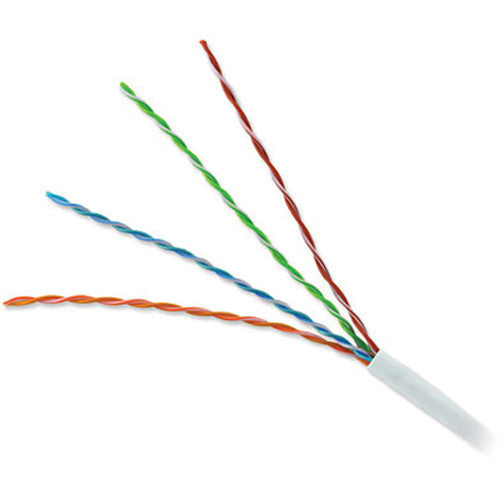

The 1000', white 6361 Genesis Series 4-Pair Category 6 UTP Cable from Honeywell is a 4-pair category 6 Unshielded Twisted Pair (UTP) cable, plenum communication rated UL (or ETL). This cable has 23 AWG solid bare copper conductors, FEP insulation, no spacer, PVC jacket with ripcord under jacket, and sequential footage markings. It is UL (or ETL) verified to TIA/EIA-568 category 6 and sweep tested to 350 MHz*.
Note: *Swept to 350 MHz, values beyond 250 MHz are for information only.
In the Box
Honeywell 6361 Genesis Series 4-Pair Category 6 UTP Cable (1000', White)
- Limited 3-Year Warranty
| Cable Length | 1000.0' (304.8 m) |
| Pairs | 4 |
| AWG | 23 |
| Stranding | Solid |
| Conductor Material | Bare copper |
| Conductor Color Code and Pair | Blue and White/Blue: 1 Orange and White/Orange: 2 Green and White/Green: 3 Brown and White/Brown: 4 |
| Electrical Characteristics | DC Resistance Nominal Value: 7.6 ?/323.0' (100.0 m) Maximum Value: 9.38 ?/323.0' (100.0 m) Resistance Unbalance Nominal Value: 1.5% Maximum Value: 5.0% Capacitance Nominal Value: 4.9 nF/323.0' (100.0 m) Maximum Value: 5.6 nF/323.0' (100.0 m) Capacitance Unbalance Nominal Value: 50.0 pF/323.0' (100.0 m) Maximum Value: 330.0 pF/323.0' (100.0 m) Velocity of Propagation Nominal Value: 69.0% Maximum Value: NA Propagation Delay Nominal Value: 535.0 ns/323.0' (100.0 m) Maximum Value: 570.0 ns/323.0' (100.0 m) Delay Skew Nominal Value: 20.0 ns/323.0' (100.0 m) Maximum Value: 45.0 ns/323.0' (100.0 m) |
| Jacket Type | PVC |
| Insulation Type | FEP (Fluorinated Ethylene Propylene) |
| Jacket Diameter | 0.205" (5.207 mm) |
| Testing | Sweep tested to 350 MHz (swept to 350 MHz, values beyond 250 MHz are for information only) |
| Voltage Rating | 300 V |
| Ripcord | Yes |
| Temperature Rating | -4 to +167�F (-20 to +75�C) |
| UL Listing | CMP |
| Compliance | RoHS |
