Description
- 23 AWG
- Solid Stranding
- Bare Copper Conductor Material
- PVC Alloy Jacket Type
- Sequential Footage Markings
- Sweep Tested to 350 MHz
- 300V Voltage Rating
- Ripcord
- CMR UL Listing
- RoHS Compliance

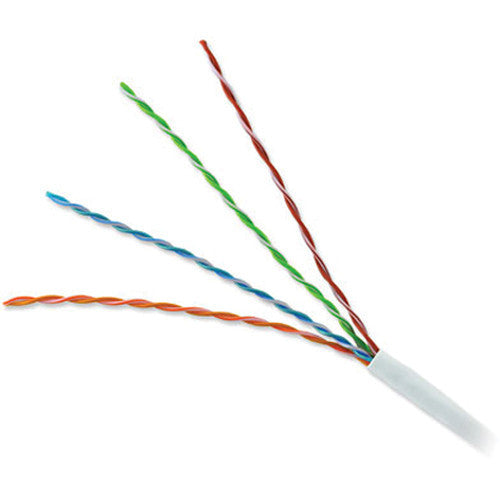

The 1000', white 6360 Genesis Series 4-Pair Cat6 UTP Cable from Honeywell is a 4-pair category 6 Unshielded Twisted Pair (UTP) cable, and is riser communication rated UL (or ETL) listed. It has 32 AWG solid bare copper conductors, polypropylene or polyethylene insulation, no spacer, PVC jacket with ripcord under jacket, and sequential footage markings. The cable is UL (or ETL) verified to TIA/EIA-568 category 6 and sweep tested to 350 MHz*.
Note: *Swept to 350 MHz, values beyond 250 MHz are for information only.
UPC: 781410982543
In the Box
Honeywell 6360 Genesis Series 4-Pair Cat6 UTP Cable (1000', White)
- Limited 3-Year Warranty
| Length | 1000.0' (304.8 m) |
| Pairs | 4 |
| AWG | 23 |
| Stranding | Solid |
| Conductor Material | Bare copper |
| Conductor Color Code and Pair | Blue and White/Blue: 1 Orange and White/Orange: 2 Green and White/Green: 3 Brown and White/Brown: 4 |
| Electrical Characteristics | DC Resistance: Nominal Value: 7.6 ?/323.0' (100.0 m) Maximum Value: 9.38 ?/323.0' (100.0 m) Resistance Unbalance: Nominal Value: 1.5% Maximum Value: 5.0% Capacitance: Nominal Value: 4.9 nF/323.0' (100.0 m) Maximum Value: 5.6 nF/323.0' (100.0 m) Capacitance Unbalance: Nominal Value: 50.0 pF/323.0' (100.0 m) Maximum Value: 330.0 pF/323.0' (100.0 m) Velocity of Propagation: Nominal Value: 69.0% Maximum Value: NA Propagation Delay: Nominal Value: 535.0 ns/323.0' (100.0 m) Maximum Value: 570.0 ns/323.0' (100.0 m) Delay Skew: Nominal Value: 20.0 ns/323.0' (100.0 m) Maximum Value: 45.0 ns/323.0' (100.0 m) |
| Jacket Type | PVC alloy |
| Insulation Type | Polypropylene or polyethylene |
| Jacket Diameter | 0.205" (5.207 mm) |
| Testing | Sweep tested to 350 MHz (swept to 350 MHz, values beyond 250 MHz are for information only) |
| Voltage Rating | 300 V |
| Ripcord | Yes |
| Temperature Rating | -4 to +167�F (-20 to +75�C) |
| UL Listing | CMR |
| Compliance | RoHS |
| Packaging Info | |
|---|---|
| Package Weight | 25.05 lb |
| Box Dimensions (LxWxH) | 12.6 x 11.4 x 11.1" |
