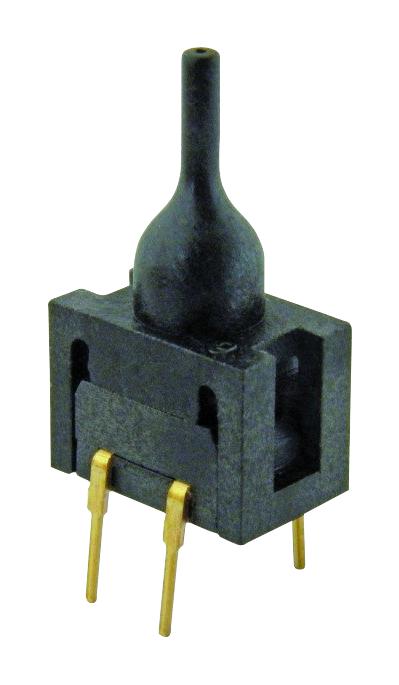

26PC series compensated/unamplified miniature low pressure sensors are small, cost-effective devices intended for use with wet or dry media. These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element to offer high performance, reliability and accuracy. Each sensor contains four active piezoresistors that form a wheatstone bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is proportional to the input pressure. The low power 26PC sensors have an operating temperature range of -40°C to 85°C. They are designed and manufactured according to ISO 9001 standards. Suitable for use in medical and industrial applications.
- Pressure range of 250psi
- True wet/wet differential media sensing provides liquid sensing in differential applications
- Provides flexibility in customers' pneumatic designs
- Gives customers greater system flexibility in their designs
- Variety of pressure port types and lead terminations provides application flexibility
- Fluorosilicone seal material
- Needle pressure port type
- 2 x 2 DIP termination, normal polarity, gage pressure measurement type
Other details
| Brand |
HONEYWELL |
| Part Number |
26PCGFJ2G |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Application Note EN |
|
| Installation Instructions EN |
|
