24PC series uncompensated/unamplified miniature low pressure sensors are small, cost-effective devices intended for use with wet or dry media. These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a wheatstone bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is proportional to the input pressure. The low power 24PC sensors are designed have an operating temperature range of -40°C to 85°C. The 24PC sensors have the flexibility to be excited with constant current or constant voltage. They are designed and manufactured according to ISO 9001 standards. Suitable for use in medical and industrial applications.
- Pressure range of 100psi, seal material is fluorosilicone
- True wet/wet differential media sensing provides liquid sensing in differential applications
- Provides flexibility in customers' pneumatic designs
- Gives customers greater system flexibility in their designs
- Variety of pressure port types and lead terminations provides application flexibility
- Straight port type
- 1 x 4 SIP termination, 15.2mm (0.60 inch) long, normal polarity, differential pressure measurement
- 1 million cycles minimum life cycle
Other details
| Brand |
HONEYWELL |
| Part Number |
24PCFFA6D |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Installation Instructions EN |
|

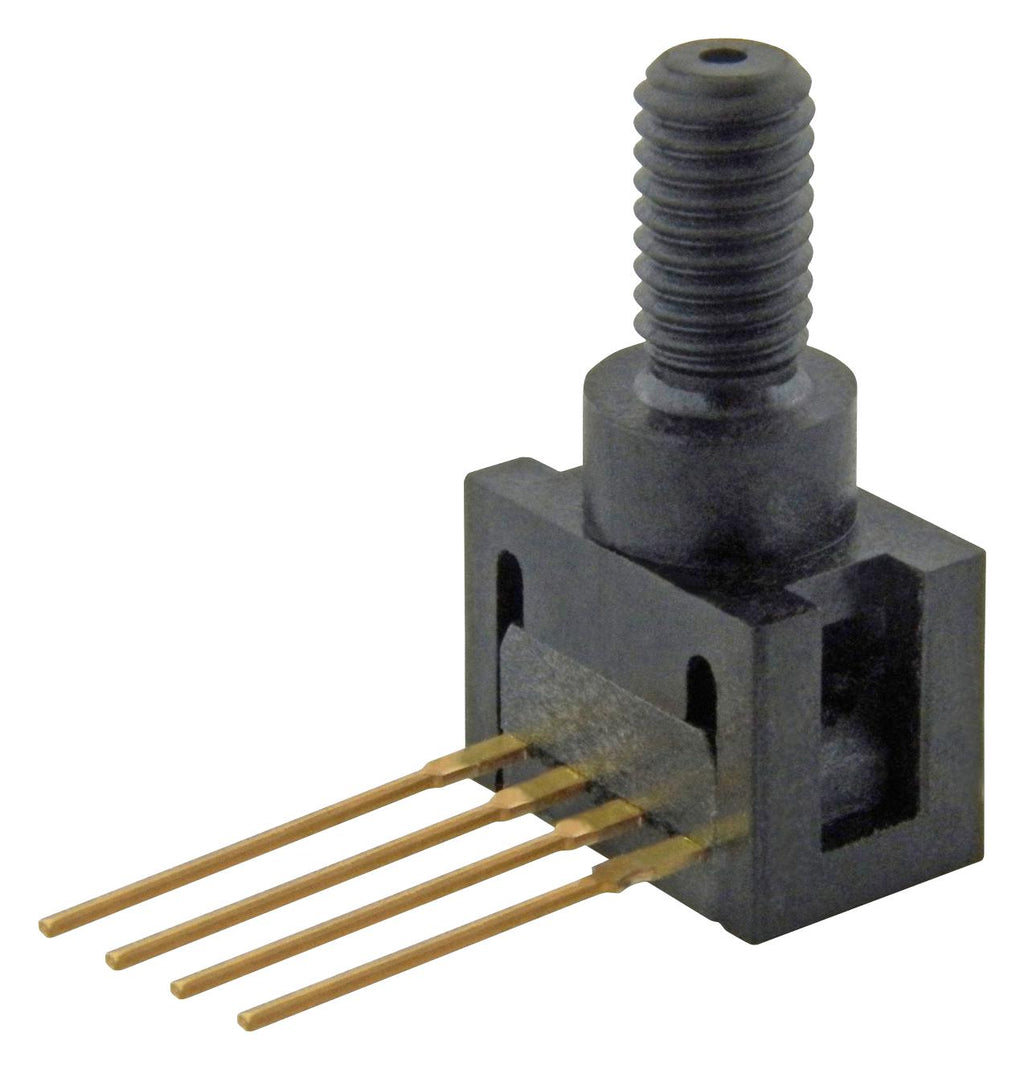

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
