Description
Hollyland Syscom 421 Overview

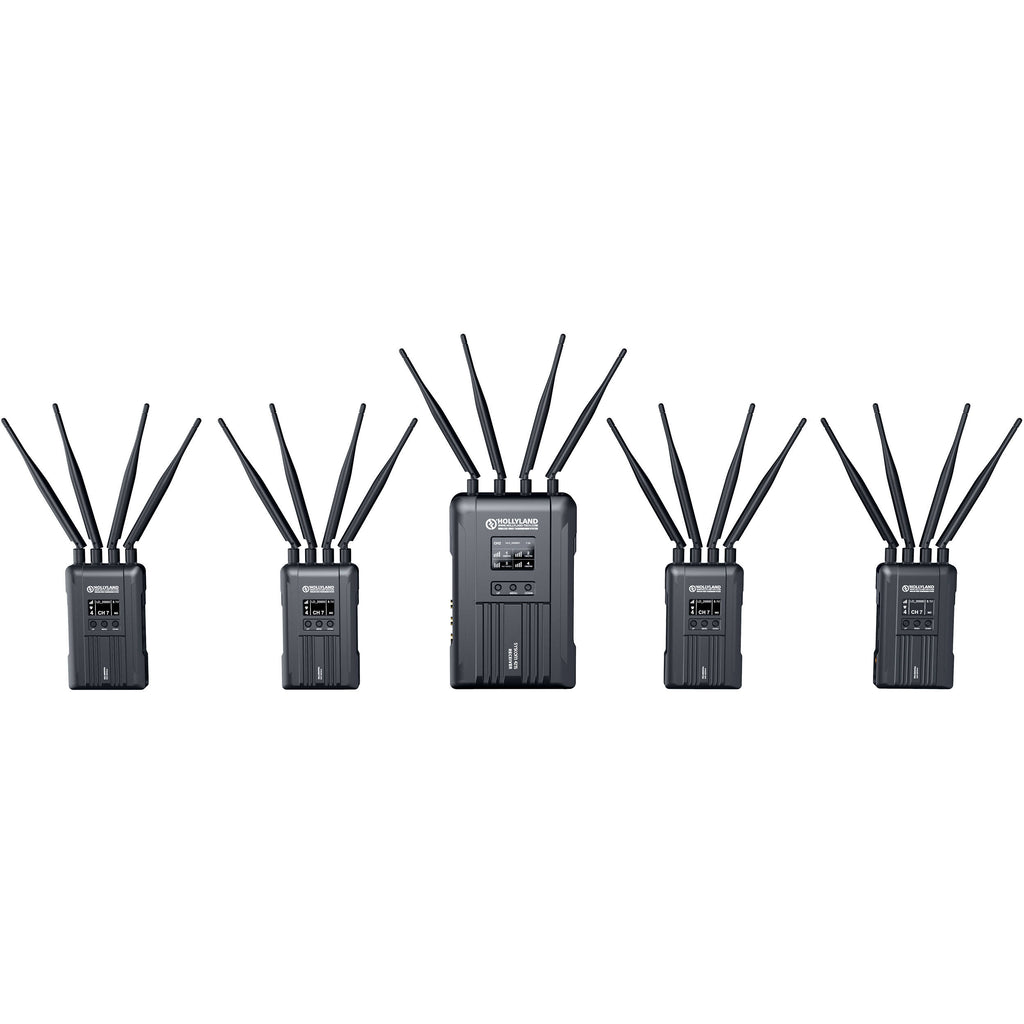

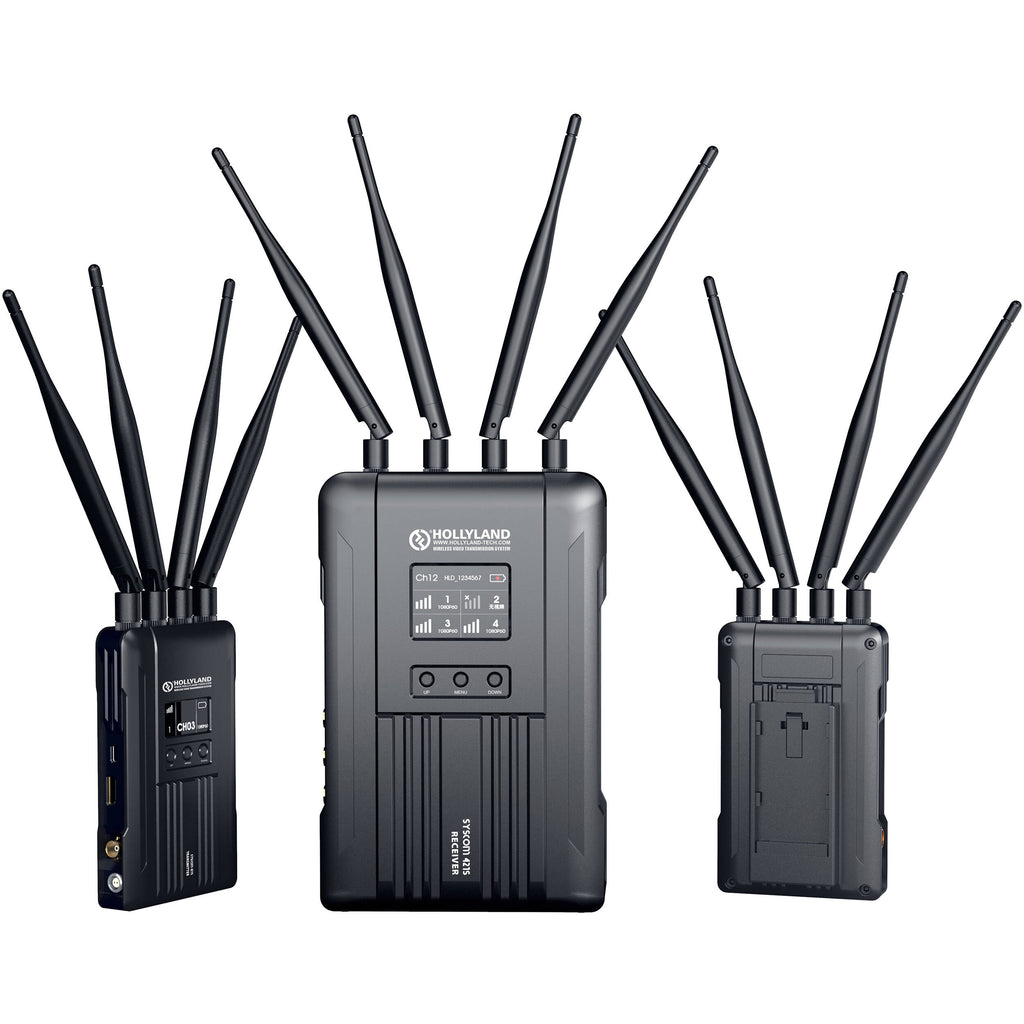

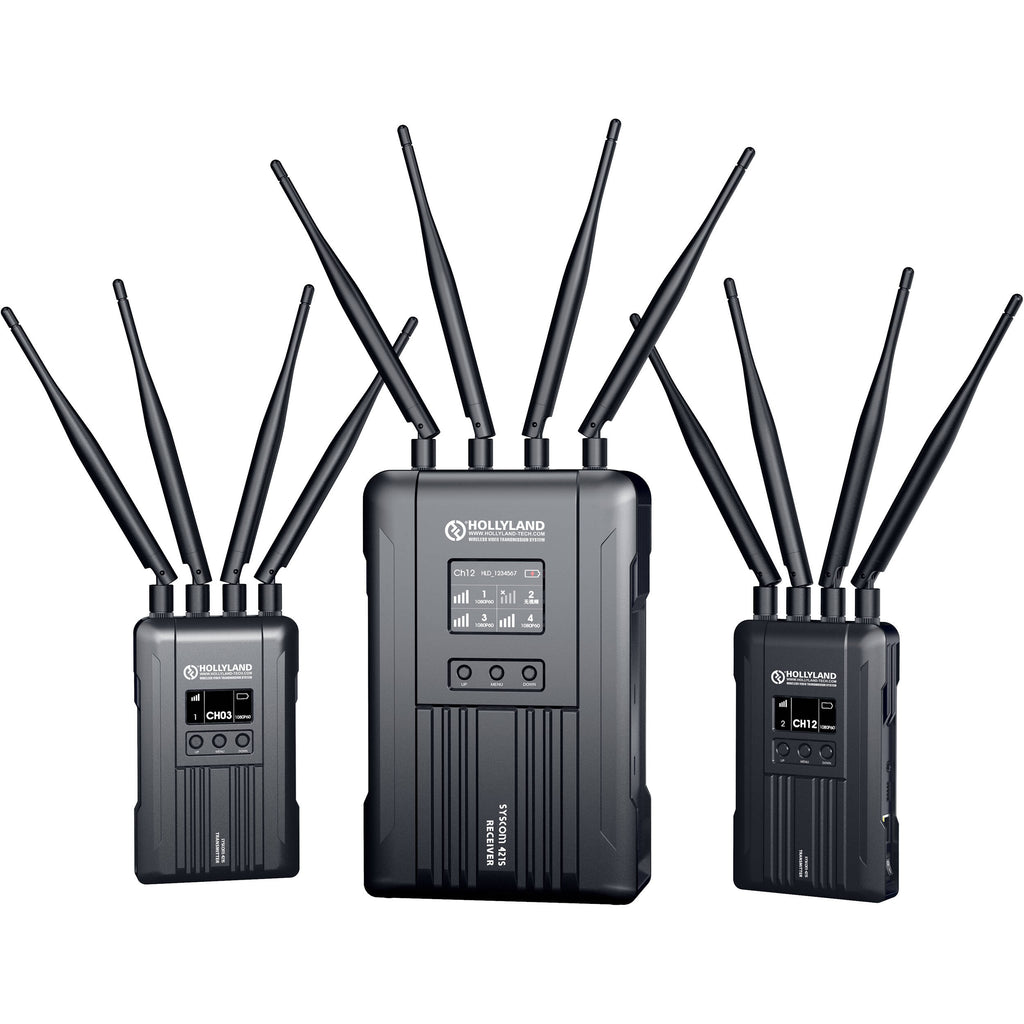

The Syscom 421S 4-Transmitter 1800' A/V Transmission System with Carry Case from Hollyland is a multi-cam wireless video transmission system that communicates with up to four cameras using a single receiver with PTZ control as well as tally. Supporting up to 1080p60 video signals via SDI and HDMI, the transmitter/receiver system offers an 1800' line-of-sight transmission range with 0.07 second latency. The 421S system also supports Ethernet pass-through, so you can stream directly via RTSP to the Internet.

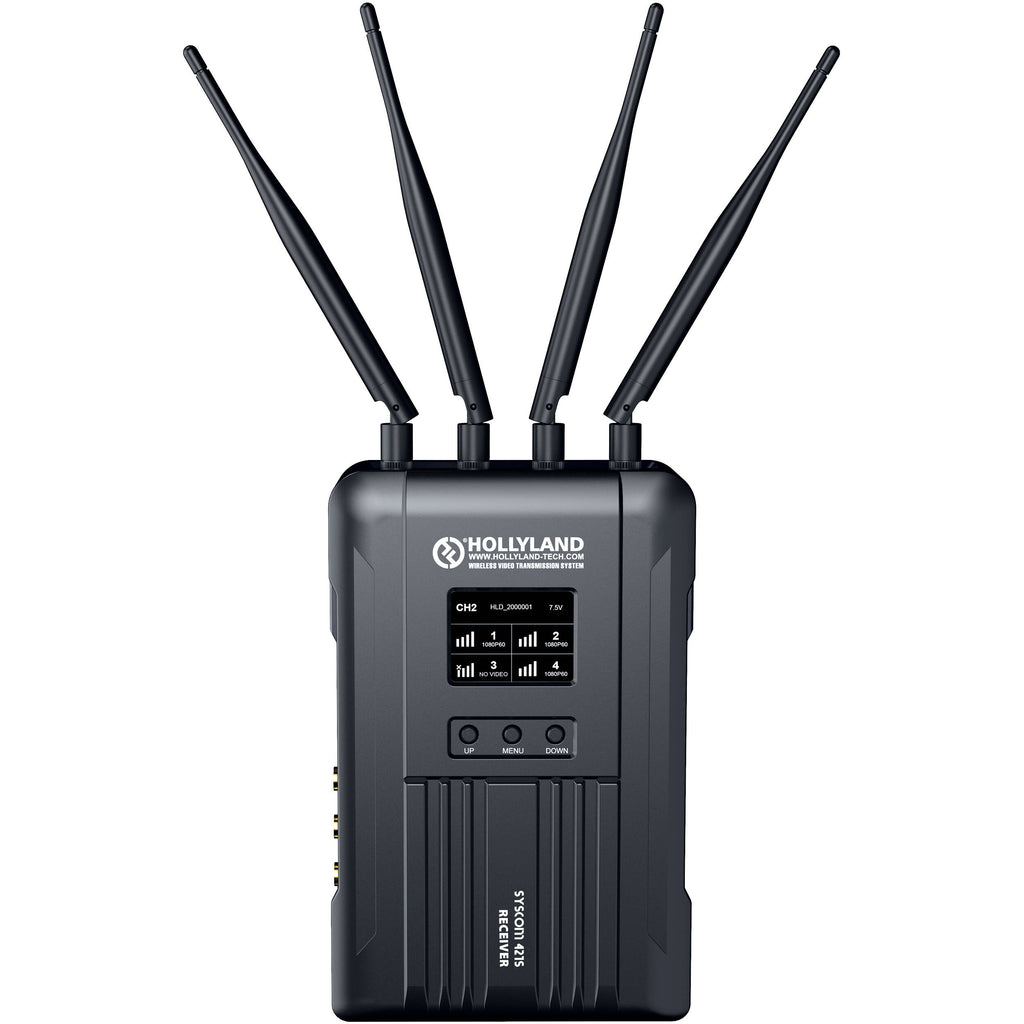

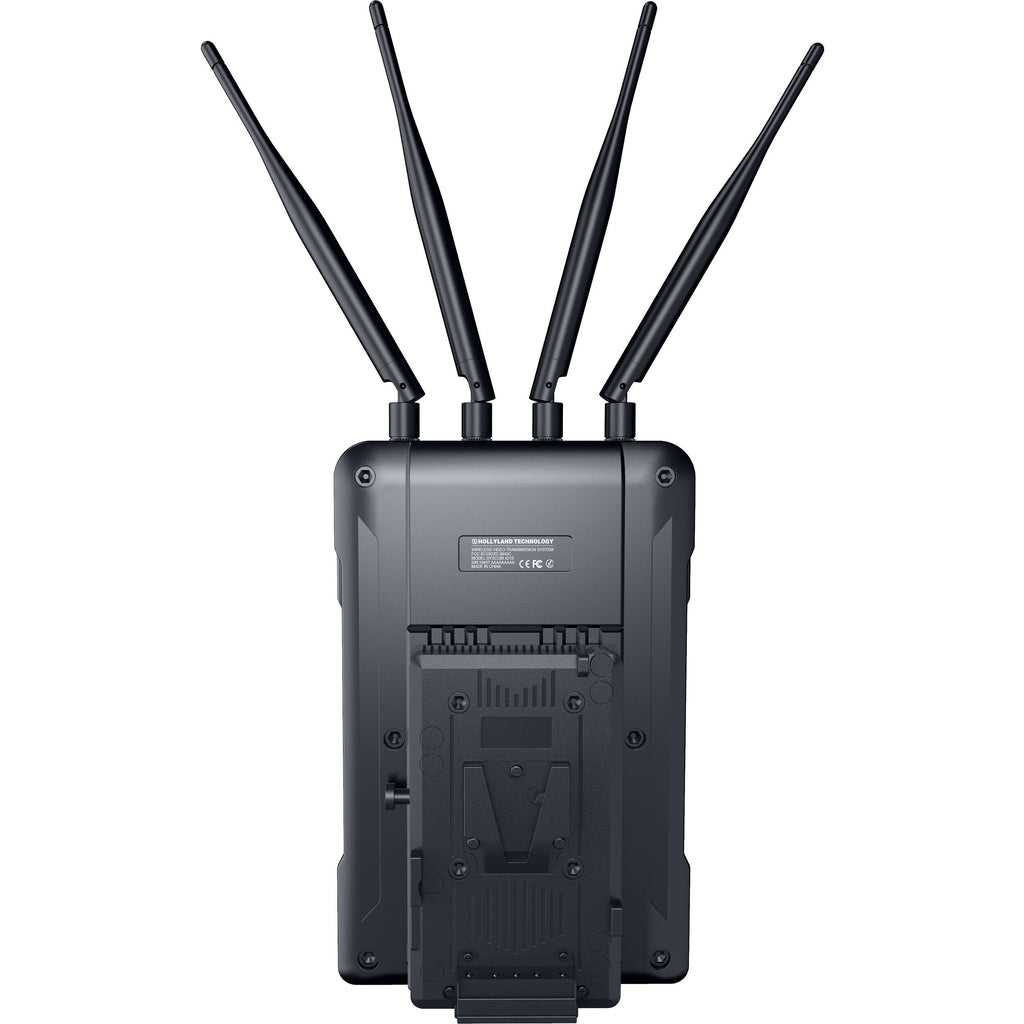

The receiver features four SDI and four HDMI outputs (one for each transmitter) for connecting to a monitor or switcher. You can control PTZ cameras via IP or RS-422/485 serial connections. The transmitters have a dedicated tally output port that support optional tally lights. Both units also have an OLED display that confirms the resolution, transmission channel, signal strength, and other details such as battery power. Each transmitter has an L-series battery plate, and the receiver has a V-mount battery plate. Both Transmitters and receiver also feature a 2-pin power input for alternate DC power options.
- Up to 1080p60 transmitter/receiver system
- 1800' line-of-sight transmission
- SDI and HDMI input
- SDI and HDMI output
- Passes control and tally over LAN
- OLED display
In the Box
- Hollyland Syscom 421S 4-Transmitter 1800' A/V Transmission System
- 4 x Transmitter
- Receiver
- 25 x 5 GHz Antenna
- 4 x Magic Arm (7")
- OTG Cable
- 4 x DC Conversion Cable
- 5 x RS485/RS422 Interface Cable
- Power Adapter
Hollyland Syscom 421 Specs
| Antenna I/O | Transmitter/Receiver: 4 x RP-SMA Female |
| Video I/O | Transmitter: 1 x HDMI Input Transmitter: 1 x BNC Input Receiver: 4 x HDMI Output Receiver: 4 x BNC Output |
| HDCP Support | Not Specified by Manufacturer |
| Embedded Audio | SDI HDMI |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x (Unspecified Type) 2-Pin (36 VDC) Input |
| Other I/O | Transmitter: 1 x USB-C Input Receiver: 1 x USB-A Input Transmitter/Receiver: 1 x RJ45 (LAN) Input/Output Transmitter/Receiver: 1 x Proprietary (RS-422/RS-485) Input/Output |
| Wireless Range | 1800' / 548.64 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | US: 5.1 to 5.9 GHz |
| Latency | < 0.07 sec |
| RF Power | ? 22 dBm |
| RF Sensitivity | -90 dBm |
| Wi-Fi | Yes |
| Bluetooth | None |
| Video Format | HDMI 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 576p: 50 480p: 60 SDI 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 576p: 50 480p: 60 |
| Audio Format | Not Specified by Manufacturer |
| Timecode Support | Yes |
| DC Input Power | 36 VDC |
| Battery Type | Transmitter: 1 x L-Series Receiver: 1 x V-Mount |
| Power Consumption | Transmitter: 12 W Receiver: 32 W |
| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
| IP Rating | None |
| Material of Construction | Metal |
| Dimensions | Transmitter: 5.7 x 3.5 x 1.2" / 144 x 88 x 30 mm Receiver: 9.5 x 5.8 x 2.4" / 242 x 148 x 62 mm |
| Weight | Transmitter: 15.2 oz / 431.5 g, Including Antenna, Battery Plate Receiver: 3.6 lb / 1621 g, Including Antenna, Battery Plate |
| Package Weight | 23.95 lb |
| Box Dimensions (LxWxH) | 21.5 x 18.25 x 9.25" |
