Description
Hollyland Mars 4K Overview
By Photo's
Jennifer Hahn
Add up to 4K30 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight Mars 4K Wireless Video Receiver from Hollyland. The receiver provides HDMI and SDI outputs and features extremely low 66 ms latency with line-of-sight transmission up to 450' to an optional receiver.
The unit features a built-in frequency scanner to select the clearest frequency for your transmission. The Mars 4K receiver is compact in size, features a bright touchscreen LCD display for configuration, and is built with a corrosion-resistant housing. The unit can be powered using a USB-C source, the included locking DC power adapter, or by using a separately available L-series type battery using an optional battery plate.
Key Features
UHD 4K Video Transmission
The Mars 4K supports UHD 4K30 video transmission for the discerning videographer looking for high-resolution production capability. The Mars 4K also supports FHD and HD formats at varying frame rates such as 24, 30, and 60p.
Long Range and Low Latency
The Mars 4K features a long line-of-sight range of 450' and an ultralow latency of 66 ms. Its upgraded dual-core codec chip is capable of a 12 Mb/s data transfer rate.

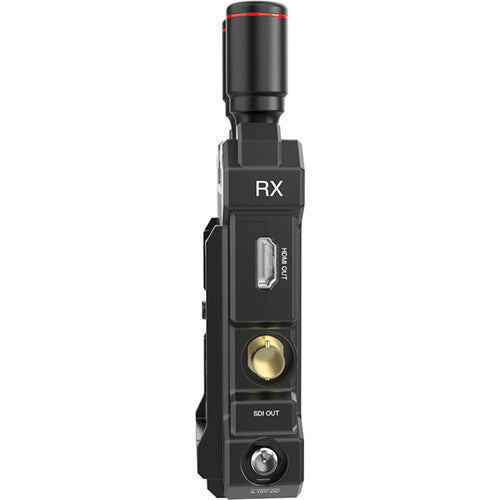

HDMI and SDI Interfaces
The Mars 4K receiver supports HDMI and SDI outputs for expanded connectivity and compatibility. The SDI ports provide expanded frame rate flexibility for broadcast and production frame rate standards and compatibility through production and postproduction.
Form Factor
The Mars 4K features corrosion and wear resistance for durability. The design form factor optimizes operational functionality for fast configurations with wiggle-free, bullet-styled antennas attached.
Smart Channel Scanning
Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. An intelligent channel scan helps determine which ones are occupied and selectable.
Color Touchscreen LCD
The Mars 4K features a color touch LCD with a user-friendly UI design that enables quick configuration and status checks. Its gamepad-styled button dramatically improves the operational setup experience.
Multiple Power Options
The Mars 4K supports various DC power options: 6 to 16 VDC coax input, L-series/NP-F batteries, and USB-C chargers.
App Monitoring
The Hollyview app for Android and iOS allows you to monitor your transmission on a smartphone or tablet. It allows you to transmit to apps and receivers in the following configurations:
- Transmitter to 1 receiver + 2 apps
- Transmitter to 4 apps
- Mars M1 wireless transceiver monitor to 1 receiver and 2 apps
UPC: 191460002915
In the Box
- Hollyland Mars 4K Wireless Video Receiver
- 2 x Antenna
- Locking DC Adapter
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Transmitters & Receivers (Not Included)
Hollyland Mars 4K Specs
Inputs / Outputs
| Antenna I/O | 2 x RP-SMA Male |
| Video I/O | 1 x HDMI Output 1 x BNC Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | None |
| Power I/O | 1 x Barrel Input 1 x USB-C Input |
Wireless
| Wireless Range | 450' / 137.2 m (Line-of-Sight) |
| Channel Bandwidth | 20 MHz |
| Frequency Range | US: 5.1 to 5.8 GHz |
| Latency | 66 ms |
| RF Power | 21 dBm |
| RF Sensitivity | -90 dBm |
| Wi-Fi | Wi-Fi 4 (802.11n) |
| Bluetooth | None |
| Mobile App Compatible | Yes |
Format Support
| Video Format | HDMI UHD 4K: 30 1080p: 60/30/24 SDI 1080p: 60/59.94/30/29.97/24/23.98 |
| Timecode Support | Yes |
Power
| DC Input Power | 6 to 16 VDC |
| Power Consumption | 8.5 W |
Mounting
| Mounting | 1 x 1/4"-20 Female |
Environmental
| Environmental Protection | None |
| Operating Temperature | 14 to 140°F / -10 to 60°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
General
| Dimensions | 4.5 x 2.6 x 1.3" / 115 x 65 x 32 mm |
| Weight | 7.9 oz / 223 g, Excluding Antenna |
Packaging Info
| Package Weight | 1.505 lb |
| Box Dimensions (LxWxH) | 7.9 x 5.7 x 3.1" |
