Description

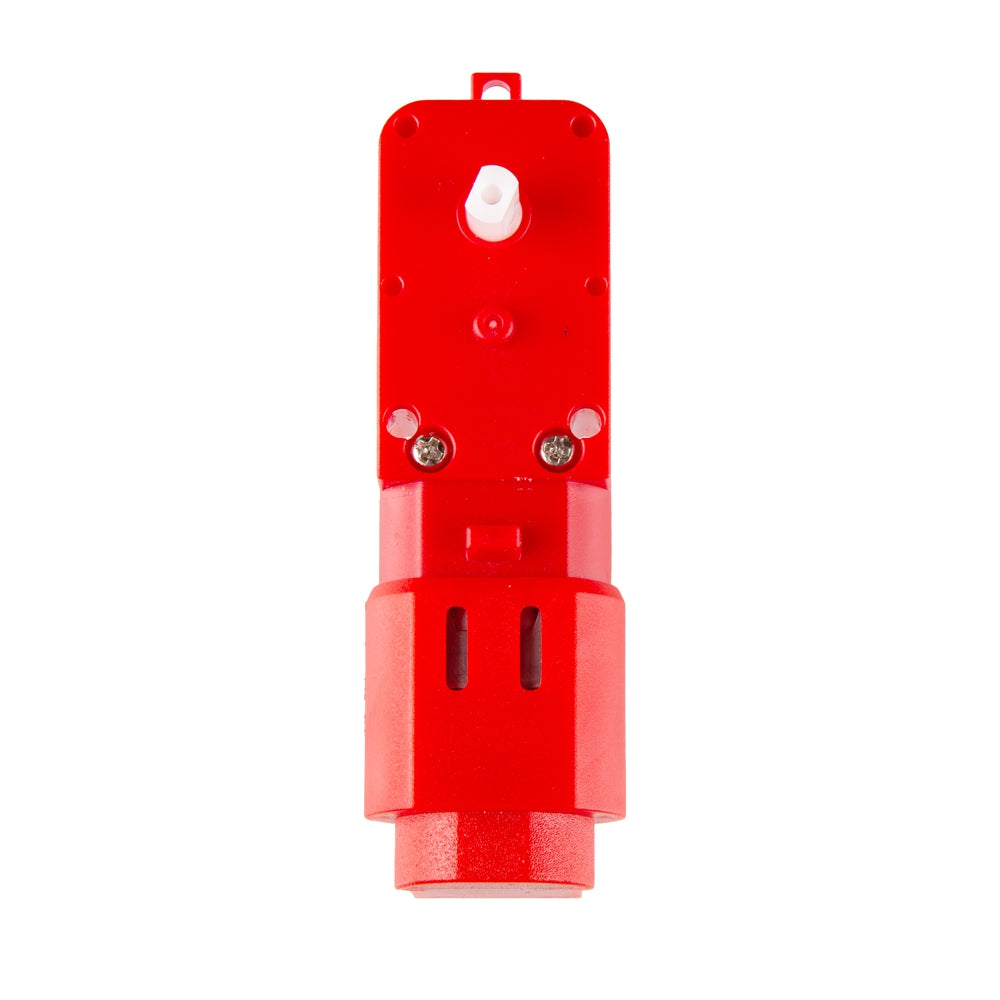

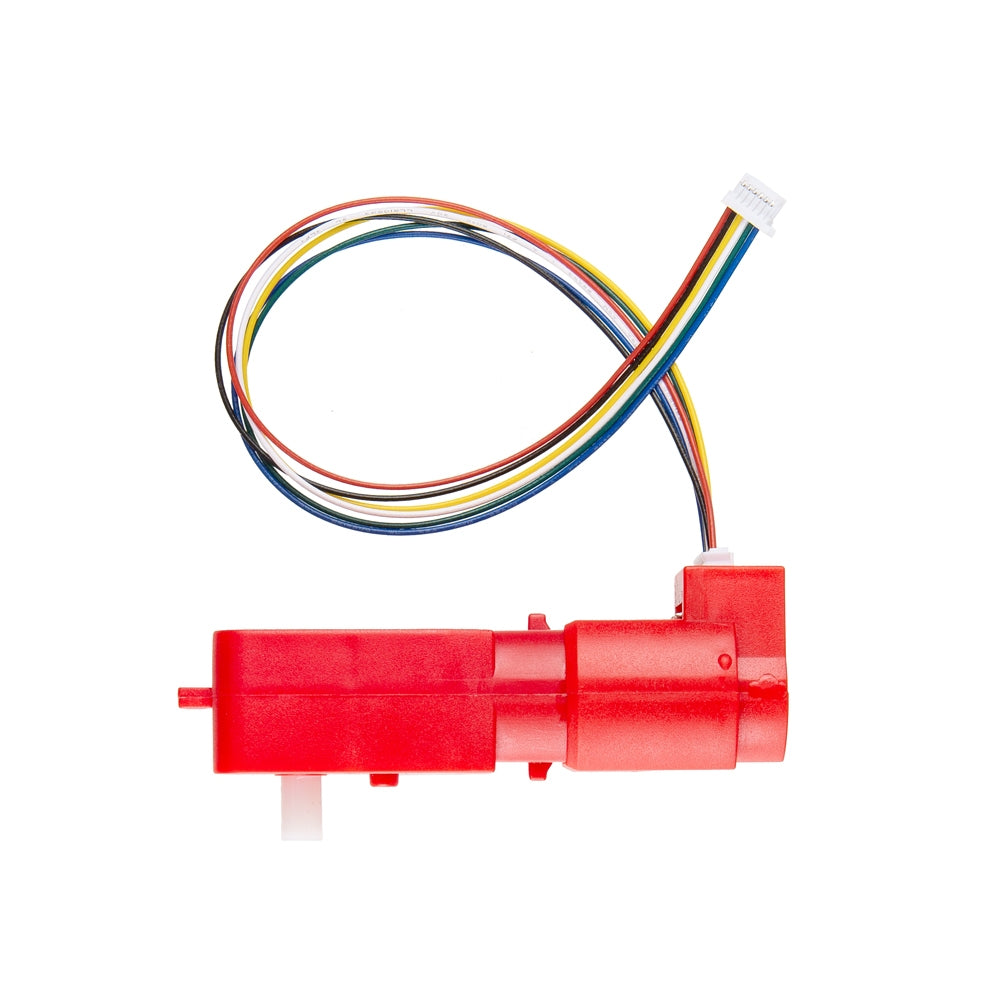

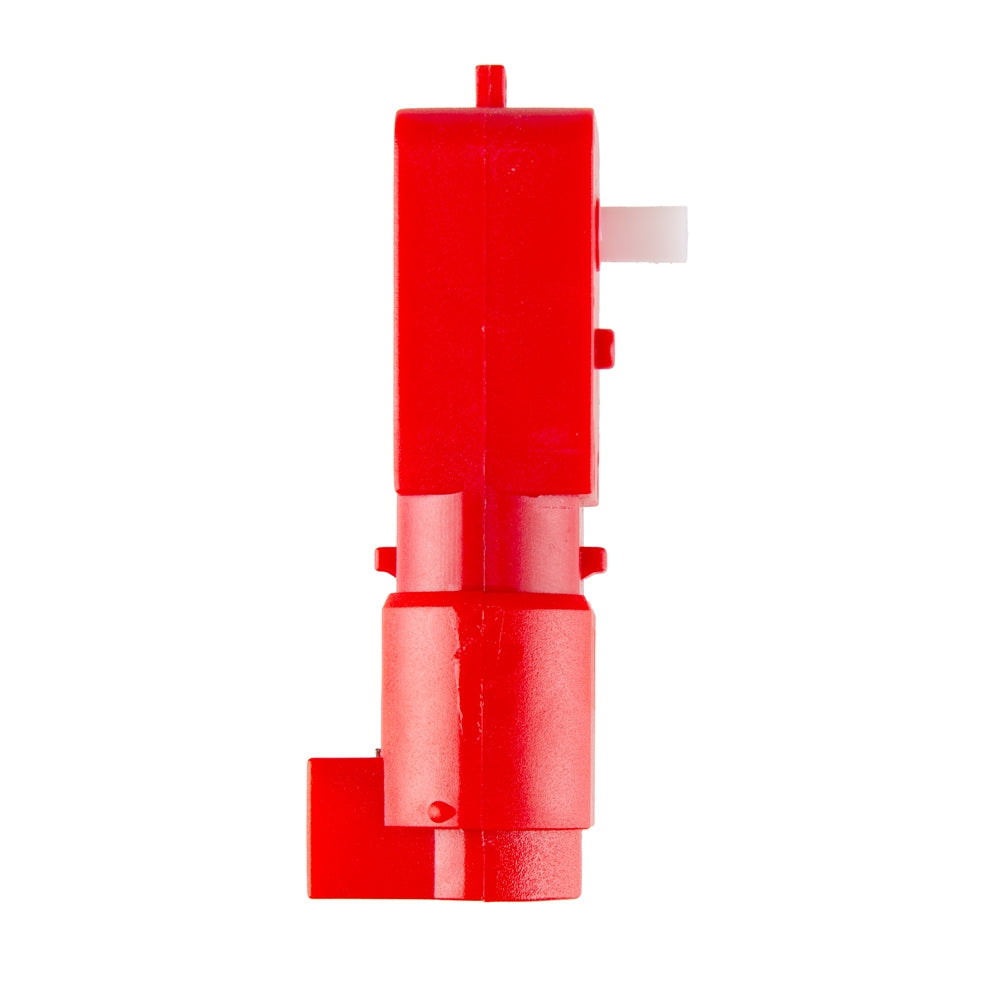

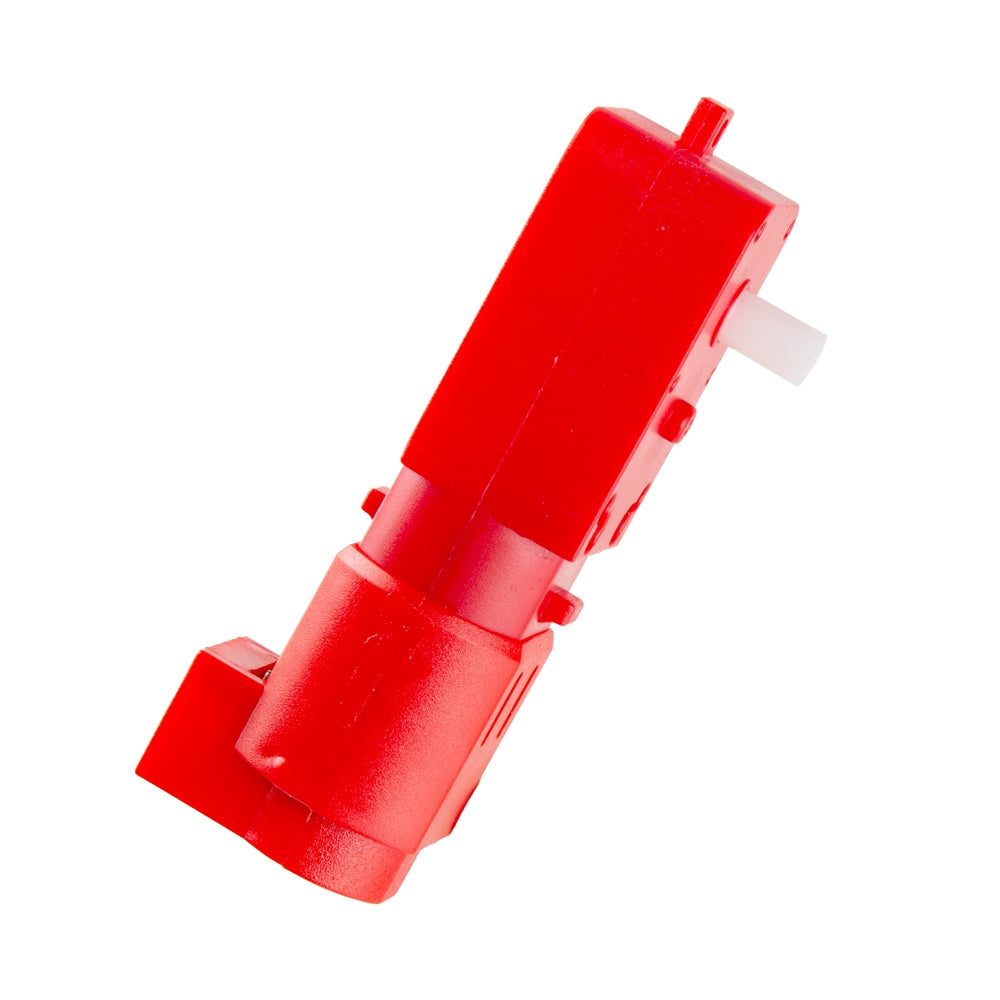

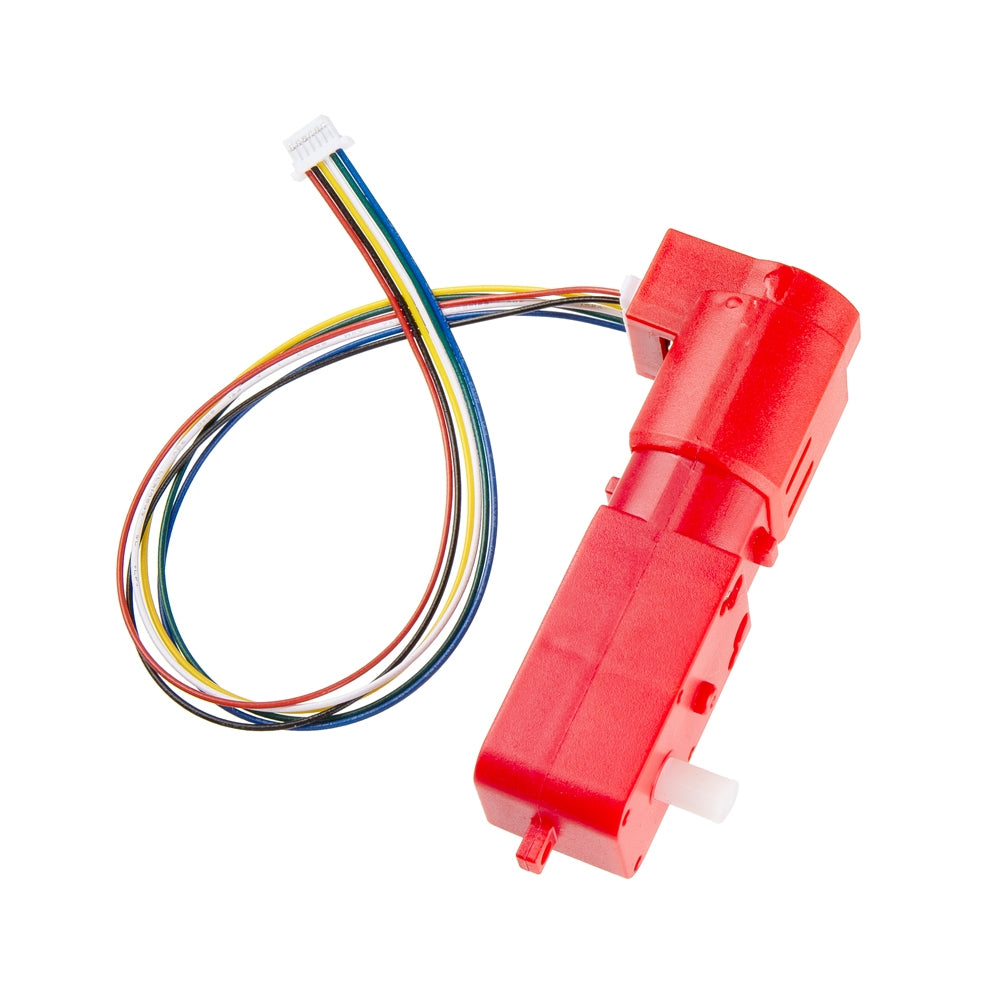

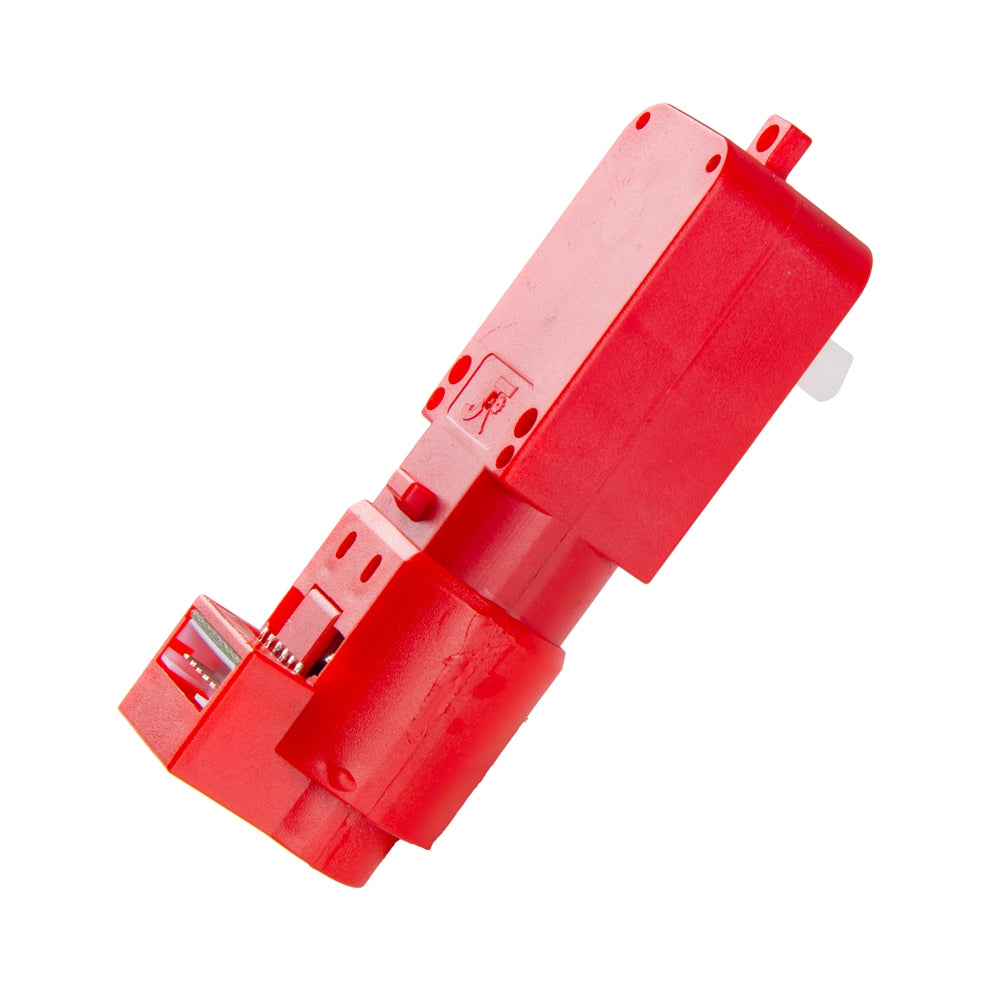

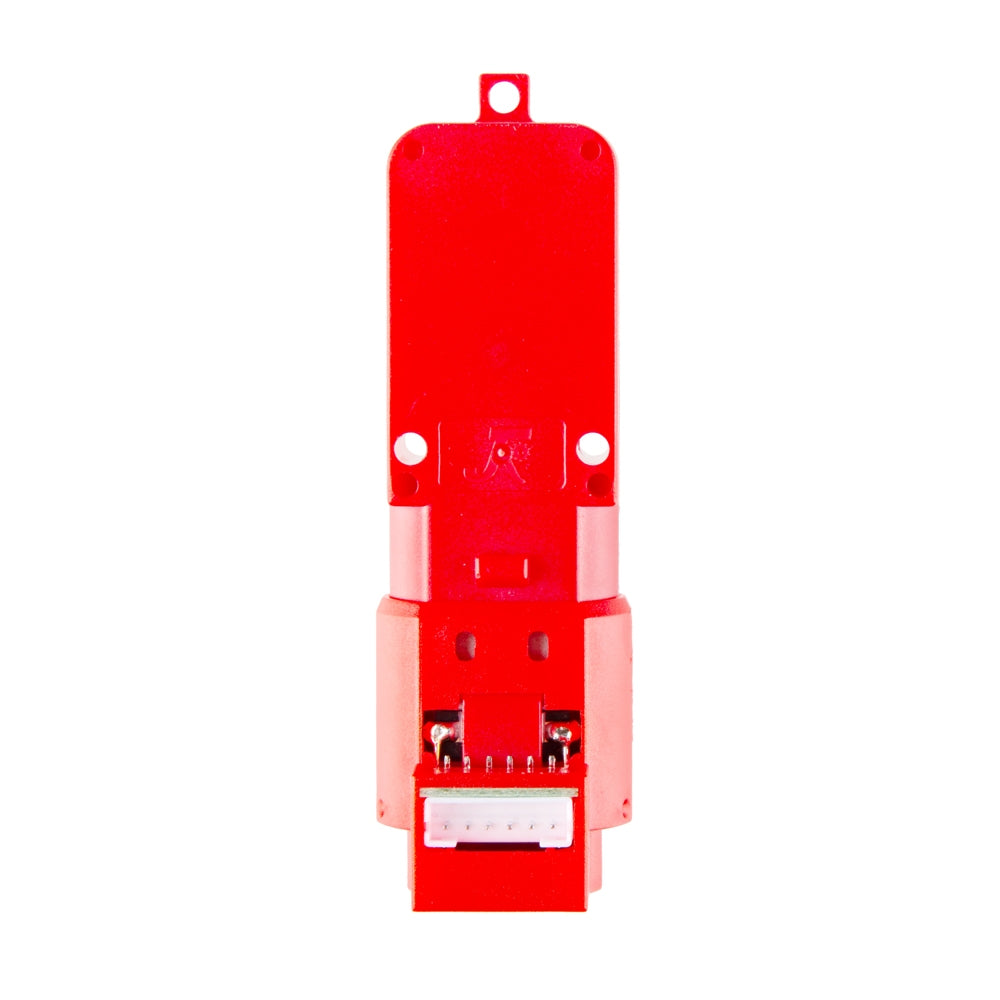

A single easy-to-use hobby gearmotor featuring a 1:48 plastic gearbox and an integrated Hall effect encoder for precise movement tracking.
Features & Specs

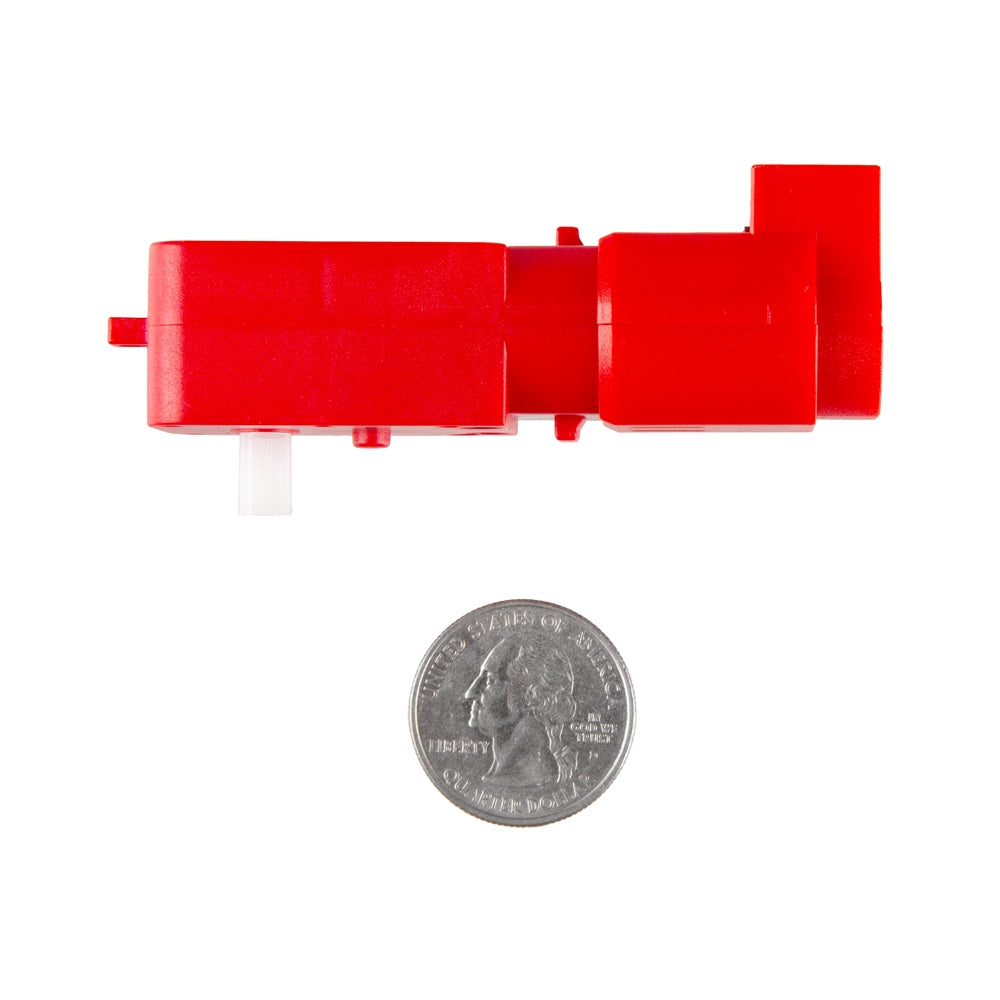

- Dimension (single motor): 80mm x 22.4mm x 25.8mm
- Voltage: 4.5~9V
- Gear Ratio: 1:48
- No Load RPM: 140RPM @4.5V
- No Load Current: 0.15A
- Stall Torque: 0.15N.M
- Stall Current: 0.75A @6V
- All at 6V - as tested in-house:
- No load speed: 240RPM
- No load current: 100mA
- Stall torque: 1kg-cm
- Stall current: 700mA
- Encoder resolution: 585 counts per revolution
Features & Specs
- Dimension (single motor): 80mm x 22.4mm x 25.8mm
- Voltage: 4.5~9V
- Gear Ratio: 1:48
- No Load RPM: 140RPM @4.5V
- No Load Current: 0.15A
- Stall Torque: 0.15N.M
- Stall Current: 0.75A @6V
- All at 6V - as tested in-house:
- No load speed: 240RPM
- No load current: 100mA
- Stall torque: 1kg-cm
- Stall current: 700mA
- Encoder resolution: 585 counts per revolution
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2783.2 |
| 3-5 | ₹ 2754.8 |
| 5-10 | ₹ 2698.0 |
| 10+ | ₹ 2641.2 |
Bulk discount will be automatically applied during checkout based on quantity.
