Description

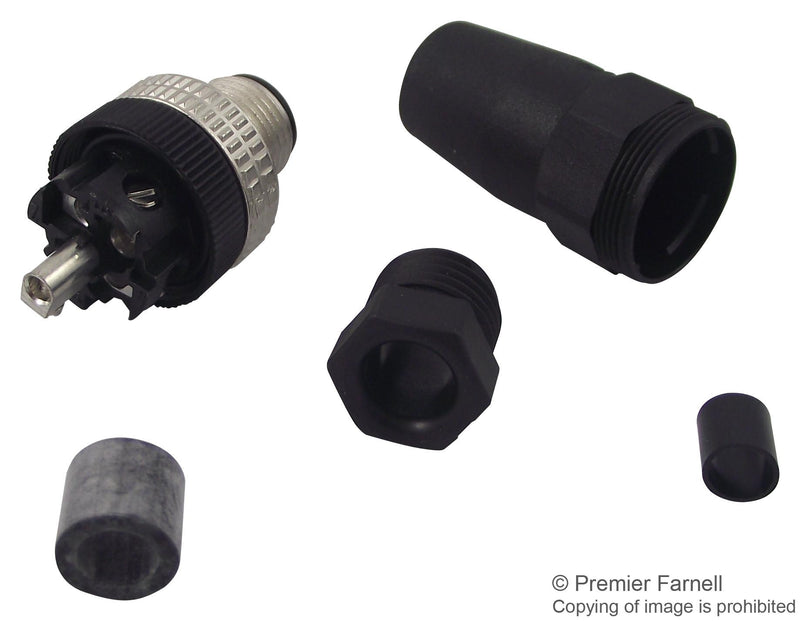

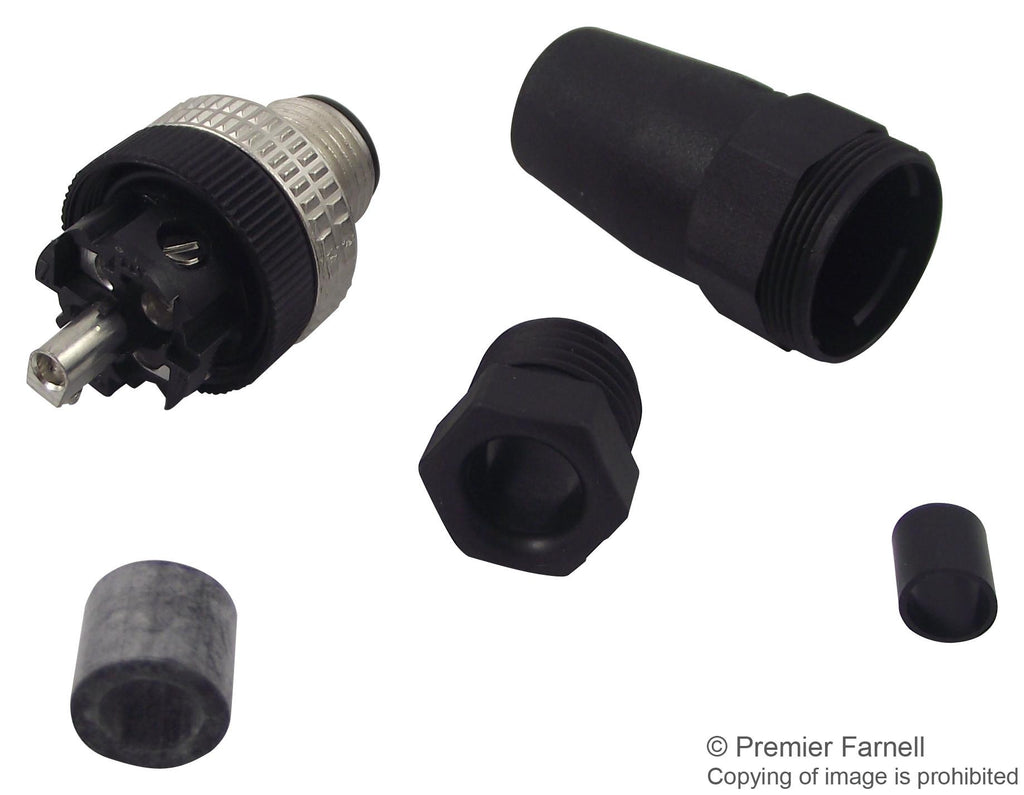

The ELST 5012 PG7 from Hirschmann is an E series, M12 straight circular cable plug connector with 5 pin contacts for self assembly. This connector is used for connection of inductive or capacitive proximity switches, photoelectric barriers and pressure operated switches.
- IP67 degree of protection class according to IEC 60529 standard
- Strain relief by means of clamping cage
- Operating temperature range from -25�C to 90�C
- Cable accommodation diameter of 4mm to 6mm (0.160inch to 0.235inch)
- Operating voltage of 50V
- Approved by IEC 60947-5-2 standard
- Black colour housing
- Rated current of 4A
- Contact material is brass (CuZn)
- Polyamide (PA) housing
Applications
Industrial
Product details
| No. of Contacts | 5Contacts |
| Product Range | E Series M12 |
| Contact Material | Brass |
| Connector Body Material | Nylon (Polyamide) Body |
Other details
| Brand | HIRSCHMANN |
| Part Number | ELST 5012 PG7 |
| Quantity | Each |
| Technical Data Sheet EN |  |
