| ₹ 212.69 includes GST and import duties. | |
| B2B customers can avail ₹ 32.44 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

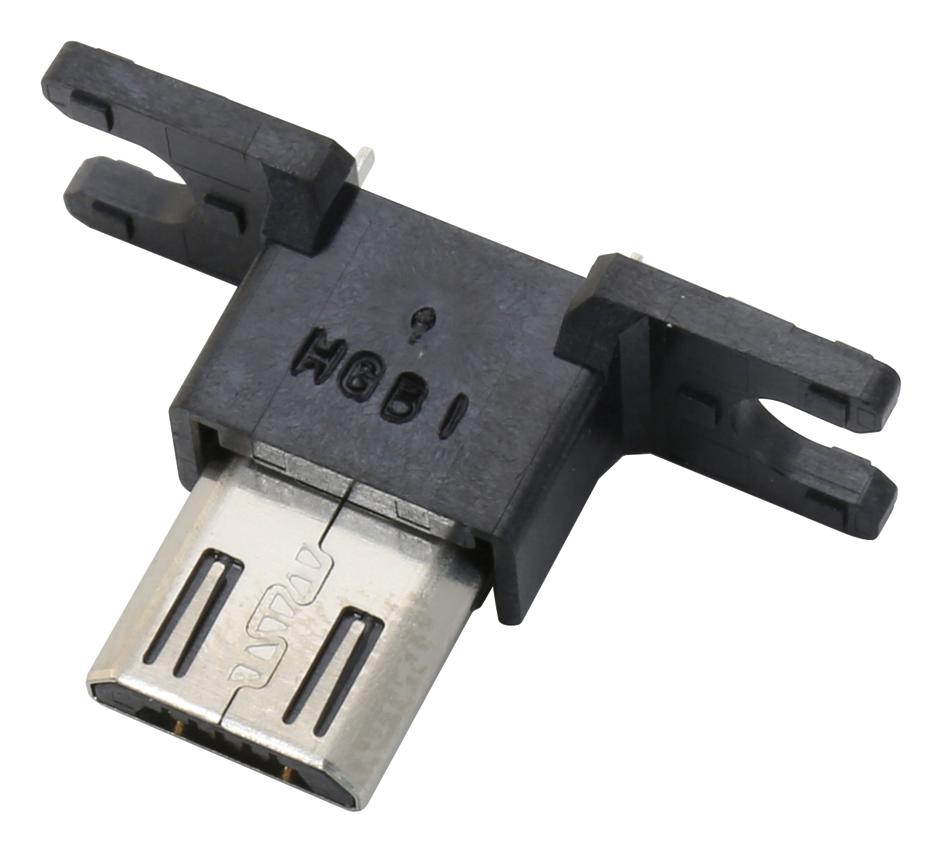

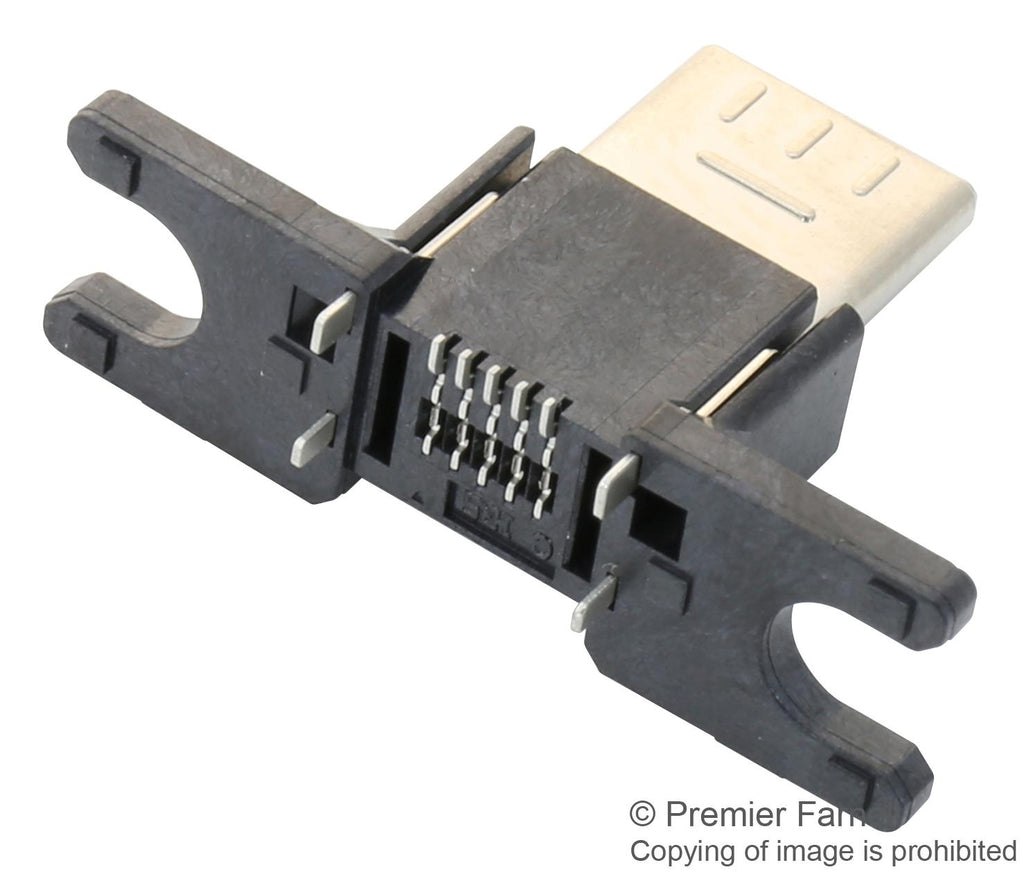

The ZX80-B-5SA from Hirose is a surface mount, micro USB 2.0 type B plug with vertical mounting. It is an extremely small highly reliable connector complying with physical, electrical and environmental requirements of micro USB 2.0 standard.
- Data transfer rate of upto 480Mbit/s
- Standard on board mount
- Without lock mechanism
- Rated current is 1.8A
- Rated voltage is 30VAC
- Contact resistance is 30mohm
- Black colour synthetic resin housing
- Stainless steel shell
- Copper alloy with gold plated contacts
- Operating temperature range from -30°C to 85°C
Industrial, Portable Devices, Communications & Networking
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | HIROSE(HRS) |
| Part Number | ZX80-B-5SA(30) |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 208.44 |
| 3-5 | ₹ 206.31 |
| 5-10 | ₹ 202.06 |
| 10+ | ₹ 197.8 |
Bulk discount will be automatically applied during checkout based on quantity.
