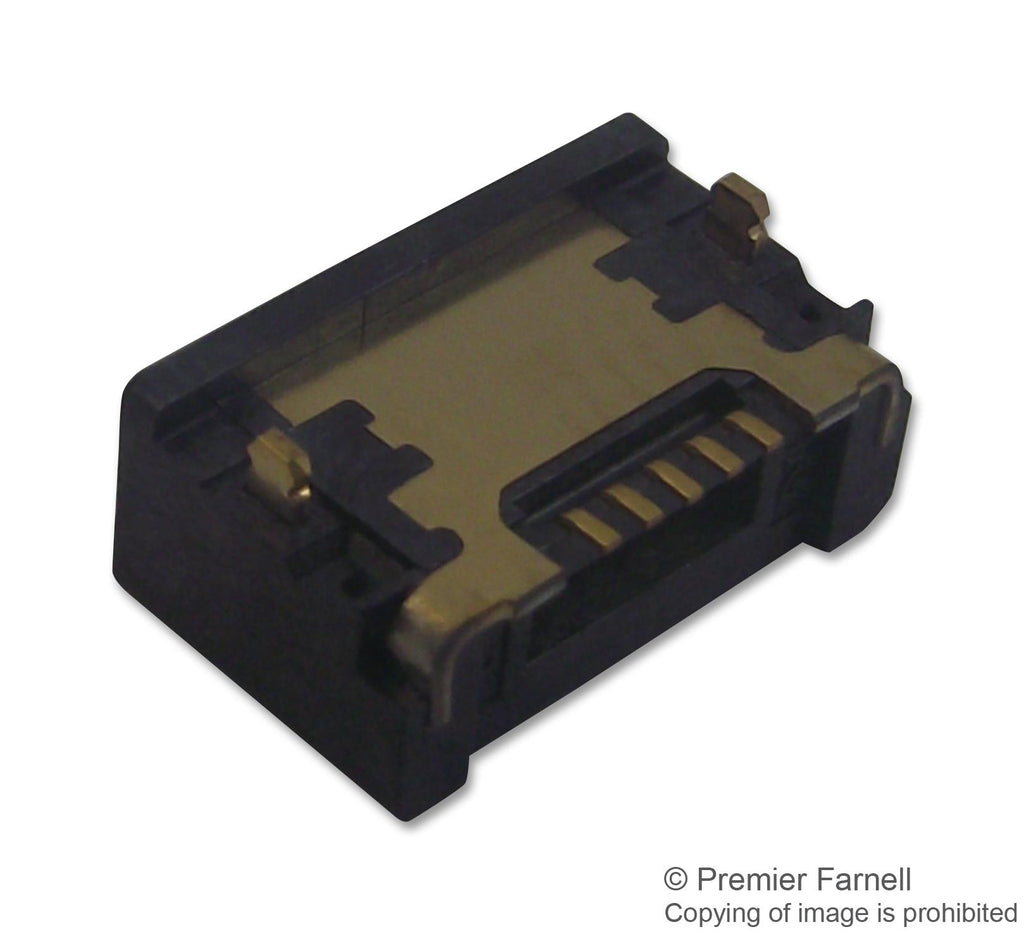

HIROSE(HRS) ZX62WD1-B-5PC ZX62WD1-B-5PC USB Connector Micro Type B 2.0 Receptacle 5 Ways Surface Mount Right Angle

The ZX62WD1-B-5PC is a 5-position male micro-USB Receptacle with selective gold plated copper alloy contacts and black LCP insulator. The ZX series connector has SMT mounting style, right angle connector orientation, standard bottom-mount mounting side, metal shields. Extremely small highly reliable connectors complying with physical, electrical and environmental requirements of Micro-USB standard (USB 2.0). Compared with the standard Mini-USB connectors, the size of ZX connectors is reduced by approximately 60% while still allowing a high-speed data transfer of 480 Mbps, specified in USB 2.0. A smooth mating and unmating operation results in less wear and a longer product life. The unique Hirose active latch mechanism produces a reliable and durable connector. Even after repeated use, the user will experience a smooth click sensation when mating the connectors.

• Size reduction
• Smooth mating and unmating
• Hirose was the first company to obtain a Micro-USB certification (TID number)
• 1.8A Rated current
• 30VAC Rated voltage
• 30mR Maximum contact resistance
• 100VAC Maximum withstanding voltage
• 10000 Mating/unmating cycles

Applications

Industrial

Other details

Brand	HIROSE(HRS)
Part Number	ZX62WD1-B-5PC
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
CAD Multiple Formats EN
Drawing EN
Application Note EN
