| ₹ 814.68 includes GST and import duties. | |
| B2B customers can avail ₹ 124.24 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

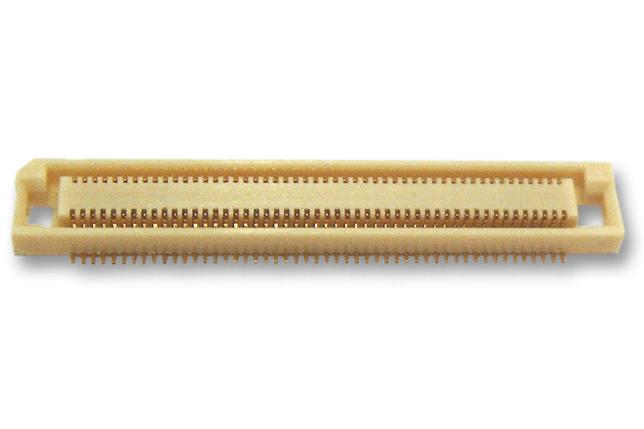

The FX8C series from Hirose are surface mount, single connected vertical board to board receptacles with 0.6mm pitch spacing. These connectors have built-in guide ribs and chamfer which allows for ±0.6mm of misalignment and ensures easy mating.
- Stacking height of mating connector is 5mm
- SMT coplanarity
- 100 contacts
- Rated voltage of 100VAC and rated current of 0.4A
- Operating temperature range from -55°C to 85°C
- Phosphor bronze contacts with gold plating
- Flammability rating meets UL94 V-0, light brown colour polyphenylene sulphide (PPS) insulator
- Misinsertion prevention
- Maximum contact resistance of 80Mohm
- Mating cycles is 50
Industrial
Other details
| Brand | HIROSE(HRS) |
| Part Number | FX8C-100S-SV(71) |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 798.39 |
| 3-5 | ₹ 790.24 |
| 5-10 | ₹ 773.95 |
| 10+ | ₹ 757.65 |
Bulk discount will be automatically applied during checkout based on quantity.
