| ₹ 682.24 includes GST and import duties. | |
| B2B customers can avail ₹ 104.04 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

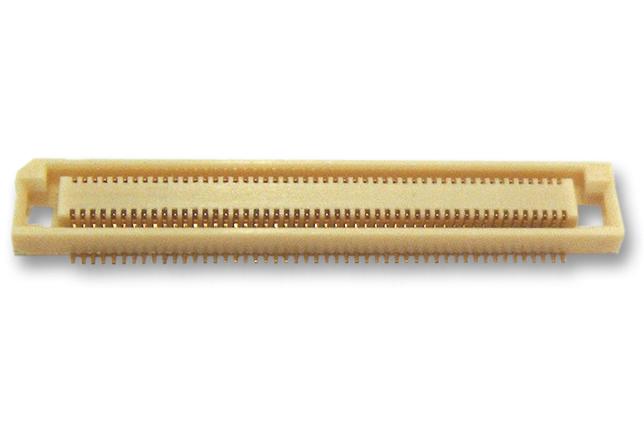

The FX8C series Stacking Connector feature stacking height of mated connector ranges from 3 to 16mm. The coplanar tolerance at the solder area is less than 0.1mm. Built-in guide ribs and a chamfer allow for ±0.6mm of mis-alignment and ensure easy mating. Bosses located on the bottom side of the connector differ in position and diameter to prevent mis-orientating the parts on the board. In order to enhance mounting reliability and accuracy when mounting two of the same connectors at the same time, Hirose offers the option of having two connectors attached to one another by means of a spacer. Pitch between the two connectors is 11mm.
- SMT Coplanarity
- Mis-insertion Prevention
- Dual Connected Products
Industrial
Other details
| Brand | HIROSE(HRS) |
| Part Number | FX8C-100S-SV5(91) |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 668.6 |
| 3-5 | ₹ 661.77 |
| 5-10 | ₹ 648.13 |
| 10+ | ₹ 634.48 |
Bulk discount will be automatically applied during checkout based on quantity.
