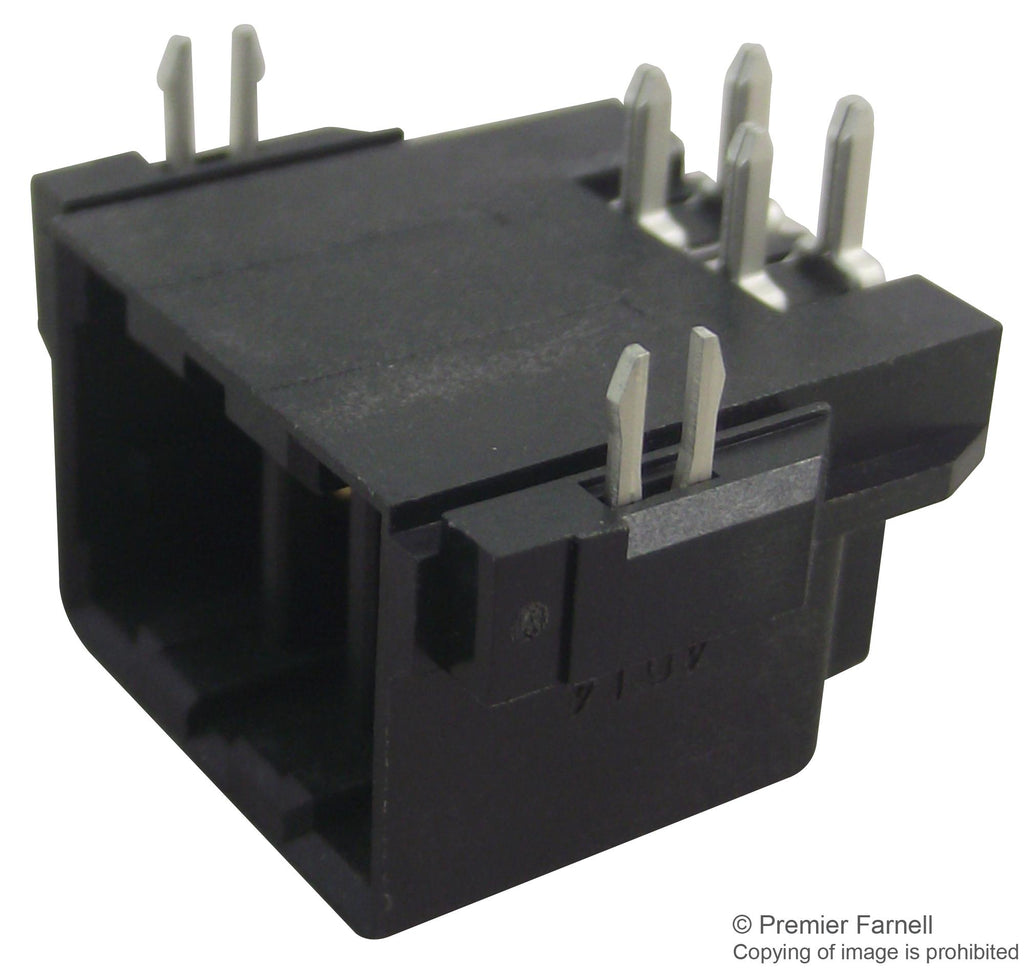

HIROSE(HRS) FX30B-3S-7.62DS FX30B-3S-7.62DS Mezzanine Connector Receptacle 7.62 mm 1 Rows 3 Contacts Through Hole Mount Copper Alloy

The FX30B series from Hirose are through hole right angled board to board stacking receptacles for coplanar /vertical/ parallel connection. These are 7.62mm pitch spacing position misalignment absorption type power supply connectors used for PCB connections. FX30B series utilizes 2mm effective mating length for contacts and provides sufficient margin for its mating stroke. A large induction form has been provided to allow easy mating operations.

• Number of contacts is 3
• Highly reliable multi point contacts and low insertion/extraction force
• Operating temperature range from -55°C to 105°C
• Rated voltage of 250VAC/DC (UL/ cUL) and 150VAC/DC (TUV)
• Current rating is 15A(UL/ cUL) and 16A(TUV)
• Copper alloy contacts with gold plating
• Flammability rating meets UL94 V-0, black colour polyamide (PA) resin insulator
• Contact resistance of 2mohm or less
• UL 1977/cUL E52653 listed, CSA 22.2 No. 182.3-M1987 and TUV R50275872 certified

Applications

Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	HIROSE(HRS)
Part Number	FX30B-3S-7.62DS
Quantity	Each
Technical Data Sheet EN
Drawing EN
CAD Multiple Formats EN
