Description

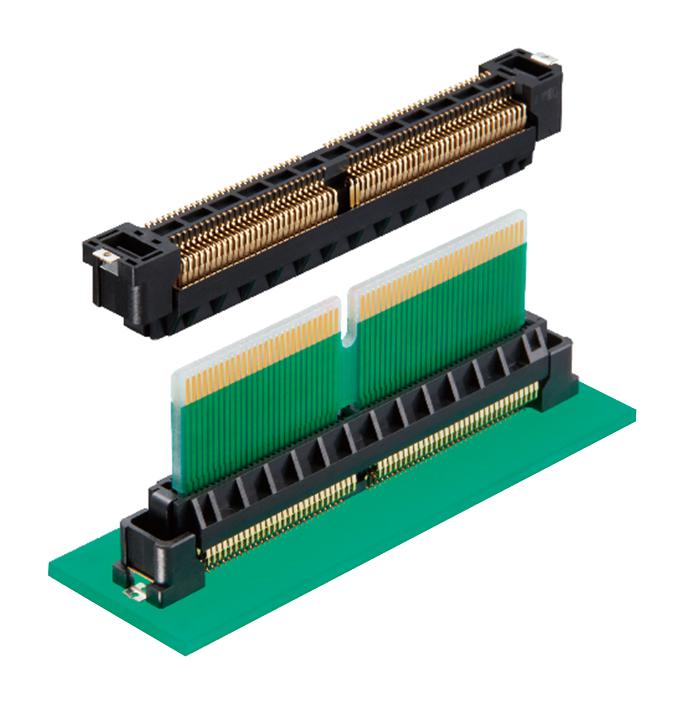

This is a FX27-40S-0.8SV Card Edge Connector , Dual Side, 1.6 mm, 40 Contacts, PCB Mount, Straight, Surface Mount New product from HIROSE(HRS) with the model number FX27-40S-0.8SV
Product details
| Card Edge Connector Type | Dual Side |
| Card Thickness | 1.6mm |
| No. of Contacts | 40 Contacts |
| Connector Mounting | PCB Mount |
| Connector Body Orientation | Straight |
| Contact Termination Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating - Mating Side | 0.2µm Gold Plated Contacts |
| Connector Body Material | Nylon (Polyamide) Body |
| Product Range | FunctionMAX FX27 Series |
Other details
| Brand | HIROSE(HRS) |
| Part Number | FX27-40S-0.8SV |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| One Page Summary EN | |
