| ₹ 811.38 includes GST and import duties. | |
| B2B customers can avail ₹ 123.74 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

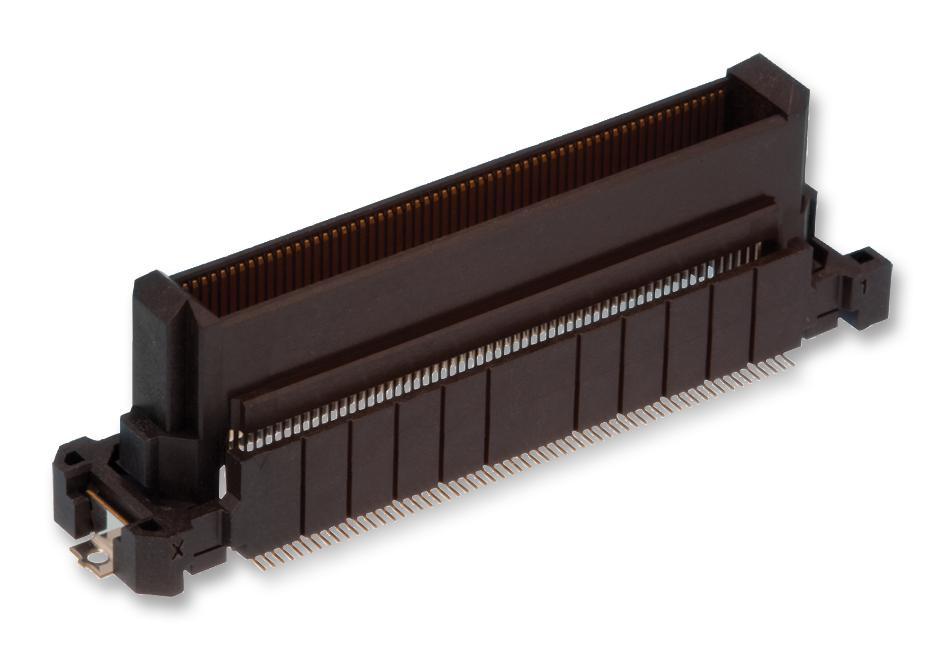

The FX20 series from Hirose are surface mount, vertical board to board headers with floating structure. These connectors with 0.5mm pitch spacing have double beam contact structure which produces a highly reliable contact. FX20 series utilizes 1.5mm effective mating length for signal contacts and provides a sufficient margin for its mating stroke.
- Floating range is ±0.6mm to ±0.8mm in X direction and ±0.6mm in Y direction
- Self aligning and self guiding structure
- 120 contacts
- Operating temperature range from -55°C to 85°C
- Copper alloy contacts with gold plating
- Rated voltage of 50VAC and rated current of 0.5A
- Flammability rating meets UL94 V-0, black colour polyamide (PA) insulator
- Maximum contact resistance of 70mohm
- Available with stacking height of 15mm
- Mating cycles is 50
Industrial
Other details
| Brand | HIROSE(HRS) |
| Part Number | FX20-120P-0.5SV15 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 795.15 |
| 3-5 | ₹ 787.04 |
| 5-10 | ₹ 770.81 |
| 10+ | ₹ 754.58 |
Bulk discount will be automatically applied during checkout based on quantity.
