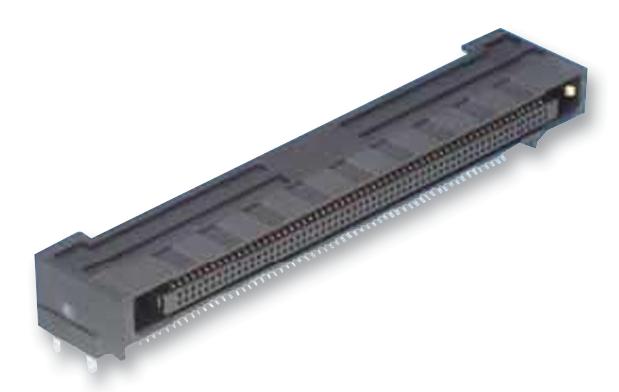

HIROSE(HRS) FX18-60S-0.8SV15 Mezzanine Connector Receptacle 0.8 mm 2 Rows 60 Contacts Surface Mount Phosphor Bronze

The FX18 series from Hirose are surface mount straight board to board receptacles with 0.8mm pitch spacing for coplanar /vertical/ stacking connection. It has multi-functional (MF) contact such as ground contact to enhance grounding, power supply contacts up to 12A to reduce required pin counts and 3 step sequential contacts for grounding and detection. These connectors has large mating guide for easy insertion and mates with signal contact of 2mm.

• Insertion loss to cross talk ratio (ICR) meets IEEE 802.3ap specifications for 10+Gbps
• Pin through hole mounting multifunction contacts increase strength against wrenching
• Stacking heights is 15mm
• 60 contacts
• Operating temperature range from -55°C to 80°C
• Phosphor bronze contacts with gold plating
• Rated voltage of 100VAC and rated current of 0.5A (signal) and 3A (multi functional contact)
• Flammability rating meets UL94 V-0, black colour polyamide (PA) insulator
• Maximum contact resistance of 90mohm
• Mating cycles is 500

Applications

Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	HIROSE(HRS)
Part Number	FX18-60S-0.8SV15
Quantity	Each
Technical Data Sheet EN
Drawing EN
CAD Multiple Formats EN
