Description

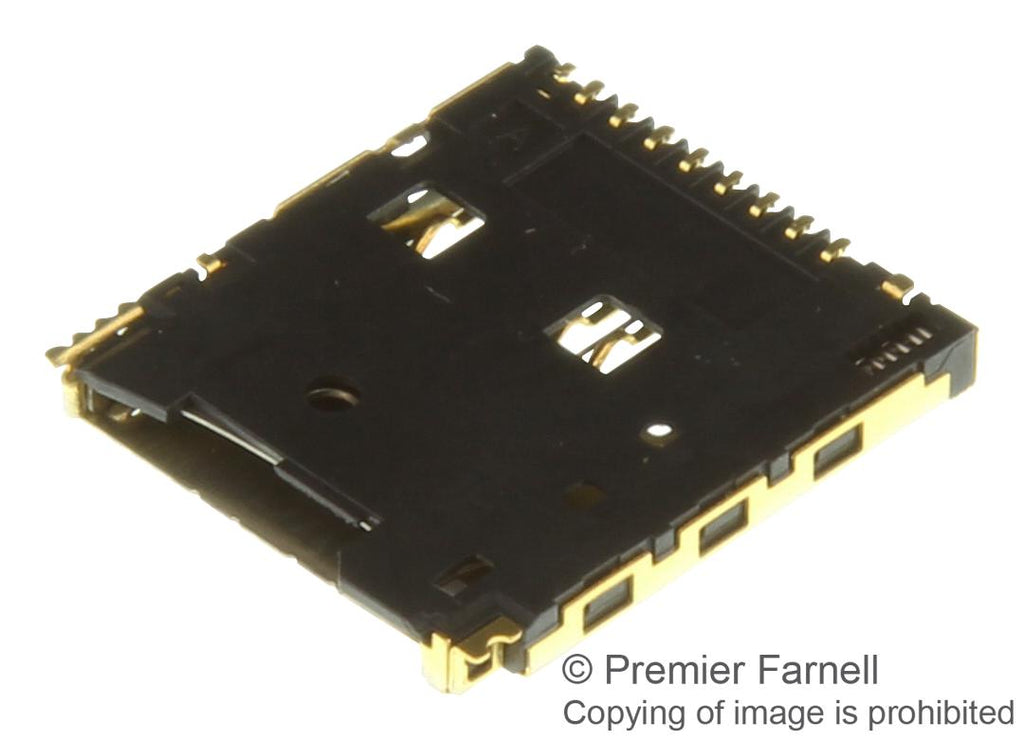

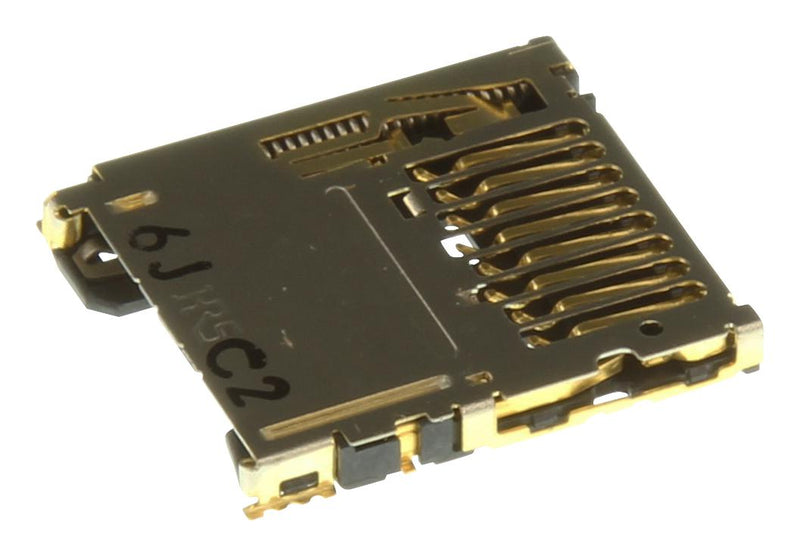

The DM3BT-DSF-PEJS is a 8-position female microSD Card Socket with gold plated copper alloy contacts and a black LCP insulator. The DM3 series connector has reverse on-board mounting side, SMT mounting style, metal shields and push-push eject mechanism. Unique card slot design (patent pending) protects the connector from damage when the card is attempted to be inserted in reverse, allowing it to re-inserted correctly. 4-connection points of the metal cover to the printed circuit board assures secure connection of the ground circuit and provides EMI protection. Despite its small size, high-strengths materials used in the connectors produced a strong and rigid structure. The card detection switch is normally open.
- 0.5A Rated current
- 125VAC Rated voltage
- 100mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 500VAC for one minute Maximum withstanding voltage
- 1000 Mating/unmating cycles
Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | HIROSE(HRS) |
| Part Number | DM3BT-DSF-PEJS |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| CAD Multiple Formats EN | |
