| ₹ 147.29 includes GST and import duties. | |
| B2B customers can avail ₹ 22.46 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The DF60 series 10.16mm Board-to-wire Connector for internal power supply. A secure lock mechanism with a clear tactile and audible click prevents insufficient mating. It is capable of going to a maximum of 45A when using 8AWG with the single position connector. Three independent contact springs provide a secure contact with high contact reliability using 5-point of contact. The lance is actually part of the housing instead of being part of the terminal. This prevents tangled wires during assembly. The addition of a moulded pin on the header allows temporary mounting retention and prevents reverse mounting on the PCB. Glass-reinforced resin is used on pin header to prevent solder cracks due to thermal contraction. The wall structure between contacts isolates the contacts and prevents short circuits from occurring.
- High current capacity
- Secure lock mechanism ensures complete mating
- Highly reliable 5-point contact structure
- Moulded lance design
- Mis-insertion prevention for headers
- Prevention of solder cracks
- Design Prevents short-circuits between contacts
- >2mR Maximum contact resistance
Industrial
Other details
| Brand | HIROSE(HRS) |

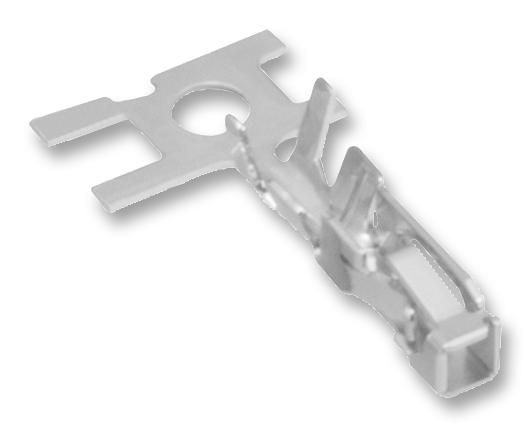

| Part Number | DF60-1012SCFA |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 144.34 |
| 3-5 | ₹ 142.87 |
| 5-10 | ₹ 139.93 |
| 10+ | ₹ 136.98 |
Bulk discount will be automatically applied during checkout based on quantity.
