Description

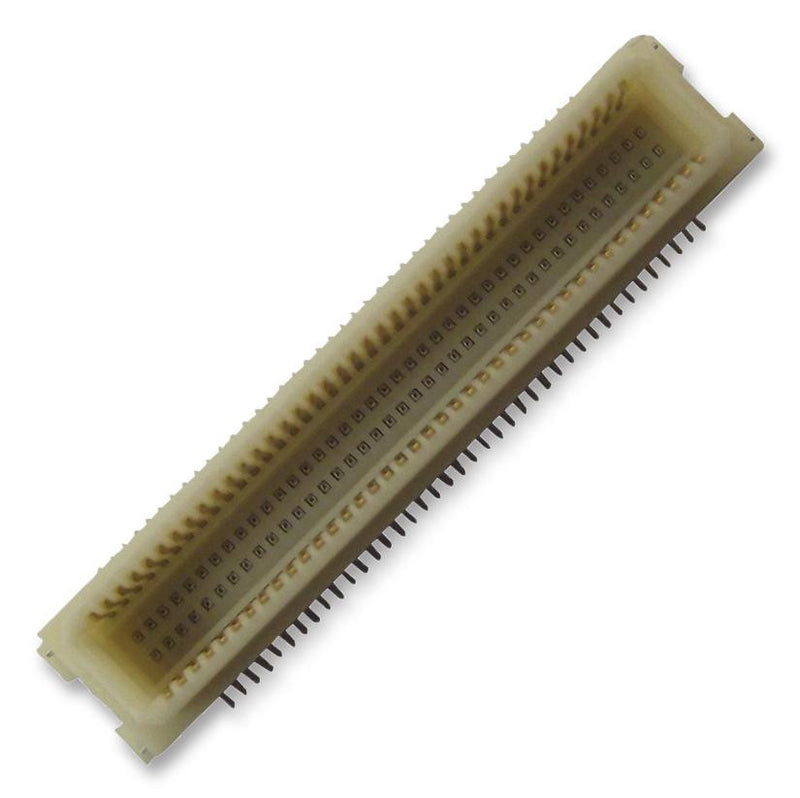

The DF17(4.0)-80DP-0.5V(57) is a 80-position 0.5mm pitch Board-to-board Header with gold plated phosphor copper contacts, a polyamide insulator and tin-lead plated phosphor copper metal fitting. The DF17 series connector has SMT mounting style, straight connector orientation, PCB cleaning and positioning boss.
- 0.3A Rated current
- 50VAC Rated voltage
- 60mR Maximum contact resistance
- 500MR Minimum insulation resistance
- 150V Maximum withstanding voltage
- 50 Mating/unmating cycles
Applications
Audio, Communications & Networking, Imaging, Video & Vision
Product details
| No. of Contacts | 80Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | DF17 Series |
| Contact Material | Phosphor Copper |
| Contact Termination Type | Surface Mount |
| Pitch Spacing | 0.5mm |
| No. of Rows | 2Rows |
Other details
| Brand | HIROSE(HRS) |
| Part Number | DF17(4.0)-80DP-0.5V(57) |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
