HIROSE(HRS) DF11-10DS-2DSA(05) PCB Receptacle Wire-to-Board 2 mm Rows 10 Contacts Through Hole Mount DF11

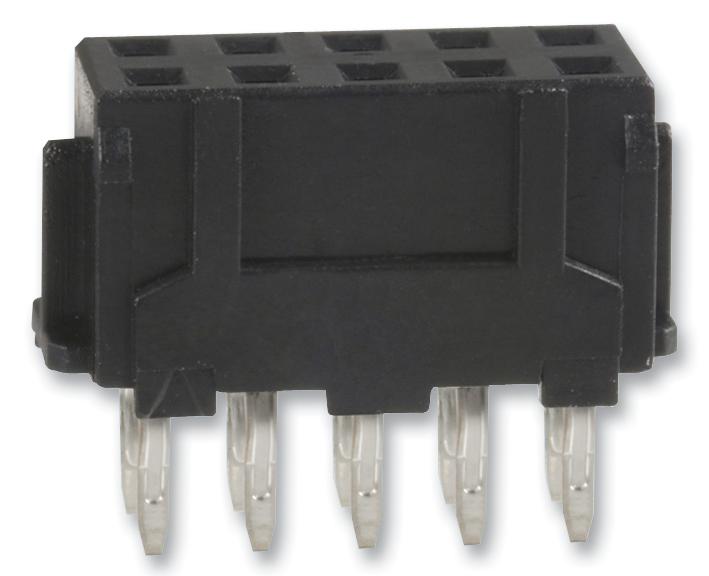

The DF11-10DS-2DSA(05) is a 10-position 2-row 2mm female PCB Wire-to-board Socket with black polyamide insulator, tin plated phosphor copper contact. The DF11 series connector has through hole mounting style, straight connector orientation, standard on-board mounting side and friction locking style. The insulation displacement and crimping methods are prepared for connection. Thus, board to cable, in-line, board to board connectors are provided in order to widen a board design variation. Using the full automatic insulation displacement machine, the complicated multi-harness can be easily connected, reducing the man-hour and eliminating the manual work process.

• Space-saving on board realized
• Broad variation
• Applicable wire covers wide range
• ID type connector achieves connection work
• 2A Rated current
• 250VAC/DC Rated voltage
• 650V Maximum withstanding voltage
• 1.6mm Maximum recommended PCB thickness

Applications

Automation & Process Control

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	HIROSE(HRS)
Part Number	DF11-10DS-2DSA(05)
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD Multiple Formats EN
Drawing EN
