Description
Hikvision DS-7732NI-M4 Overview

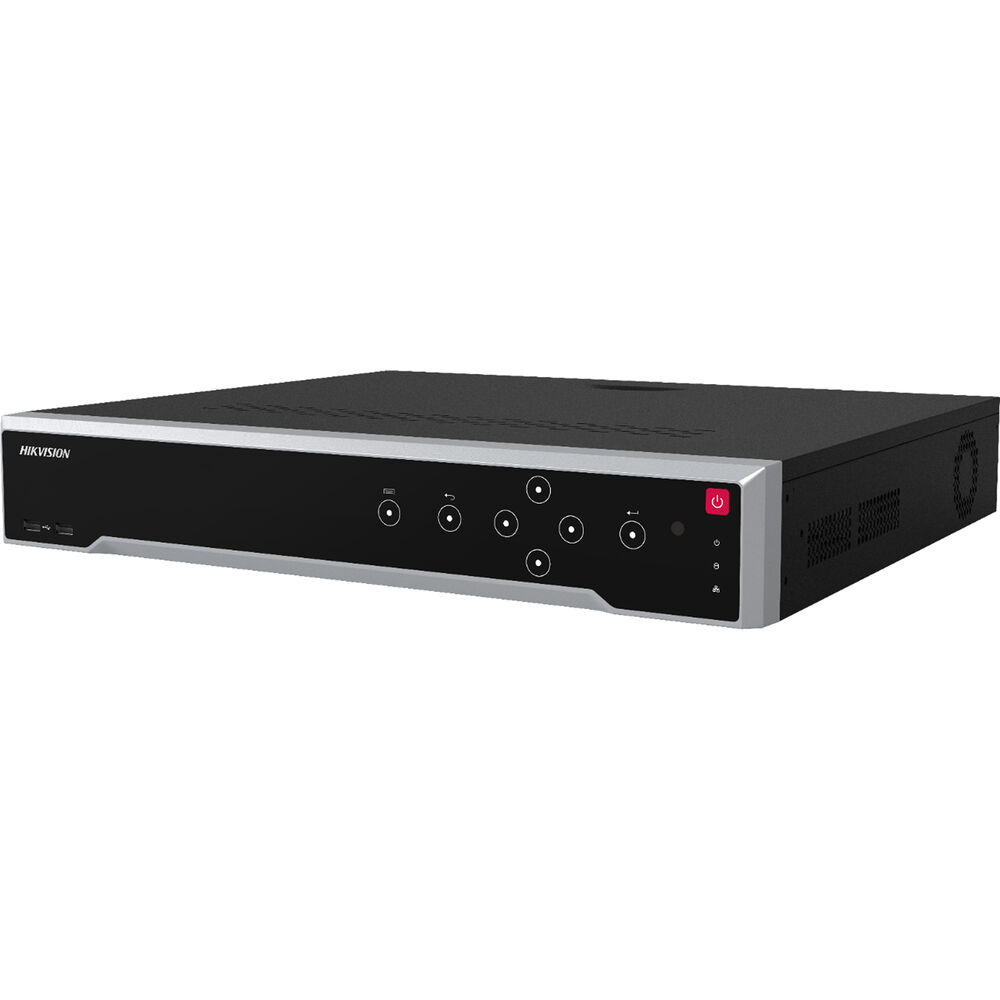

Record from and manage up to 32 cameras with the M Series DS-7732NI-M4 32-Channel 8K NVR (No HDD) from Hikvision. This NVR supports IP cameras up to 32MP. It is equipped with four SATA ports that each support an HDD up to 14TB, for a maximum capacity of 56TB (HDDs available separately). H.265+/H.264+ and H.265/H.264 video compressions keep file sizes manageable while maintaining the best quality possible.
This NVR supports two-way audio. It has a VGA and two HDMI video outputs to connect to external monitors at up to 8K resolution (HDMI 1 output only).
Recording resolution up to 32MP
Simultaneous HDMI 1 and VGA output
Dual-stream recording saves bandwidth
TLS encryption for secure transmission stream
16-channel synchronous playback
Smooth streaming technology
Hik-Connect enables seamless network management
Supports web access without plug-in
Smart & POS Functions
Supports multiple VCA (Video Content Analytics) events
Configurable camera smart functions include: VCA detection (motion, line crossing, intrusion), heat mapping, ANPR (automatic number-plate recognition), and people counting
POS information overlay on live view and playback
POS-triggered recording and alarm
UPC: 842571145984
In the Box
- Hikvision M Series DS-7732NI-M4 32-Channel 8K NVR (No HDD)
- Limited 3-Year Manufacturer Warranty
Hikvision DS-7732NI-M4 Specs
General
| Number of Channels | 32 |
| Playback Resolution | HDMI (Output 1): 7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz HDMI (Output 2): 3840 x 2160 at 60 Hz VGA: 1920 x 1080 at 60 Hz Analog, NTSC: 704 x 480 Analog, PAL: 704 x 576 |
| Recording Resolution | 1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP, 24 MP, 32 MP |
| Throughput | 320 Mb/s (Incoming) 400 Mb/s (Outgoing) |
| IP Camera Support | 32 |
| Decoding Resolution | 2 Channels: 32 MP, 24 MP at 30 fps 4 Channels: 12 MP at 20 fps 8 Channels: 8 MP at 25 fps 16 Channels: 4 MP at 30 fps 32 Channels: 1080p at 30 fps |
| 2-Way Audio | Yes |
Connectivity
| A/V I/O | 2 x HDMI Output 1 x VGA Output 1 x BNC Output (1 V p-p, 75 Ohm) 1 x RCA Audio Output (1 Kilohm, Linear) 1 x RCA Audio Input (2 V p-p, 1 Kilohm) |
| Communication Inputs/Outputs | 2 x RJ45 Gigabit Ethernet 1 x USB-A 3.0 / 3.1/3.2 Gen 1 2 x USB-A 2.0 2 x RS-485 (Half-Duplex) 1 x RS-232 |
| Audio Inputs/Outputs | 1 Input 1 Output |
| System Connection | 4 x SATA 1 x eSATA |
| Wi-Fi | None |
| Bluetooth | None |
| Remote Connections | 128 |
| Network Protocols | DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, UPnP, iSCSI |
Compatibility
| Supported Video Codecs | H.264, H.264+, H.265, H.265+ |
| Supported Audio Codecs | AAC, G.711A, G.711U, G.722, G.726, MP2L2 |
Computing
| Optical Drive | None |
System
| Installed Drive | None |
| Max Capacity Supported | 14 TB (Each Drive) 56 TB (Total) |
| Number of Bays | 4 x Internal |
| RAID | None |
Software System Requirements
| OS Compatibility | Android iOS Windows macOS *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible | Yes: Android & iOS App Name: Hik-Connect *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Notifications
| Alarm Inputs/Outputs | 16 Inputs 9 Output |
| Event Trigger | Analytics |
System Functions
| Recording Modes | Alarm, Analytics |
| Dual Streaming | Yes |
| Fisheye Dewarping | None |
Electrical
| Power Consumption | 15 W (Without HDD) |
| Power Supply Type | External |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 VDC at 1 A |
Environmental
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
Physical
| Built-In Display | None |
| Certifications | CE, FCC *as per Manufacturer |
| LED Indicators | Yes |
| Rack Form Factor | 1.5 RU |
| Dimensions (W x D x H) | 17.5 x 15.7 x 3.0" / 445.0 x 400.0 x 75.0 mm |
| Weight | 11 lb / 5 kg (Without HDD) |
Packaging Info
| Package Weight | 12.495 lb |
| Box Dimensions (LxWxH) | 19.9 x 19.6 x 6.5" |
