Description

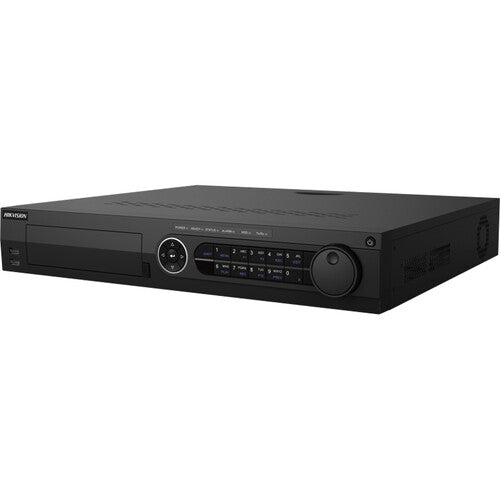

Hikvision IDS-7332HUHI-M4/S Overview
Record from and manage up to 32 analog cameras at resolutions up to 8MP with the iDS-7332HUHI-M4/S TurboHD 32-Channel 8MP Analog HD DVR (No HDD) from Hikvision. Additionally, this DVR supports up to 32 IP cameras. It is equipped with four SATA ports that each supports HDD storage up to 12TB for a total capacity of 48TB (HDDs available separately). H.265+/H.264+ and H.265/H.264 video compressions keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
This DVR features 128 remote connections. It has a VGA and two HDMI video outputs to connect to external monitors.
HD-TVI, AHD, HD-CVI, CVBS, and IP video inputs
Full channel recording at up to 8MP resolution
Simultaneous HDMI 1 and VGA output
HDMI 2 output up to 4K UHD
Dual stream support
H.265+/H.264+ and H.265/H.264 video compressions
POS triggered recording and POS information overlay
Hik-Connect and DDNS for easy network management
Output bandwidth limit configurable
16-channel synchronous playback support
UPC: 842571147056
In the Box
- Hikvision iDS-7332HUHI-M4/S TurboHD 32-Channel 8MP Analog HD DVR (No HDD)
- Limited 3-Year Manufacturer Warranty
Hikvision IDS-7332HUHI-M4/S Specs
General
| Signal | AHD, Analog, HD-CVI, HD-TVI, IP |
| Number of Channels | 32 |
| Playback Resolution | HDMI (Output 1): 1080p at 60 Hz HDMI (Output 2): 4K UHD at 30 Hz 4 MP at 60 Hz VGA: 1080p at 60 Hz CVBS: 704 x 480 (NTSC) 704 x 576 (PAL) |
| Recording Resolution | 8 MP, 12 MP |
| Bit Rate | 32 kb/s to 10 Mb/s (Video) |
| IP Camera Support | 32 |
| Dual Streaming | Yes |
| Encoding Resolution | Main: 1080p, 720p, 4CIF, CIF, VGA, WD1, 3 MP, 4 MP, 5 MP, 8 MP Sub Stream: 4CIF, CIF, WD1 |
| Decoding Resolution | 32 Channels: 1080p at 30 fps |
| 2-Way Audio | Yes |
Connectivity
| A/V Inputs/Outputs | AHD, Analog, CVBS, Coaxitron, HD-CVI, HD-TVI: 32 x BNC (1 V p-p, 75 Ohm) CVBS: 1 x BNC (1 V p-p, 75 Ohm) 2 x HDMI 1 x VGA 4 x RCA Audio Input (2 V p-p, 1 Kilohm) 1 x RCA Audio Output (1 Ohm, Linear) |
| Communication Inputs/Outputs | 2 x RJ45 Gigabit Ethernet 1 x RS-485 (Full-Duplex) 1 x RS-232 2 x USB-A 2.0 1 x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Audio Inputs/Outputs | 4 Inputs 1 Output |
| System Connection | 4 x SATA 1 x eSATA |
| Wi-Fi | None |
| Remote Connections | 128 |
| Network Protocols | DDNS, DHCP, DNS, HTTPS, Hik-Connect, NFS, NTP, ONVIF, PPPoE, SADP, SNMP, TCP/IP, UPnP, iSCSI |
| Network Bandwidth | 320 Mb/s |
| Max Frame Rate | 30 fps (1080p) |
Compatibility
| Supported Video Codecs | H.264, H.264+, H.265, H.265+ |
| Supported Audio Codecs | G.711U |
System
| Installed Drive | None |
| Max Capacity Supported | 12 TB (Each Drive) 48 TB (Total) |
| RAID | RAID 0, 1, 10, 5, 6 |
| OS Compatibility | Android iOS Windows macOS *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Notifications
| Alarm Inputs/Outputs | 16 Inputs 4 Outputs |
Electrical
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Without HDD: 55 W |
Environmental
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
Physical
| Built-In Display | None |
| Dimensions (W x D x H) | 17.5 x 15.7 x 2.8" / 445.0 x 400.0 x 71.0 mm |
| Weight | 15.4 lb / 7 kg (Without HDD) |
Packaging Info
| Package Weight | 15.025 lb |
| Box Dimensions (LxWxH) | 20 x 19.5 x 7.3" |
