Description

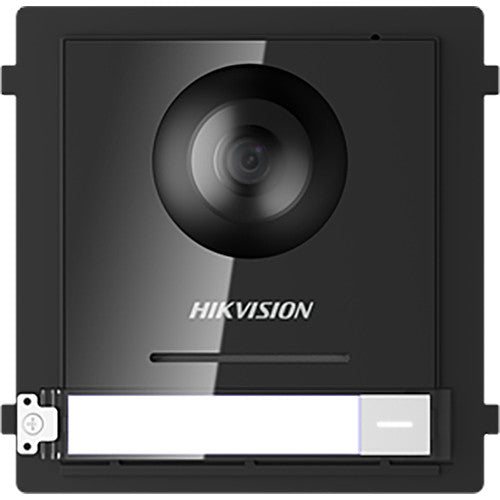

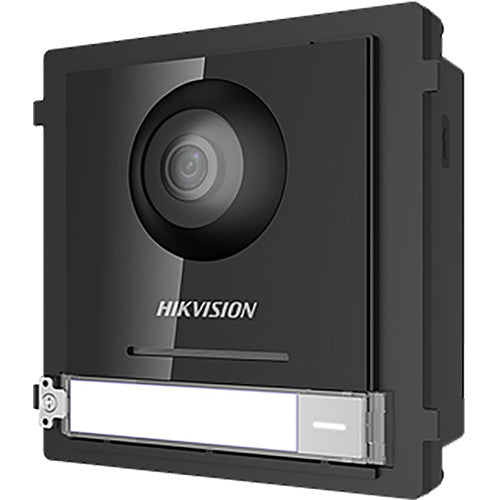

Hikvision DS-KD8003-IME1 Overview
The DS-KD8003-IME1 Video Intercom Module Door Station from Hikvision combines video intercom and access control functionality in one unit. It has a built-in omnidirectional microphone and speaker with noise suppression and echo cancellation for two-way audio. An integrated fisheye camera equipped with a CMOS sensor captures 1920 x 1080 resolution video from a 180° horizontal field of view. An IR supplement provides illumination for low-light conditions.
A surface or flush mount enclosure is required for installation (available separately). This device is IP65 rated when mounted.
Provides video intercom and access control functionality
Embedded MCU processor and Linux OS
Simple operation via physical button
Integrated 2MP fisheye camera
IR supplement for low-light illumination
Image enhancements include backlight compensation, digital noise reduction, and wide dynamic range
Noise suppression and echo cancellation for clear sound
H.264 video compression
100M self-adaptive Ethernet
Tampering alarm
Name tag customization
Supports sub-module access (eight maximum)
ONVIF compliant
FCC, CE, and cUL certified
UPC: 842571124750
In the Box
- Hikvision DS-KD8003-IME1 Video Intercom Module Door Station
- Limited 3-Year Warranty
Hikvision DS-KD8003-IME1 Specs
System
| Processor | Embedded MCU |
| Operating System | Embedded Linux |
| Operation Method | Physical Button |
Video
| Image Sensor | 2 MP CMOS Sensor |
| Video Compression | H.264 |
| Resolution | Main Stream: 1920 x 1080 Sub Stream: 720 x 480 |
| Image Enhancement | BLC, DNR, WDR |
| Anti-Flicker | 50/60 Hz |
| Field of View | Horizontal: 180° Vertical: 96° |
Audio
| Audio Input | Built-In Omnidirectional Microphone |
| Audio Output | Built-In Omnidirectional Loudspeaker (>85 dB within 7.9" / 20 cm) |
| Compression | G.711 U |
| Compression Rate | 64 kb/s |
| Audio Quality | Noise Suppression and Echo Cancellation |
IR Illuminator
| IR Illumination | IR Supplement |
Network
| Ethernet | 100M Self-Adaptive Ethernet |
| Network Protocols | TCP/IP, RTSP |
Alarm
| Tamper Alarm | 1 |
Interfaces
| Connectors | 1 x Module 4 x I/O 1 x Debug 2 x Relay(30 V, 1 A) |
General
| Power Supply | 12 VDC, PoE IEEE 802.3af |
| Power Consumption | ?10 W |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 10 to 95% Non-Condensing |
| IP Rating | IP65 (When Mounted in Enclosure) |
| Certifications | FCC, CE, cUL |
| Dimensions | 3.86 x 3.93 x 1.73" / 98.0 x 99.8 x 43.9 mm |
Packaging Info
| Package Weight | 1.18 lb |
| Box Dimensions (LxWxH) | 6.2 x 6.2 x 3.4" |
