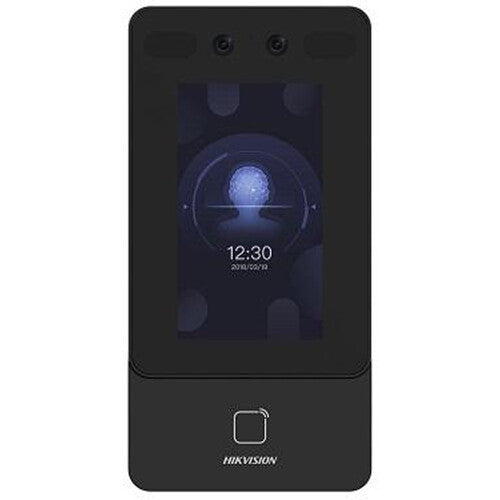

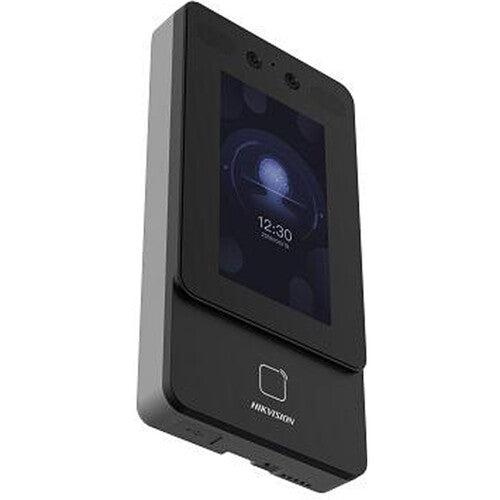

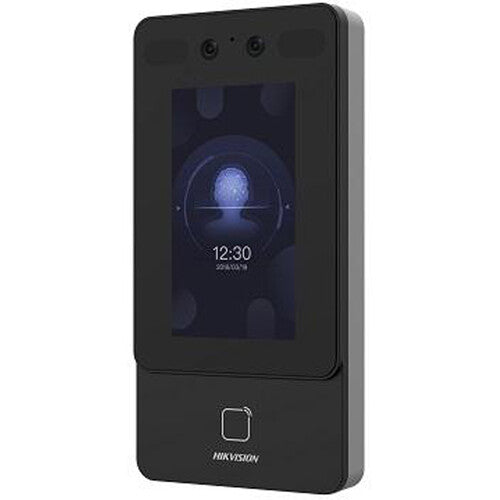

Hikvision DS-K1T342DWX Overview
Implement contactless facial recognition and card reading in your access control system with the DS-K1T342DWX Face Recognition Terminal from Hikvision. This unit provides facial recognition of up to 1500 users to deliver biometric authentication and access control. Additionally, it has card-reading capacity of up to 3000 MIFARE cards, along with a 150,000 event capacity. A built-in 4.3" LCD touchscreen displays information and provides a user interface for operation.
This device is housed in an IP65-rated enclosure for protection from water and dust.
In the Box
- Hikvision DS-K1T342DWX Face Recognition Terminal
- Limited 3-Year Manufacturer Warranty
Hikvision DS-K1T342DWX Specs
General
Compatibility |
MIFARE Cards Select Access Control Devices |
Display
Panel Type |
LCD |
Size |
4.3" |
Resolution |
272 x 480 |
Touchscreen |
Yes |
Power
Power Source |
AC Input |
DC Input Power |
12 to 24 VDC at 1 A |
Operating Current |
1 A |
Environmental
IP Rating |
IP65 |
Operating Temperature |
-22 to 140°F / -30 to 60°C |
Operating Humidity |
0 to 90% (Non-Condensing) |
Physical
Mounting |
1 x Wall |
Color |
Black |
Cable Length |
Not Specified by Manufacturer |
Dimensions |
7.1 x 3.6 x 1" / 181.3 x 91.3 x 24.5 mm |
Weight |
Not Specified by Manufacturer |
Packaging Info
Package Weight |
1.88 lb |
Box Dimensions (LxWxH) |
12.9 x 5.3 x 3.4" |
