Description
Hikvision DS-7604NI-Q1 Overview

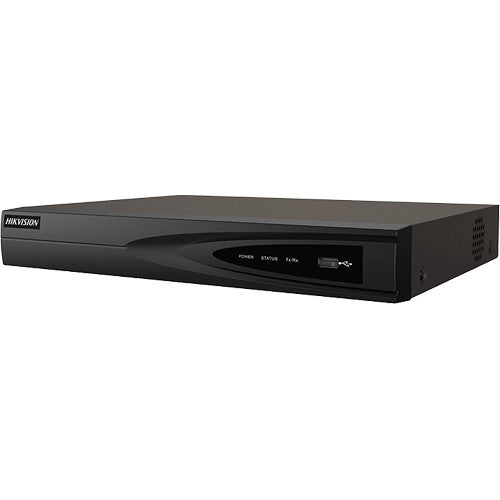

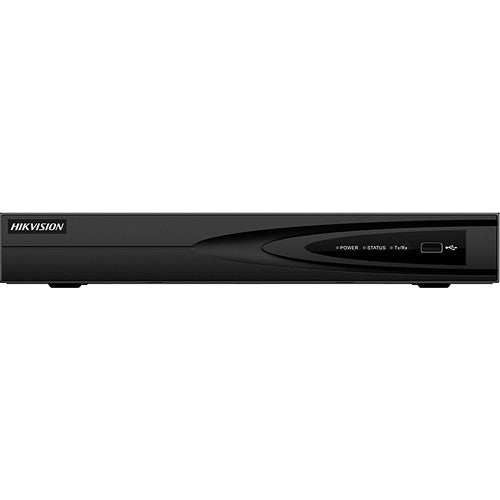

Record from and manage up to four cameras with the DS-7604NI-Q1/4P 4-Channel 4K UHD NVR with 1TB HDD from Hikvision . Preinstalled with 1TB of HDD storage, the recorder can be expanded to host one HDD for a maximum internal capacity of 8TB. H.265, H.265+, H.264, and H.264+ compressions keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
This NVR has simultaneous HDMI and VGA video outputs. Hik-Connect enables seamless network management.
Plug-and-play operation
Four PoE ports
Compatible with Hikvision and third-party IP cameras
Long distance network transmission via PoE up to 984'
Two USB 2.0 ports
1000M self-adaptive Ethernet port
4K UHD HDMI video output
Simultaneous HDMI and VGA outputs
40 Mb/s incoming and 80 Mb/s outgoing bandwidth
Smart search and playback
Supports VCA detection alarm
ONVIF compliant
CSA, FCC, CE, and cUL certified
In the Box
- Hikvision DS-7604NI-Q1/4P 4-Channel 4K UHD PoE NVR with 1TB HDD
- Limited 3-Year Warranty
Hikvision DS-7604NI-Q1 Specs
Audio/Video Inputs/Outputs
| IP Video Inputs | 4 Up to 8 MP Resolution |
| HDMI Interface | 1 |
| VGA Interface | 1 |
| Recording Resolutions | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI Output Resolution | 30 Hz: 3840 x 2160 60 Hz: 1920 x 1080p, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 |
| VGA Output Resolution | 60 Hz: 1920 x 1080p, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Two-Way Audio | 1 x RCA Input (2.0 V p-p, 1 kOhm) 1 x RCA Output (Linear, 1 kOhm) |
Decoding and Playback
| Decoding Formats | H.265, H.265+, H.264, H.264+, MPEG-4 |
| Live View / Playback Resolutions | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback | 4 Channels |
| Capability | 1 Channel at 8 MP 4 Channels at 1080p |
Network
| Bandwidth | Incoming: 40 Mb/s Outgoing: 80 Mb/s |
| Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
HDD
| HDD Capacity | 1 x SATA Port (8 TB Capacity) |
| HDD Included | 1 TB Preinstalled |
Interface
| Network Interface | 1 x RJ45 1000M Self-Adaptive Ethernet |
| USB Interface | 2 x USB 2.0 |
| PoE Interface | 4 x RJ45 100M Self-Adaptive Ethernet (?30 W, IEEE 802.3af/at) |
General
| Power Supply | 48 VDC |
| Power | ?65 W |
| Power Consumption | ?10 W (without Enabling PoE) |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% Humidity (Non-Condensing) |
| Chassis | 1 RU |
| Dimensions (W x D x H) | 12.4 x 9.4 x 1.9" / 315 x 240 x 48 mm |
| Weight | 2.2 lb / ?1 kg (Without HDD) |
