Description

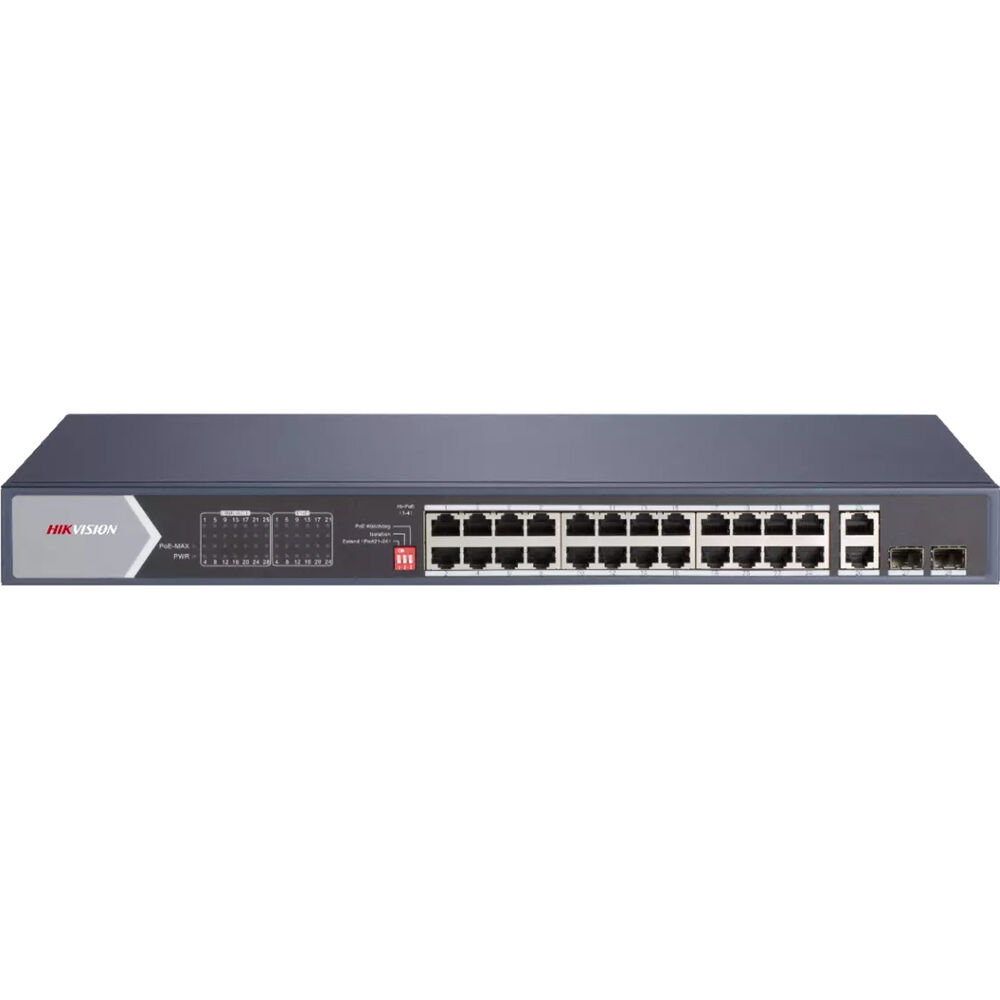

Hikvision DS-3E0528HP-E Overview
- 1Description
- 2Smooth Performance
- 3PoE Watchdog
- 4Extended Range
- 5Port Isolation
- 6Silent Design
Quickly add support for powered devices such as advanced access points, IP security cameras, and VoIP phones by integrating the DS-3E0528HP-E 24-Port Gigabit PoE+ / PoE 4 Compliant Gigabit Unmanaged Switch from Hikvision into your business's network. Built for ease of use, this rack mountable switch features 24 Gigabit Ethernet ports, 20 of which support 30W PoE+ while the other four support 90W. Two Gigabit Ethernet RJ45 uplink ports are also available alongside two Gigabit SFP ports for fiber connections. With a plug-and-play design and total power budget of 370W, all you need to do is connect your compatible devices. No complicated management is required.
Smooth Performance
A 56 Gb/s switching capacity and a 41.66 Mpps forwarding rate help to ensure fast and reliable data transfers.
PoE Watchdog
This switch automatically detects and restarts unresponsive cameras.
Extended Range
Configure the DIP switches to enable extended mode, which can transfer data at up to 10 Mb/s over a 984.25' range using select ports.
Port Isolation
Separating data traffic between different ports helps to enhance network security.
Silent Design
The metal enclosure provides silent cooling, maintaining optimal performance without disturbing the environment.
UPC: 842571148282
In the Box
- Hikvision DS-3E0528HP-E 24-Port Gigabit PoE+ / PoE 4 Compliant Unmanaged Network Switch
- Power Cable
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Smooth Performance
- PoE Watchdog
- Extended Range
- Port Isolation
- Silent Design
Hikvision DS-3E0528HP-E Specs
Key Specs
| Inputs/Outputs |
20 x RJ45 Gigabit Ethernet PoE+
4 x RJ45 Gigabit Ethernet PoE++ (Type 4) 2 x RJ45 Gigabit Ethernet 2 x SFP Gigabit Ethernet |
| PoE Power Budget |
370 W
|
Interfaces
| Inputs/Outputs |
20 x RJ45 Gigabit Ethernet PoE+
4 x RJ45 Gigabit Ethernet PoE++ (Type 4) 2 x RJ45 Gigabit Ethernet 2 x SFP Gigabit Ethernet |
Protocols
| Supported Protocols |
Auto-MDIX/MDI
|
| Transmission Method |
Store-and-Forward
|
| MAC Address Table Size |
8K
|
Standards
| Supported IEEE Standards |
802.3, 802.3ab, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3u, 802.3x, 802.3z
|
Performance
| Forwarding Rate |
41.66 Mpps
|
| Switching Bandwidth |
56 Gb/s
|
| Packet Buffer |
4.1 Mb
|
Electrical
| Power Draw |
400.00 W (Max)
30.00 W (Idle) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 6.5 A
|
| PoE Power Budget |
370 W
|
| Power Supply Type |
Internal
|
Environmental
| Operating Temperature |
50 to 131°F / 10 to 55°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-40 to 185°F / -40 to 85°C
|
| Storage Humidity |
5 to 95%
|
General
| Certifications |
No
|
| Cooling System |
Passive
|
| Material of Construction |
Metal
|
| Rack Form Factor |
1 RU
|
| Dimensions |
17.3 x 8.7 x 1.7" / 440 x 220.8 x 44 mm
|
| Weight |
6.57 lb / 2.98 kg
|
Packaging Info
| Package Weight |
8.005 lb
|
| Box Dimensions (LxWxH) |
21.1 x 13.2 x 3.4"
|
