Hikvision DS-3E0510P-E Overview
-
1Description
-
2Growing Your Network
-
3Powering Your Devices
-
4Plug-and-Play Design

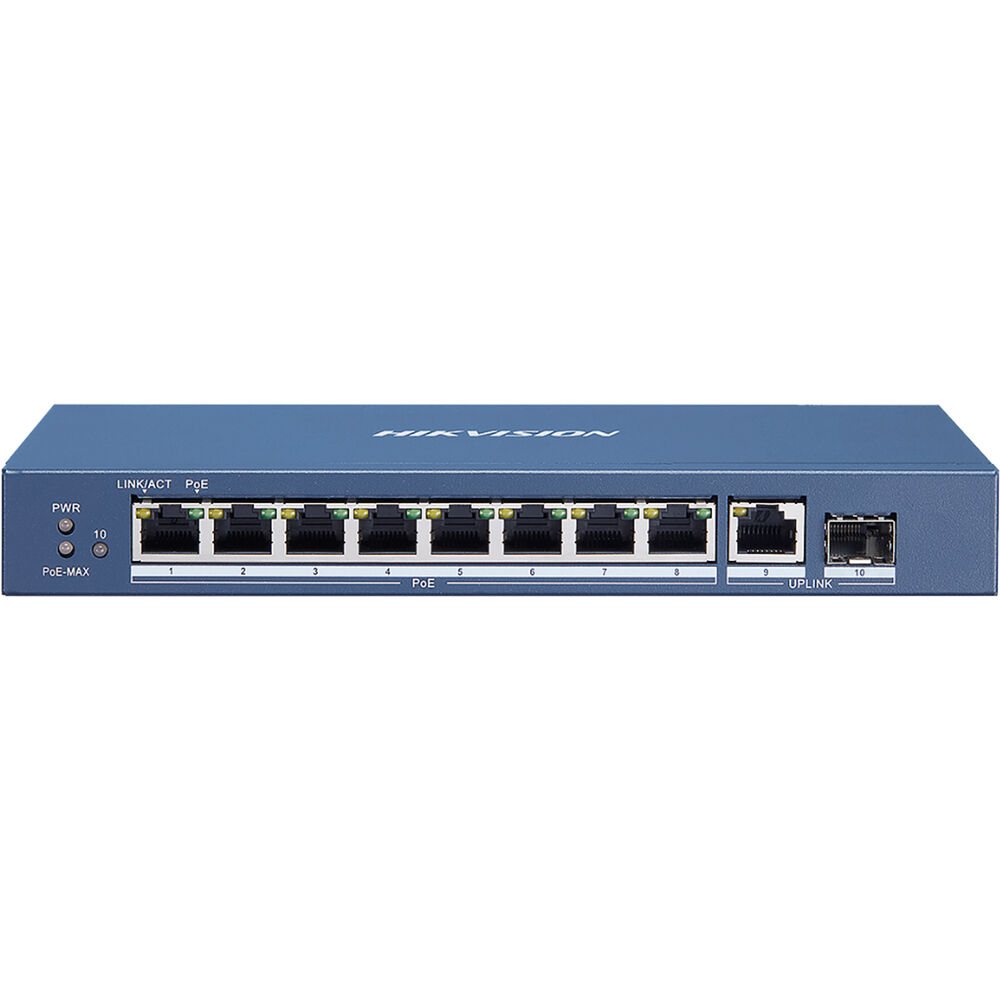

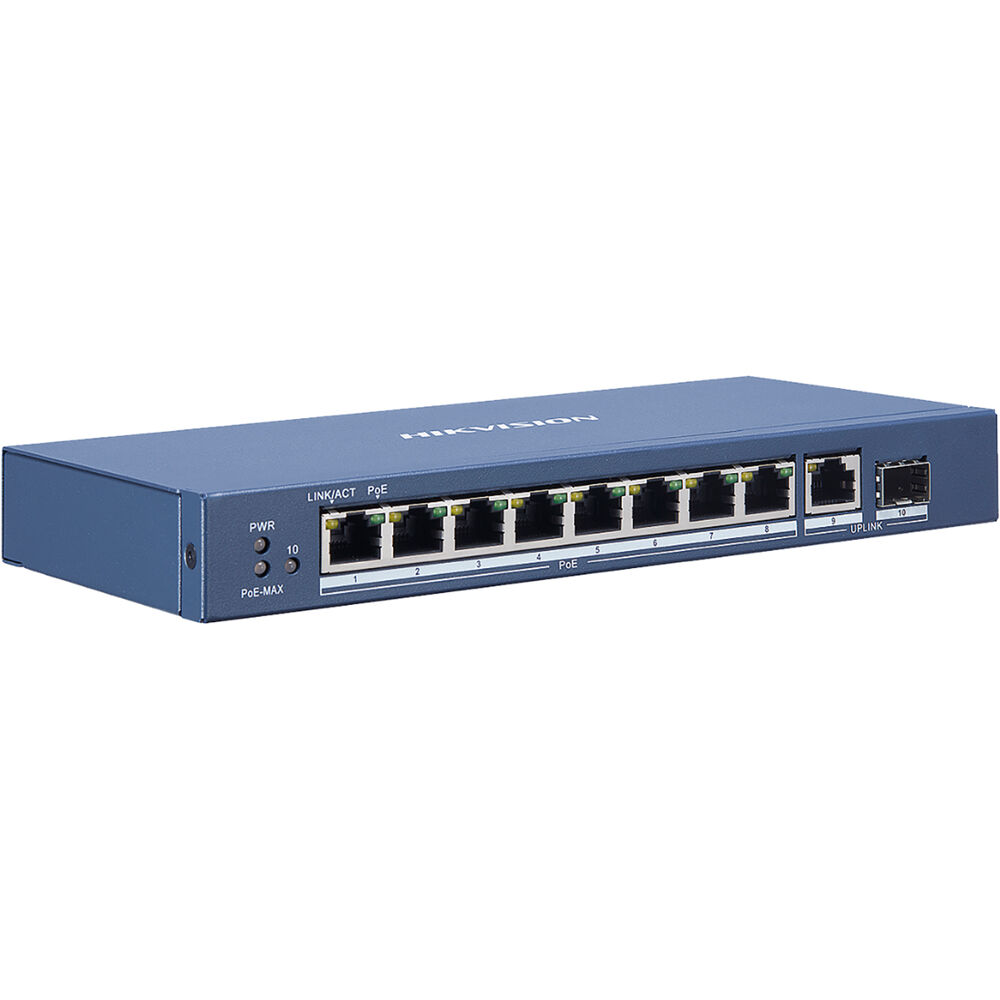

Expand your network capacity using the DS-3E0510P-E 8-Port Gigabit PoE-Compliant Unmanaged Network Switch from Hikvision. This plug-and-play unmanaged switch doesn't require any additional setup or configuration. It features eight PoE-compliant Gigabit Ethernet ports to connect surveillance cameras and other powered network devices in addition to a Gigabit RJ45 uplink port for expansion. The switch has a 20 Gb/s non-blocking switching capacity and a forwarding capacity of 14.88 Mbps. It also delivers up to 30W per port and up to 6kV surge protection with a total power budget of 110W. With its metal construction and fanless design, the DS-3E0510P-E operates silently on your desktop.
The DS-3E0510P-E switch includes eight Gigabit PoE-compliant Ethernet ports and one Gigabit RJ45 uplink port.
This switch has a 110W power budget, delivering up to 30W per port and 6kV surge protection.
The DS-3E0510P-E unmanaged switch does not require any additional configuration after being installed onto your network.
In the Box
- Hikvision DS-3E0510P-E 8-Port Gigabit PoE-Compliant Unmanaged Network Switch
- Power Cord
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Growing Your Network
- Powering Your Devices
- Plug-and-Play Design
Hikvision DS-3E0510P-E Specs
Interfaces
| Inputs/Outputs |
8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink)
1 x 10/100/1000 Mb/s Gigabit SFP |
Protocols
| Supported Protocols |
Auto-MDIX/MDI |
| Transmission Method |
Store-and-Forward |
| MAC Address Table Size |
4K |
Standards
| Supported IEEE Standards |
802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z |
Performance
| Forwarding Rate |
14.88 Mpps |
| Switching Bandwidth |
20 Gb/s |
| Packet Buffer |
1.5 Mb |
Electrical
| Power Draw |
120.00 W (Max) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 6.5 A |
| PoE Power Budget |
110 W |
| PoE per Port |
30 W |
| Power Supply Type |
Internal |
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C |
| Operating Humidity |
5 to 95% |
| Storage Temperature |
-40 to 185°F / -40 to 85°C |
| Storage Humidity |
5 to 95% |
General
| Cooling System |
Passive |
| Material of Construction |
Metal |
| Indicator Lights |
Activity, Link/Activity, PoE, Power |
Packaging Info
| Package Weight |
2.85 lb |
| Box Dimensions (LxWxH) |
10.5 x 5.5 x 3.7" |
