Description
Hikvision DS-3E0510HP-E Overview
- 1Description
- 2Smooth Performance
- 3PoE Watchdog
- 4Extended Range
- 5Port Isolation
- 6Silent Design

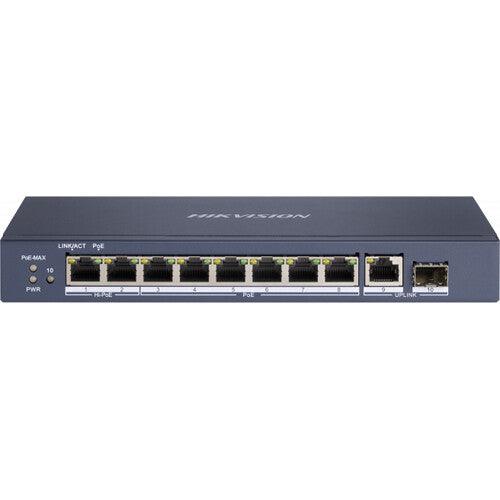

Quickly add support for powered devices such as advanced access points, IP security cameras, and VoIP phones by integrating the DS-3E0510HP-E 8-Port Gigabit PoE+ / PoE 4 Compliant Unmanaged Network Switch from Hikvision into your business's network. Built for ease of use, this rack mountable switch features eight Gigabit Ethernet ports, six of which support 30W PoE+ while the other two support 90W. A Gigabit Ethernet RJ45 uplink port is also available alongside one Gigabit SFP port for fiber connections. With a plug-and-play design and total power budget of 110W, all you need to do is connect your compatible devices. No complicated management is required.
Smooth Performance
A 20 Gb/s switching capacity and a 14.88 Mpps forwarding rate help to ensure fast and reliable data transfers.
PoE Watchdog
This switch automatically detects and restarts unresponsive cameras.
Extended Range
Enable extended mode to transfer data at up to 10 Mb/s over a 984.25' range using select ports.
Port Isolation
Separating data traffic between different ports helps to enhance network security.
Silent Design
The metal enclosure provides silent cooling, maintaining optimal performance without disturbing the environment.
UPC: 842571148268
In the Box
- Hikvision DS-3E0510HP-E 8-Port Gigabit PoE+ / PoE 4 Compliant Unmanaged Network Switch
- Power Cable
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Smooth Performance
- PoE Watchdog
- Extended Range
- Port Isolation
- Silent Design
Hikvision DS-3E0510HP-E Specs
| Wi-Fi | None |
| Inputs/Outputs | 6 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 4) 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 1 x 10/100/1000 Mb/s Gigabit SFP (Uplink) |
Protocols
| Supported Protocols | Auto-MDIX/MDI |
| Transmission Method | Store-and-Forward |
| MAC Address Table Size | 4K |
Standards
| Supported IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3at, 802.3bt, 802.3u, 802.3x, 802.3z |
Performance
| Forwarding Rate | 14.88 Mpps |
| Switching Bandwidth | 20 Gb/s |
Electrical
| Power Draw | 120.00 W (Max) 10.00 W (Idle) |
| DC Input Power | 54 VDC at 2.22 A |
| AC Input Power | None |
| PoE Power Budget | 110 W |
| Power Supply Type | External |
Environmental
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Operating Humidity | 5 to 95% (Non-Condensing) |
| Storage Temperature | -40 to 185°F / -40 to 85°C |
| Storage Humidity | 5 to 95% (Non-Condensing) |
General
| Certifications | FCC, CE, EN, RCM, UL, CB, RoHS, WEEE, REACH *as per Manufacturer |
| Cooling System | Passive |
| Material of Construction | Metal |
| Dimensions | 8.6 x 4.27 x 1.1" / 217.6 x 108.55 x 27.8 mm |
| Weight | 1.3 lb / 0.6 kg |
