Description

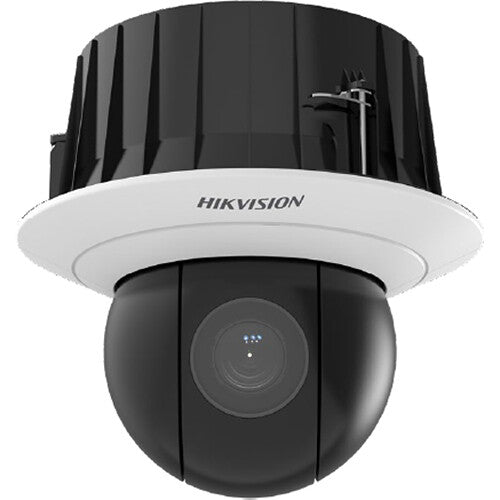

Hikvision DS-2DF6A832X-DE3 Overview
Monitor a room or hallway with the DS-2DF6A832X-DE3 8MP PTZ Network Dome Camera from Hikvision. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 24 fps. A 6.7-214.4mm varifocal lens delivers a 56.6 to 2° horizontal field of view. The camera features endless panning, a -20 to 90° tilt range, and 32x optical zoom. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Compliance with ONVIF profiles G, S, and T enables interoperability with a wide range of surveillance devices.
DarkFighter technology for visibility in low-light conditions
IR cut filter for day and night functionality
H.265+, H.265, H.264+, H.264, and MJPEG video compressions
Scalable Video Coding (SVC)
Triple streaming
140 dB wide dynamic range
Auto, semi-auto, and manual focus modes
Regional exposure and focus
Automatic gain control
3D-DNR, backlight compensation, and highlight compensation
24 privacy masks (polygon region, mosaic mask, and mask color configurable)
Smart Features include; face capture, motion detection, video tampering alarm, alarm input and output, unattended baggage detection, object removal detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection, smart tracking, smart record, and alarm linkage
7 x alarm inputs and 2 x alarm outputs
Audio input and output
100M RJ45 port
Self-adaptive RS-485 port with support for HIKVISION, Pelco P, and Pelco D protocols
Up to 32 users with 3 host levels (admin, operator, and user)
Up to 20 channels in simultaneous live view
Compatible with Internet Explorer 11, Chrome 57 or higher, Firefox 52 or higher, and Safari 11 or higher, iVMS-4200, Hik-Connect, HikCentral, iOS, and Android
Lightning, surge, and voltage transient protection
PTZ Functions
Endless panning
540°/s preset pan speed
0.1 to 300°/s configurable pan speed
-20 to 90° tilt range (auto flip)
400°/s preset tilt speed
0.1 to 240°/s configurable tilt speed
32x optical zoom
16x digital zoom
Zoom speed of 4.5 seconds
Proportional zoom
300 presets
8 patrols
4 pattern scans
Support for power-off memory, 3D positioning, PTZ status display, and preset freezing
Park action includes; preset, pattern scan, auto scan, tilt scan, random scan, frame scan, and panorama scan
Scheduled task includes; preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, and aux output
DORI Ranges (Tele)
8826' detection range
3501' observation range
1765' recognition range
883' identification range
Hikvision DS-2DF6A832X-DE3 Specs
Camera
| Sensor | 8 MP 1/1.8" CMOS |
| Focal Length | 6.7 to 214.4mm |
| Maximum Aperture | f/1.5 |
| Zoom | Optical: 32x Digital: 16x |
| Lens Field of View | Horizontal: 56.6 to 2° Vertical: 33.7 to 1.2° Diagonal: 63.4 to 2.3° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.002 Lux B&W: 0.0002 Lux |
| Shutter Speed | 1/30000 to 1 Seconds |
Video
| Streaming Resolution | 3840 x 2160 at 24 fps |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
Audio
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM |
Pan & Tilt
| Supported Control Protocols | Pelco-D Pelco-P RS-485 |
| Pan/Tilt | Programmed Pan: 360° at 540°/s Programmed Tilt: 110° (-20 to 90°) at 400°/s |
Networking
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T, ISAPI, SDK |
| Analytics | Face Capture, Motion Detection, Video Tampering Alarm, Alarm Input & Output, Unattended Baggage Detection, Object Removal Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection, Smart Tracking (Manual & Event) |
| OS Compatibility | Android iOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger | No |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 7 / 2 |
Hardware
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
Power
| Power Source | DC, PoE 802.3af (15 W) |
Environmental
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
General
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x Serial 9-Pin (RS-485) |
| Video Management Software | iVMS-4200, Hik-Connect, HikCentral |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Dimensions | ø: 11.4 x H: 10.8" / ø: 290.0 x H: 274.8 mm |
| Weight | 8.4 lb / 3.8 kg |
