Description

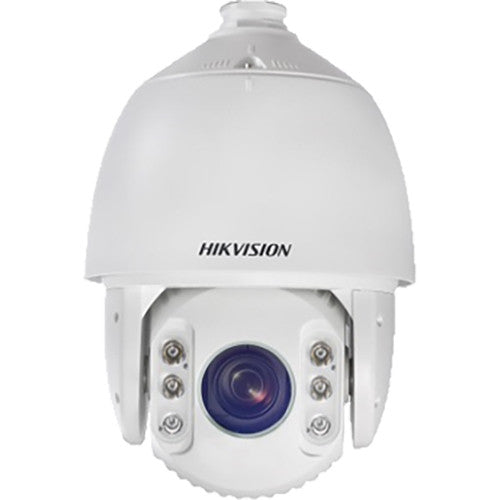

Hikvision DS-2AE7232TI-A Overview
The DS-2AE7232TI-A TurboHD 2MP Outdoor PTZ Dome Camera from Hikvision uses a 1/2.8" progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 490' of illumination in low-light conditions. The 4.8-153mm varifocal lens delivers a 54.2 to 1.97° horizontal field of view. The camera features endless panning, a -15 to 90° tilt range, and 32x optical zoom. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported. UTC (Up-the-Coax) protocol enables OSD menu control.
This PTZ camera is housed in an IP66-rated enclosure that is suitable for outdoor use.
IR cut filter for day and night functionality
16x digital zoom
Zoom speed of 3.5 seconds
0.4 to 59" minimum working distance
3D intelligent positioning
White balance settings include auto, manual, ATW, indoor, and outdoor
Automatic gain control
3D-DNR
?120 dB wide dynamic range
Eight programmable privacy masks
Backlight compensation, highlight compensation, electric image stabilization, and regional focus
RS-485 interface
CSA, FCC, CE, and cUL certified
TVS 4000V lightning, surge, and voltage transient protection
PTZ Functions
- Endless panning
- 0.1 to 160°/s configurable pan speed
- 160°/s preset pan speed
- -15 to 90° tilt range (auto flip)
- 0.1 to 120°/s configurable tilt speed
- 120°/s preset tilt speed
- 256 presets
- 10 patrols (up to 32 presets per patrol)
- 5 patterns (total recording time no less than 10 minutes
- Support for proportional zoom, power-off memory, PTZ position display, and preset freezing
- Park actions include preset, patrol, pattern, pan scan, tilt scan, panorama scan, day mode, and night mode
- Scheduled task includes preset, patrol, pattern, pan scan, tilt scan, panorama scan, day mode, night mode, and zero calibration
UPC: 842571115727
Hikvision DS-2AE7232TI-A Specs
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS Sensor |
| Maximum Image Resolution | 1920 x 1080 |
| Frame Rate | 30 fps |
| Minimum Illumination | Color: 0.005 Lux at f/1.2 with AGC B&W: 0.001 Lux at f/1.2 with AGC |
| White Balance | Auto, Manual, ATW, Indoor, Outdoor |
| Automatic Gain Control | Auto, Manual |
| Digital Noise Reduction | 3D-DNR |
| Wide Dynamic Range | ?120 dB |
| Shutter Speed | 1/10,000 to 1 Second |
| Day/Night | IR Cut Filter |
| IR Range | 490' / 150 m |
| IR Intensity | Automatically Adjusted Depending on Zoom Ratio |
| Digital Zoom | 16x |
| Privacy Masking | Eight Programmable Privacy Masks |
| BLC | Supported |
| HLC | Supported |
| EIS | Supported |
| Regional Focus | Supported |
Lens
| Focus Modes | Auto, Semi-Auto, Manual |
| Focal Length | 4.8-153mm |
| Optical Zoom | 32x |
| Aperture Range | f/1.2 to f/4.4 |
| Field of View | Horizontal: 54.2 to 1.97° |
| Minimum Working Distance | 0.4 to 59" / 10 to 1500 mm |
| Zoom Speed | Approximately 3.5 Seconds (Optical, Wide to Tele) |
PTZ
| Pan Range | 360° Endless |
| Pan Speed | Configurable from 0.1 to 160°/s 160°/s Preset Speed |
| Tilt Range | From -15 to 90° (Auto Flip) |
| Tilt Speed | Configurable from 0.1 to 120°/s 120°/s Preset Speed |
| Proportional Zoom | Rotation Speed Can be Adjusted Automatically According to Zoom Multiples |
| Presets | 256 |
| Patrol | 10 Patrols (Up to 32 Presets for Each Patrol) |
| Pattern | 5 Patterns (Total Recording Time No Less than 10 Minutes) |
| Power-Off Memory | Supported |
| Park Action | Preset, Patrol, Pattern, Pan Scan, Tilt Scan, Panorama Scan, Day Mode, Night Mode, None |
| PTZ Position Display | On, Off |
| Preset Freezing | Supported |
| Scheduled Tasks | Preset, Patrol, Pattern, Pan Scan, Tilt Scan, Panorama Scan, Day Mode, Night Mode, Zero Calibration, None |
Input/Output
| Video Output | Switchable HD-TVI/AHD/HD-CVI/CVBS Video Output (NTSC, BNC) |
| RS-485 | Half-Duplex Mode, Self-Adaptive Hikvision, Pelco P, Pelco D Protocols |
| UTC | UTC Protocol (Hikvision-C Protocol in Previous DVR) |
General
| Power | 24 VAC, Maximum 40 W (54 W with IR) |
| Operating Temperature | -22 to 149°F / -30 to 65°C |
| Operating Humidity | ?90% |
| IP Rating | IP66 |
| Protections | TVS 4000 V Lightning Protection Surge Protection Voltage Transient Protection |
| Dimensions | Ø8.66 x 13.91" / Ø220 x 353.4 mm |
| Weight | 9.92 lb / 4.5 kg |
Packaging Info
| Package Weight | 16.105 lb |
| Box Dimensions (LxWxH) | 19.6 x 11.2 x 11.1" |
